| Place of Origin: | Shandong China |
| Brand Name: | Dallast |
| Certification: | GS CE ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Usage: | Automation And Control | Delivery Time: | 10-20 Days |
|---|---|---|---|
| Seal Kit: | Nok, Hallite, Parker Etc | Structure: | Piston Cylinder Or Telescopic Cylinder |
| Working Medium: | Hydraulic Oil | Honed Tube: | 20-2000 Mm, Heat Treatment |
| Extended Stages: | 3-7 Stages | Piston Rod Chrome Plated: | Cr, Ni, Or Ceramic |
| High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |
||

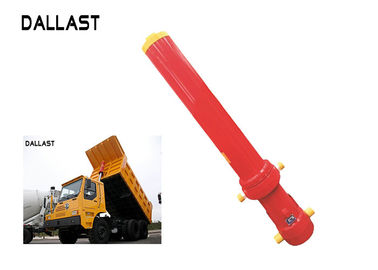

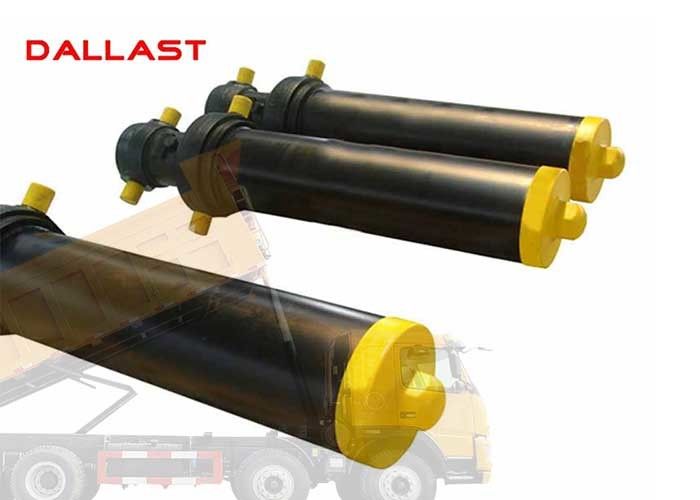

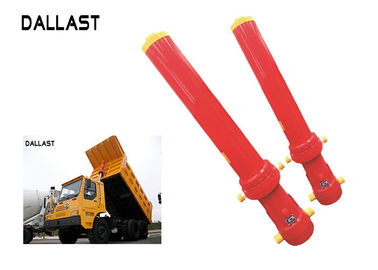

Single Acting Hollow Plunger Hydraulic Cylinder, Dump Truck Front Hydraulic Cylinder
Hydraulic cylinder for dump truck, trail truck, garbage truck, crane
1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
2. Underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.
4. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.
| MODEL NO. | First Stage Diameter | Stroke | Largest Sleeve OD | Closed length |
| FC-3-107-2855 | 107 | 2855 | 152 | 1268 |
| FC-3-107-3115 | 107 | 3115 | 152 | 1368 |
| FC-3-107-3265 | 107 | 3265 | 152 | 1418 |
| FC-3-107-3415 | 107 | 3415 | 152 | 1468 |
| FC-3-107-3715 | 107 | 3715 | 152 | 1568 |
| FC-3-126-3230 | 126 | 3230 | 219 | 1403 |
| FC-3-126-3680 | 126 | 3680 | 219 | 1553 |
| FC-3-126-3830 | 126 | 3830 | 219 | 1603 |
| FC-3-126-4400 | 126 | 4400 | 219 | 1803 |
| FC-4-126-4145 | 126 | 4145 | 219 | 1357 |
| FC-4-126-4345 | 126 | 4345 | 219 | 1407 |
| FC-4-126-4545 | 126 | 4545 | 219 | 1457 |
| FC-4-126-4745 | 126 | 4745 | 219 | 1507 |
| FC-4-126-4945 | 126 | 4945 | 219 | 1557 |
| FC-4-126-5145 | 126 | 5145 | 219 | 1607 |
| FC-3-145-3230 | 145 | 3230 | 219 | 1403 |
| FC-3-145-3680 | 145 | 3680 | 219 | 1553 |
| FC-3-145-3830 | 145 | 3830 | 219 | 1603 |
| FC-4-145-4110 | 145 | 4110 | 219 | 1357 |
| FC-4-145-4310 | 145 | 4310 | 219 | 1407 |
| FC-4-145-4510 | 145 | 4510 | 219 | 1457 |
| FC-4-145-4710 | 145 | 4710 | 219 | 1507 |
| FC-4-145-4910 | 145 | 4910 | 219 | 1557 |
| FC-4-145-5110 | 145 | 5110 | 219 | 1607 |
| FC-4-145-5310 | 145 | 5310 | 219 | 1657 |
| FC-4-145-5865 | 145 | 5865 | 219 | 1807 |
| FC-5-145-4310 | 145 | 4310 | 219 | 1161 |
| FC-4-165-4110 | 165 | 4110 | 244 | 1347 |
| FC-4-165-4510 | 165 | 4510 | 244 | 1447 |
| FC-4-165-4710 | 165 | 4710 | 244 | 1497 |
| FC-4-165-4910 | 165 | 4910 | 244 | 1547 |
| FC-4-165-5110 | 165 | 5110 | 244 | 1597 |
| FC-4-165-5310 | 165 | 5310 | 244 | 1647 |
| FC-4-165-5865 | 165 | 5865 | 244 | 1797 |
| FC-5-165-5135 | 165 | 5135 | 244 | 1351 |
| FC-5-165-5385 | 165 | 5385 | 244 | 1401 |
| FC-5-165-5635 | 165 | 5635 | 244 | 1451 |
| FC-5-165-6135 | 165 | 6135 | 244 | 1551 |
| FC-5-165-6385 | 165 | 6385 | 244 | 1601 |
| FC-5-165-6825 | 165 | 6825 | 244 | 1701 |
| FC-5-165-7075 | 165 | 7075 | 244 | 1751 |
| FC-5-165-7325 | 165 | 7325 | 244 | 1801 |
| FC-5-165-7575 | 165 | 7575 | 244 | 1851 |
| FC-5-165-7825 | 165 | 7825 | 244 | 1901 |
| FC-5-165-8185 | 165 | 8185 | 244 | 2001 |
| FC-5-165-8435 | 165 | 8435 | 244 | 2051 |
| FC-5-187-5135 | 187 | 5135 | 244 | 1351 |
| FC-5-187-5385 | 187 | 5385 | 244 | 1401 |
| FC-5-187-5635 | 187 | 5635 | 244 | 1451 |
| FC-5-187-6135 | 187 | 6135 | 244 | 1551 |
| FC-5-187-6385 | 187 | 6385 | 244 | 1601 |
| FC-5-187-6825 | 187 | 6825 | 244 | 1701 |
| FC-5-187-7075 | 187 | 7075 | 244 | 1751 |
| FC-5-187-7325 | 187 | 7325 | 244 | 1801 |
| FC-5-187-7825 | 187 | 7825 | 244 | 1901 |
| FC-5-187-8185 | 187 | 8185 | 244 | 2001 |
| FC-5-187-8435 | 187 | 8435 | 244 | 2051 |
| FC-5-187-8935 | 187 | 8935 | 244 | 2151 |
| FC-5-187-9185 | 187 | 9185 | 244 | 2201 |
| FC-6-187-8790 | 187 | 8790 | 244 | 1805 |
| FC-6-187-9085 | 187 | 9085 | 244 | 1855 |
| FC-7-187-8535 | 187 | 8535 | 244 | 1559 |
| FC-5-210-6135 | 210 | 6135 | 273 | 1551 |
| FC-5-210-6825 | 210 | 6825 | 273 | 1701 |
| FC-5-210-7075 | 210 | 7075 | 273 | 1751 |
| FC-5-210-7325 | 210 | 7325 | 273 | 1801 |
| FC-5-210-7825 | 210 | 7825 | 273 | 1901 |
| FC-5-210-9185 | 210 | 9185 | 273 | 2201 |
Cylinder Details:
1. Mounting type: turning, flange, earring, according to your demand
2. Seal: use parker, NOK and other famous seal parts to ensure the quality
3. Piston rod: 20#, 45# steel with high frequency quenching
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
5. Bore size: 20-500mm (7/8-20"), stroke can reach to 3000mm
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval
Parameters:
Dallast Technology Co., Ltd hopes to work together with you, developing in parallel!
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1. Bore diameter
2. Piston rod diameter
3. Stroke length
4. Working pressure
5. Mounting method
