16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck

16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck

    • 16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck
    • 16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck
    • 16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck
  • 16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Pressure Environment: Medium Pressure Model No.: Customized
    Test: 100% Test Working Method: Straight Trip
    Delivery Time: 15-25 Days Piston Rod Chrome Plated: Cr, Ni, Or Ceramic
    Working Pressure: 16-32 Mpa Structure: Telescopic Cylinder
    High Light:

    single acting hydraulic ram

    ,

    single acting telescopic hydraulic cylinders

    Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck





    Features:



    Hydraulic cylinder:
    As manufacturer of hydraulic cylinders in China, we own the best technology and apply for 13 national patent about telescopic hydraulic cylinders so our cylinders own a high reputation in international market, our repair rate is less than 1% every year

    We produce it according to ISO 9001:2000
    We can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers

    Cylinder details:

    1. Mounting type: turning, flange, earring, according to your demand
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality
    3. Piston rod: 20#, 45# steel with high frequency quenching
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
    5. Size:
    Bore: 20-500mm (7/8-20"), stroke can reach to 3000mm
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval

    Hydraulic cylinder for engineering
    1. Max stroke: 190" or 5000mm
    2. Max bore inner diameter: 32" or 800mm
    3. Various structure form



    Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.

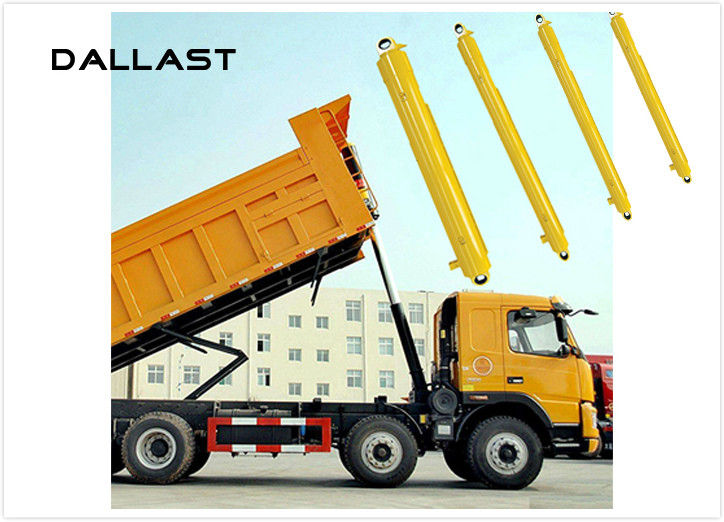

    Side-dumping telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.



    Customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc



    The information about our company:



    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    Parameters:



    Product Series: TG140/175/185
    Model Tipping.Max Press Close.height(mm) Tanker.Vol carriage Rear overhang Lifting.angle
    (T) (MPa) (L) (mm) (degree)
    3TG-E140×4000 24.6 16 1675 50 5200-5400 700mm 48-52
    4TG-E140×4270 24.6 16 1421 55 5400-5600 700mm 48-52
    4TG-E175×4450 38.5 16 1470 81 5600-6000 800 48-52
    4TG-E175×4650 38.5 16 1509 84 6000-6400 800 48-52
    4TG-E175×5000 38.5 16 1597 91 6400-6600 800 48-52
    4TG-E175×5390 38.5 16 1695 98 6600-7000 800 48-52
    4TG-E175×5780 38.5 16 1792 104 7000-7400 800 48-52
    4TG-E175×6000 38.5 16 1851 109 7400-7800 800 48-52
    4TG-E175×6180 38.5 16 1897 112 7800-8000 800 48-52
    4TG-E185×4650 43 16 1509 96 6200-6600 800 48-52
    4TG-E185×5000 43 16 1597 103 6600-6800 800 48-52
    4TG-E185×5390 43 16 1695 111 6800-7200 800 48-52
    4TG-E185×5780 43 16 1792 119 7200-7600 800 48-52
    4TG-E185×6000 43 16 1851 123 7600-8000 800 48-52
    4TG-E185×6180 43 16 1897 127 8000-8500 800 48-52



    Product Show:

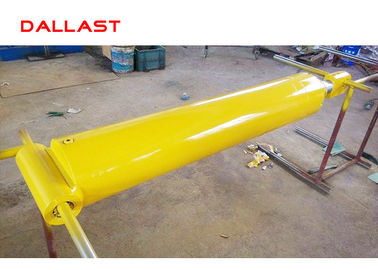

    16-32 Mpa Single Acting Hydraulic Cylinder for Agricultural Machine / Farm Truck
