|Place of Origin:||Shandong China|
|Certification:||GS CE ISO9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Heat Treatment::||Quenching||Maximum Stroke:||Requirements|
|Structure:||Cushioned Cylinder||Material:||Hard Chrome Piston Rod|
|Place Of Origin:||Shandong||Factory Visit:||Available|

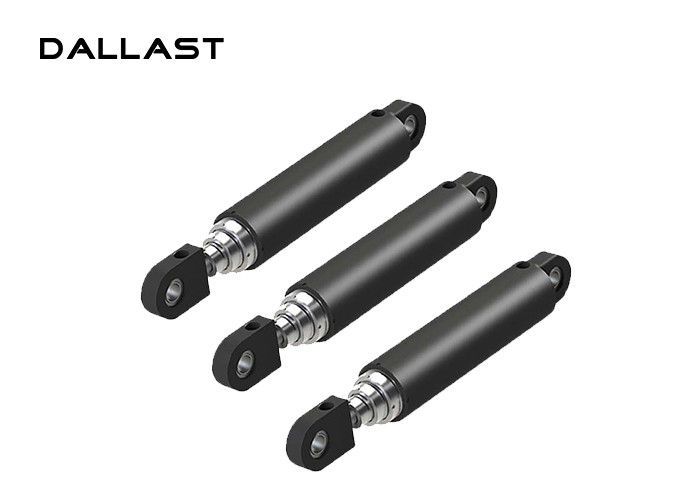

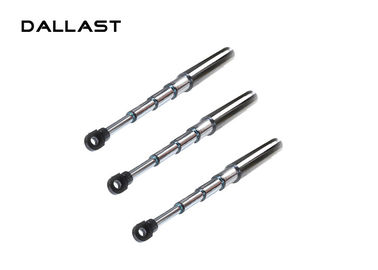

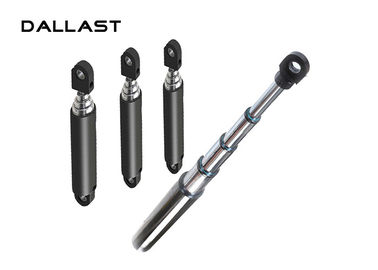

CE Certification Single Acting Hydraulic Cylinder Rice Combine Harvester Yd Series
1. More than 22 years manufacture experience
2. Our own factory
4. Competitive price and high quality
5. Based on your drawing or requirement
6. Rigid matching control and proper seals
7. Easy install and easy maintain
We are the manufacture please advise us the following specification we can customized it for you :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Closed centre
7. Rod diameter
8. Mounting type
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness Surface hardness etc.
11. paint color requirement.
|Type||Used for||Total size||Bore dia||Stroke||Bore/dia||Main coupling dimension withe machine|
|pin hole dia||mount length||port size|
|DG-E63/35*195-405||Header hydraulic cylinder||458*76||63||695||63/35||30||405||M18*1.5|
|DG-E63/35*165-370||steering hydraulic cylinder||415*76||63||665||63/35||20||370||M22*1.5|
|YS-E40/22*65-418||Governor hydraulic cylinder||448*50||40||565||40/22||15||418||M14*1.5|
1. Raw materials entering the factory, 27SiMn, 40CrMo, ST52, 45# steel tubes or bars for choice
2. Do the pre-treatment including pickling, phosphating and saponification, and then cold-draw the seamless steel tubes.
3. Put the steel tubes into the tempering furnace to do the stress relief annealing in convenience of the subsequent the processing.
4. Multi-roll straightening machine, with 10 straightening points, achieves the automatic rolling straight improving the efficiency greatly
5. Heat treatment to obtain work pieces with different properties by changing their internal microstructure or surface chemical composition.
6. Cylindrical degree can be controlled within 0.03mm and the surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm and longest length: 12000mm
7. Machining processes to obtain high precision parts with complex shapes strictly according to the detailed drawings.
8. Electroplating production process fulfills the functional and ornamental requirements for coating work pieces of different dimensions according to specific application requirements.
9. Cleaning all the parts by automatic cleaning machine in the special solution and under special temperature control effectively.
10. All the parts are assembled into complete cylinders according to the strict assembly instructions by skillful workers in dust-free workshop.
11. Do proof pressure and performance tests to check whether the cylinders can operate smoothly and stably under the specified pressure with no leakage and deformation.
12. Do the painting including high quality primer and topcoat to obtain beautiful appearance and protect the cylinders against the anticorrosion.
13. Wooden pallet or boxes packing with plastic films wrapped on the surface, suitable for long-time sea transport.
