Home ProductsTelescopic Hydraulic Cylinder

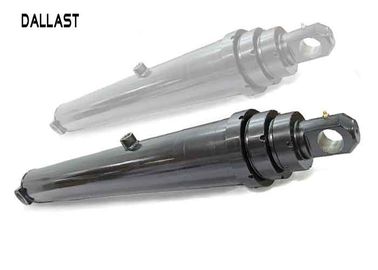

3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure

3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure

    • 3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure
    • 3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure
    • 3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure
  • 3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Mount Method: Cross Tube Pin Eye Gland O-Ring: Custom
    Struction: Single Acting Piston Rod: 1045 I.H.C.P.
    Stage: 3 Stage Or Custom Pressure: 2000 Psi
    Material: Stainless Steel Painted Color: Depend On Customer
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder

    2000PSI 3 Stage Telescopic Single Acting Hydraulic Cylinders Buna 90 Gland O-Ring







    ​​Introduction:



    Retractable hydraulic cylinder can get a longer working stroke with multistage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multistage hydraulic cylinder.



    12”X 4”X 3/8”GRADE A 500 RECTANGULAR TUBING MAIN FRAME

    • ½” X 4” FLAT BAR WEAR PAD, ½” X 4” TRUSS WRAP, ¾” KING PIN PLATE,

    • 12”X 4” CROSS MEMBERS, 4”X4”X 3/8” STABILIZER FRAME

    • 3- ½ 7” BORE REEVE CYLINDER (2)

    • 8”-4 STAGE TELESCOPIC MAIN LIFT CYLINDER (2)

    • 25,000# AXLE 16X7.5 BRAKES, AUTO SLACKS

    • Standard JIC Fitting on All Hydraulic and Air Lines

    • No Hydraulics in Rear of Trailer, Reduces chance of leaks and centralizes plumbing

    • (2) Fixed Stops at Front of Trailer

    • 3 1/2" Rollers Welded to Outside Frame, 2-ply Rubber Fenders on Rear

    • (4) NYLON TIE DOWN STRAPS & ALL L.E.D LIGHTS MEET DOT #108

    • New 10 Hole Uni-MountSteel Rims w/ 11R22.5 Tires (8)

    • ICC REGULATED BUMPER- AIR ACTUATED



    3 Stage Single Acting Cylinders

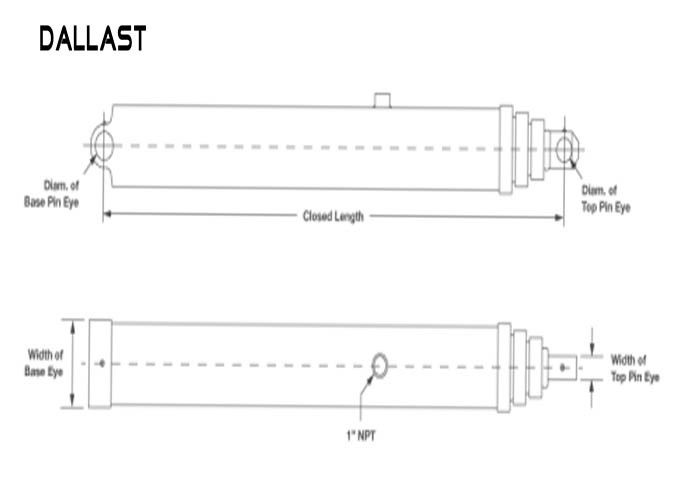

    Cylinder model Total stroke length
    (in)(mm)
    Closed length
    (in)(mm)
    Extended length
    (in)(mm)
    Width of base eye
    (in)(mm)
    Diam. Of base pin eye
    (in)(mm)
    Width of top pin eye
    (in)(mm)
    Diam. Of top pin eye
    (in)(mm)
    Weight (LBS)
    DALLAST100-53-84P 84 39 1/2 122 1/2 7 Fits a 2" Pin 2 Fits a 2" Pin 178
    2,133.60 1,000.30 1,000.30 177.8 Fits a 50.80 Pin 50.8 Fits a 50.80 Pin 452.12
    DALLAST100-53-126P 126 54 1/2 180 1/2 7 Fits a 2" Pin 2 Fits a 1 3/4" Pin 215
    3,200.40 138.43 4,584.70 177.8 Fits a 50.80 Pin 50.8 Fits a 44.45 pin 5,461.00
    DALLAST100-63-108P 108 49 1/2 157 1/2 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 272
    2,743.20 1,257.30 4,000.50 184.15 Fits a 50.80 Pin 50.8 Fits a 50.80 Pin 6,908.80
    DALLAST100-63-120P 120 53 1/2 174 1/2 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 265
    3,048.00 1,358.90 4,432.30 184.15 Fits a 50.80 Pin 50.8 Fits a 50.80 Pin 6,731.00
    DALLAST100-63-126P 126 55 1/2 181 1/2 7 1/4 Fits a 2" Pin 2 Fits a 2" Pin 280
    3,200.40 1,409.70 4,610.10 184.15 Fits a 50.80 Pin 50.8 Fits a 50.80 Pin 7,112.00



    Cylinder model Total stroke length
    (in)(mm)
    Closed length
    (in)(mm)
    Extended length
    (in)(mm)
    Width of base eye
    (in)(mm)
    Diam. Of base pin eye
    (in)(mm)
    Width of top pin eye
    (in)(mm)
    Diam. Of top pin eye
    (in)(mm)
    Weight (LBS)
    DALLAST100-64-135P-175 135 48 1/4 183 8 1 3/4 2 3/4 1 1/2 275
    3,429.00 3429.00 4648.20 203.20 44.45 69.85 38.10 6985.00
    DALLAST100-64-156P-175 156 53 1/4 209 1/4 7 1/8 1 3/4 2 3/4 1 1/2 301
    3,962.40 1352.55 5314.95 180.98 44.45 69.85 38.10 7645.40
    DALLAST100-64-156P 156 53 1/2 209 1/2 7 1/8 2 1 1/2 2 295
    3962.4 1,358.90 5,321.30 180.98 50.8 38.1 50.8 7,493.00
    DALLAST100-74-135P 135 48 1/2 182 1/2 8 5/8 2 2 2 340
    3,429.00 1,231.90 4,635.50 219.08 50.8 50.8 50.8 8,636.00
    DALLAST100-74-156P 156 53 1/2 209 1/2 8 5/8 2 2 2 370
    3,962.40 1,358.90 5,321.30 219.08 50.8 50.8 50.8 9,398.00
    DALLAST100-74-180P 180 59 1/2 239 1/4 8 5/8 2 2 2 448
    4,572.00 1,511.30 6,076.95 219.08 50.8 50.8 50.8 6,076.95



    5 STAGE CYLINDER SPECIFICATIONS
    Cylinder model Total stroke length
    (in)(mm)
    Closed length
    (in)(mm)
    Extended length
    (in)(mm)
    Width of base eye
    (in)(mm)
    Diam. Of base pin eye
    (in)(mm)
    Width of top pin eye
    (in)(mm)
    Diam. Of top pin eye
    (in)(mm)
    Weight (LBS)
    DALLAST100-85-190P 190 54 244 9 1/2 2 2 2 520
    4,826.00 4,826.00 6,197.60 241.3 50.8 50.8 50.8 13,208.00
    DALLAST100-85-220P 220 60 280 9 1/2 2 2 2 595
    5588 1524 7112 241.3 50.8 50.8 50.8 15,113.00
    DALLAST100-85-235P 235 65 300 9 1/2 2 2 2 632
    5969 1651 7620 241.3 50.8 50.8 50.8 16,052.80
    DALLAST100-85-250P 250 68 318 9 1/2 2 2 2 690
    151612.6 41935.4 193548 6129.02 50.8 50.8 50.8 17,526.00
    DALLAST100-85-265P 265 71 336 9 1/2 2 2 2 710
    6731 1803.4 8534.4 241.3 50.8 50.8 50.8 18,034.00



    Rod Seal

    O-shaped, Y-shaped, V-shaped and so on

    Piston

    1045 Bronze Overlay .09" per Side

    Rod

    1045 I.H.C.P.

    Front Cushion

    660 Bronze

    Capacity OFF TRAILER WITH 60,000# LIFT CAPACITY
    OUTSIDE RAIL CONTAINERS HANDLE 20'-25’
    PSI(Pressure) Adjustable PSI (2,000)
    Valve Commercial Valve
    • We offer 12 months warranty.



    Piston Seals:

    It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.





    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
    3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure

    3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure



    3 4 5 Single Acting Telescopic Cylinder MH Series Pin Mount 2000 psi Pressure
