Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Body Material: | Steel | Quality: | OEM Quality |
---|---|---|---|
Supply Condition: | Ground And Chrome Plated | Sealing Rings: | Imported |
Payment Terms: | T/T, L/C, D/P, D/A And So On | Shaft Stroke: | Requirements |
Adjusted Form: | Regulated Type | MOQ: | 1 Set |
High Light: | dump truck telescopic cylinder,dump trailer hydraulic cylinder |

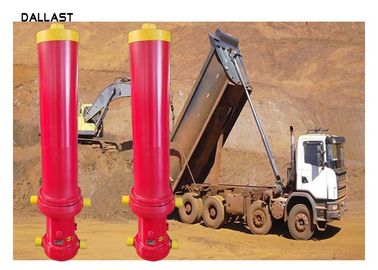

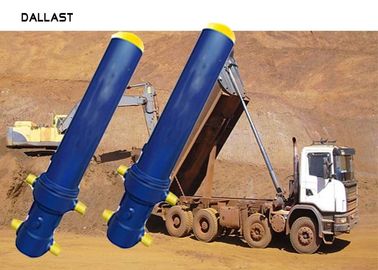

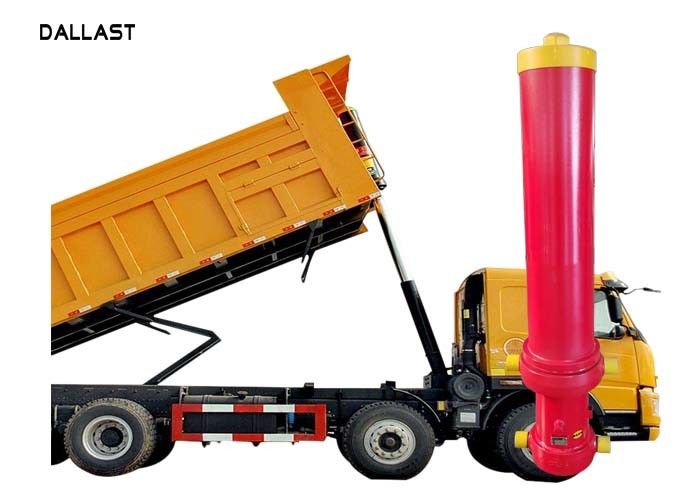

Welded Single Acting Hollow Dump Truck Long Hydraulic Cylinder Ram
If you are interested in our products. Please let me know the following information
A.The product description details
1.bore size:
2.stroke length:
3.rod diameter:
4.mounting type:
5. mounting length:
6.paint color requirement:
B. The product application description details
1.type of machine(loader,steer loader,excavator.and etc.):
2.type of function(hoist,swing,steering,and etc.):
3.type of structure(piston,telescopic):
4.single or double acting:
5.operating pressure:
Of course, if you can provide us design drawing or sample better
Then,I can give you a good price as soon as possible.
FC Type hydraulic cylinder | |||||
MODEL NO. | Stage | Largest Moving Stage Diameter(mm) | Stroke (mm) |
The largest sleeve OD(mm) | Mounting distance(mm) |
FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
FC-3-149-4270 | 3 | 149 | 4270 | 244 | 343 |
FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |
Quality control
· All specification is designed by professional engineer
· All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
· All material is processed by skilled workers and advanced CNC lathe
· All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
· Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
One year warranty and life long time follow up service is offered to solve any problems you met when use our products
