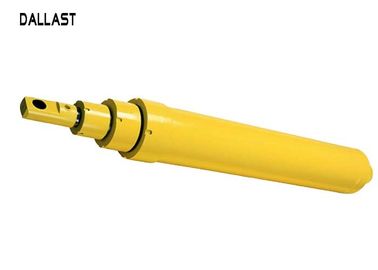

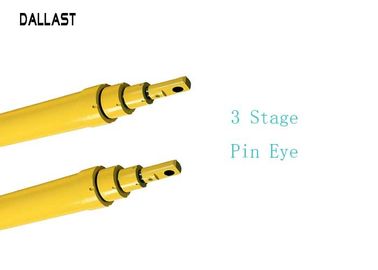

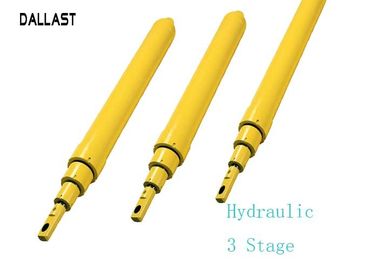

Pin Eye 3 Stage Single Acting Telescopic Hydraulic Cylinder for Dump Truck Trailer

Pin Eye 3 Stage Single Acting Telescopic Hydraulic Cylinder for Dump Truck Trailer

    • Pin Eye 3 Stage Single Acting  Telescopic Hydraulic Cylinder for Dump Truck Trailer
    • Pin Eye 3 Stage Single Acting  Telescopic Hydraulic Cylinder for Dump Truck Trailer
    • Pin Eye 3 Stage Single Acting  Telescopic Hydraulic Cylinder for Dump Truck Trailer
  • Pin Eye 3 Stage Single Acting  Telescopic Hydraulic Cylinder for Dump Truck Trailer

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Or High Temperature Seal: Parker Or Custom
    Struction: Pin Eye Single Acting Piston Rod: Stainless Steel, 27SIMN Or On Request
    Stage: 3 Stages Pressure: Medium Or High Pressure
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder

    Pin Eye 3 Stage Single Acting Telescopic Hydraulic Cylinder for Dump Truck Trailer



    Sizes/Measurements are in inches rounded to nearest fraction - All cylinders are Single Acting

    • OFF TRAILER WITH 60,000# LIFT CAPACITY

    • HANDLE 20'-25’ OUTSIDE RAIL CONTAINERS

    • 12”X 4”X 3/8”GRADE A 500 RECTANGULAR TUBING MAIN FRAME

    • ½” X 4” FLAT BAR WEAR PAD, ½” X 4” TRUSS WRAP, ¾” KING PIN PLATE,

    • 12”X 4” CROSS MEMBERS, 4”X4”X 3/8” STABILIZER FRAME

    • 3- ½ 7” BORE REEVE CYLINDER (2)

    • 8”-4 STAGE TELESCOPIC MAIN LIFT CYLINDER (2)

    • Commercial Valve with Pressure Gauges and Adjustable PSI (2,500)

    • TANDEM SINGLE POINT Spring Suspension 50,000# CAPACITY

    • 25,000# AXLE 16X7.5 BRAKES, AUTO SLACKS,

    • Standard JIC Fitting on All Hydraulic and Air Lines

    • No Hydraulics in Rear of Trailer, Reduces chance of leaks and centralizes plumbing

    • (2) Fixed Stops at Front of Trailer

    • 3 1/2" Rollers Welded to Outside Frame, 2-ply Rubber Fenders on Rear

    • (4) NYLON TIE DOWN STRAPS & ALL L.E.D LIGHTS MEET DOT #108

    • New 10 Hole Uni-MountSteel Rims w/ 11R22.5 Tires (8)

    • ICC REGULATED BUMPER- AIR ACTUATED

    Retractable hydraulic cylinder can get a longer working stroke with multistage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multistage hydraulic cylinder. Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set. The piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinde. In general telescopic cylinders are much more expensive than normal cylinders. Most telescopic cylinders are single acting (push).





    Piston Seals:
    A. Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    B. The seal is the use of rubber or plastic seal of the elastic ring so that a variety of cross-section ring in the static and dynamic fit between the surface to prevent leakage.

    C. Common seal are O-shaped, Y-shaped, V-shaped and so on.

    D. It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.





    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.





    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    After-sales service:

    1. We offer 12 months warranty.

    2. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    3. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    4. Service Center all over the world for after sales problems.

    5. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    6. Pre-sale service and free consultation service.
    7. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.


    Pin Eye 3 Stage Single Acting  Telescopic Hydraulic Cylinder for Dump Truck Trailer
