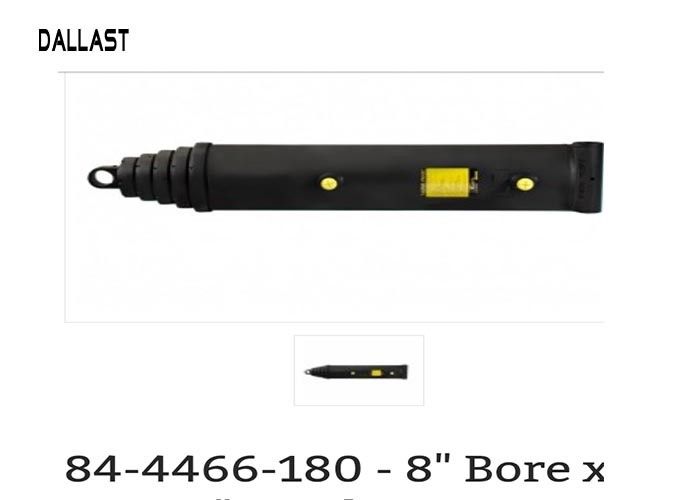

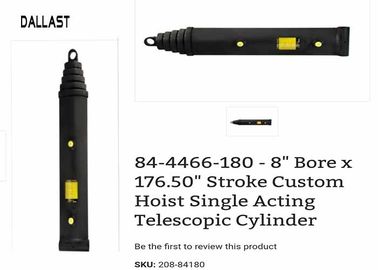

Single Acting Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke

Single Acting Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke

    • Single Acting  Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke
    • Single Acting  Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke
    • Single Acting  Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke
  • Single Acting  Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Temperature: High Temperature Struction: Telescopic Parker Hydraulic Cylinder
    Piston Rod: Stainless Steel, 27SIMN Or On Request Stage: 4 Stage
    Pressure: Medium Or High Pressure Stroke: 176.50’’ Stroke
    Operating Pressure: 2,000 Psi Model: 84-4466-180-8

    Telescopic Single Acting Parker Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke


    Retractable hydraulic cylinder can get a longer working stroke with multistage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multistage hydraulic cylinder. Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set. The piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinde. In general telescopic cylinders are much more expensive than normal cylinders. Most telescopic cylinders are single acting (push).




    Cylinder Tube OD: 9.12’’

    Operating Pressure: 2,000 psi

    # of Stages: 4

    Largest Moving Stage Diameter: 8.00’’

    Stoke: 176.50’’

    Closed: 59.50’’

    Extended: 236.00’’

    Base Mount Width: 9.50’’

    Base Mount Diameter: 2.12’’

    Plunger Mount Width: 2.00’’

    Plunger Mount Diameter: 2.03’’

    Oil Capacity Fill Gal(L): 4.6(17.8)

    Oil Capacity Extended Gal(L): 25.9(100.4)

    Dry Weight: 515

    Warranty: 12 months



    Self-Bleeding design

    Pre-loaded v-packing with a self-adjusting wave

    Spring energizer to maintain a continuous force on the packing

    Threaded headnuts for added strength and field seal adjustment

    Longer Bearing Length (overlap) for stability




    Commonly used in construction machinery and other mobile machinery, such as cranes, dump trucks and other hydraulic systems.


    Piston Seals:
    A. Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    B. The seal is the use of rubber or plastic seal of the elastic ring so that a variety of cross-section ring in the static and dynamic fit between the surface to prevent leakage.

    C. Common seal are O-shaped, Y-shaped, V-shaped and so on.

    D. It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.


    Features & Benefits:

    1. DALLAST single acting telescopic cylinders provide value through proven reliability, efficient performance and the quality that you expect from every DALLAST Cylinder Division product line.

    2. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections. Often this length does not fit in the machine.

    3. Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    4. Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing

    nuts backing off.
    5. Single-acting cylinders transfer force and motion in one direction only.


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.


    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    After-sales service:

    1. We offer 12 months warranty.

    2. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    3. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    4. Service Center all over the world for after sales problems.

    5. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    6. Pre-sale service and free consultation service.
    7. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.

    Single Acting  Telescopic Hydraulic Cylinder 4 Stage Bore x 176.50’’ Stroke
