Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Payment Terms: | T/T, L/C, D/P, D/A And So On | MOQ: | 1 Set |
---|---|---|---|
Material: | 27SiMn, 45# | Quality: | Perfect Quality Control |
Warranty: | One Year | Service: | Good After Service |
Model Number: | Customization | Working Medium: | Hydraulic Oil |
High Light: | dump truck telescopic cylinder,dump trailer hydraulic cylinder |

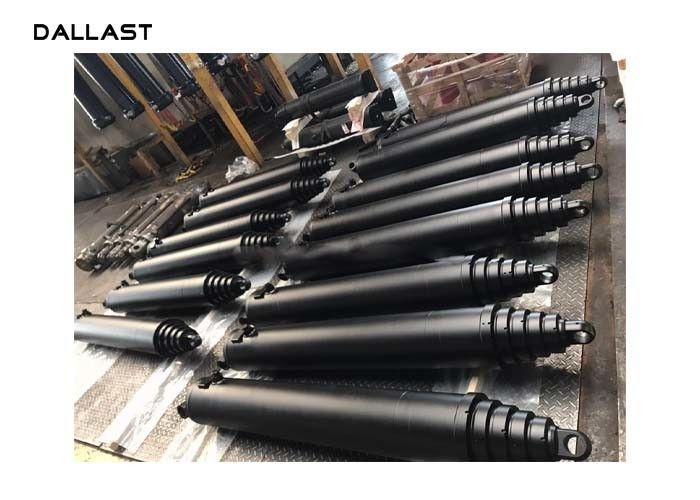

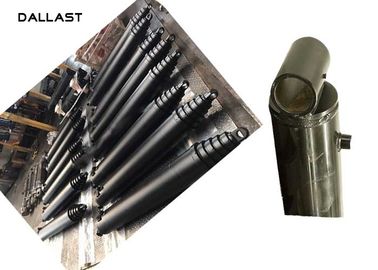

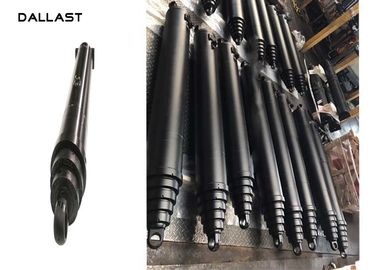

Multistage Long Stroke Parker Type Dump Truck Hydraulic Cylinder
Professional manufacturer supplier of Hydraulic Cylinders for more than 16 years;
Hydraulic Cylinders Have Won ISO9001:2008, SGS, TS16949 Certification;
The Hydraulic Cylinders have been exported to America, Canada, Australia, Korea, Egypt, Iran;
Hydraulic Cylinders can be made according to client's requirements;
The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
We are the supplier of FOTON, HOWO, JAC, Sichuan Hyundai, Dayun, Shanxi Automobile Group., Ltd the most famous truck manufacturing and refitting company in China, It's a good proof of our Hydraulic Cylinders.
Specifications:
Model | Extended Stages | Working Pressure | Max. Rod Diameter | Max. Stroke Length | Lifting Capacity | FC Price (USD) | Suitable Length of Truck Body |
129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton | 1110 | 5.2m |
149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton | 1293 | 5.2m |
149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton | 1293 | 5.6m |
149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton | 1293 | 5.2m |
149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton | 1293 | 5.6m |
169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton | 1400 | 5.2-5.6m |
169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton | 1495 | 5.6-6.1m |
169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton | 1585 | 6.2-6.8m |
169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton | 1630 | 6.2-6.9m |
169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton | 1675 | 6.2-6.9 |
169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton | 1695 | 6.5-7.3 |
185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton | 1295 | 5.6m |
185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton | 1385 | 5.6-6.1m |
185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton | 1475 | 6.2-6.5m |
185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton | 1570 | 6.2-6.8m |
185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton | 1461 | 6.5-7.3m |
185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton | 1610 | 6.9-7.7m |
185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton | 1755 | 7.3-8.2m |
191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton | 2125 | 6.9-7.7m |
191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton | 2270 | 7.3-8.2m |
191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton | 2640 | 7.8-8.5m |
191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton | 3380 | 10-11m |
220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton | 3420 | 7.8-8.5m |
220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton | 4435 | 10-11m |
Our Services
1. Sample service: samples will be provided according to customer's instruction.
2. Customized services: a variety of cylinders can be customized according to customer demand.
3. Warranty service: In case of quality problems under 1-year warranty period, free replacement will be made for customer.
Usages and Features
GHD series mutil-level hydraulic cylinder applies for big stoke and mounting distance or overall length is small(stoke can be larger than mounting distance or overall length ). It has overall arrangement, rational construction, reliable work, easy detach and attach, easy maintenance characteristics. And is widely used for all kinds of industry; engineering machinery, mining machinery, lifting transportation machinery, environmental protection machinery, transportation machinery etc. Specifications of work pressure, stoke, mounting distance, grade, stoke of all grade and cylinder diameter etc can be designed to clients’ need. And double functional mutil-level cylinder is available.
FAQ:
1. Can you help me to install or give me advice about what kind of hydraulic cylinder?
or power pack should I use for specific machine?
Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.
2. How do you ship the finished products?
--By sea
--By plane
--By couriers. DHL, UPS, TNT and so on.
3. How many days will samples be finished? And how about the mass production?
--Generally, 5-7days for samples making.
--The lead time of mass production will depend on quality, production art and so on.
Generally, 15 days.
