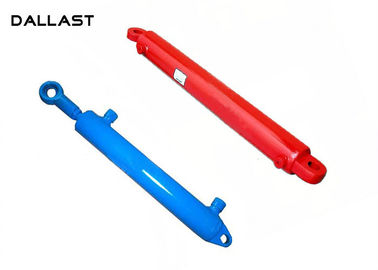

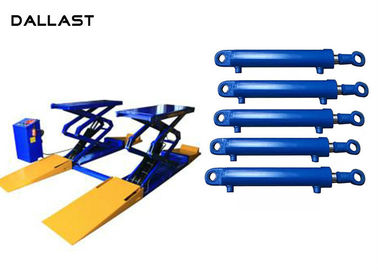

Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001

Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001

    • Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001
    • Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001
    • Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001
  • Ultra Thin Scissor Lift Standard Compact Hydraulic Hoist Cylinder with CE ISO9001

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: CE,RHOS,ISO9001-2009 ,TS16949
    Model Number: Standard Nostandard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 200000PCS per year
    Contact Now
    Detailed Product Description
    Acting Way: Double Acting Cylinder Structure: Piston Hydraulic Cylinder
    Pressure: Medium Pressure Work Temperature: Normal Temperature
    Seal: Parker, Merkel, Hallite, Kaden,NOK,SKF Etc Piston Rod: Tempering, Plated Nickel, Chrome Or Ceramic
    Working Method: Straight Trip Adjusted Form: Regulated Type
    Price: Cheap Hydraulic Cylinder Name: Sheffer Hydraulic Cylinder
    High Light:

    dump truck hoist cylinder

    ,

    engine hoist hydraulic cylinder

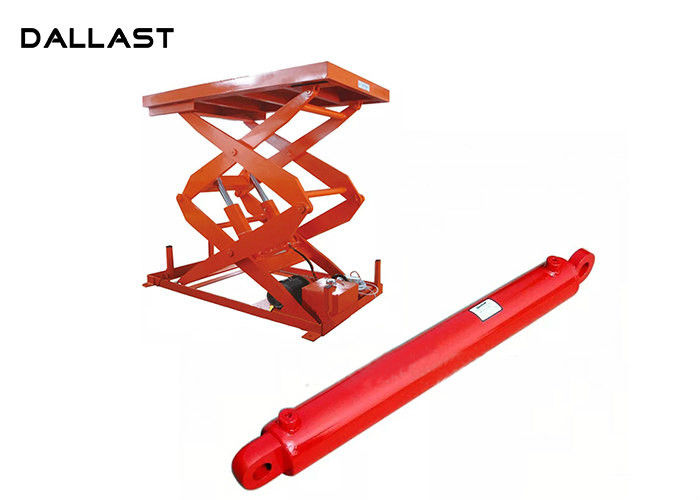

    Ultra-Thin Scissor Lift Standard Compact Hydraulic Cylinder with CE ISO9001



    Products Discription:



    1. Raw materials entering the factory, 27SiMn, 40CrMo, ST52, 45# steel tubes or bars for choice

    2. Do the pre-treatment including pickling, phosphating and saponification, and then cold-draw the seamless steel tubes.

    3. Put the steel tubes into the tempering furnace to do the stress relief annealing in convenience of the subsequent the processing

    4. Multi-roll straightening machine, with 10 straightening points, achieves the automatic rolling straighten, improving the efficiency greatly

    5. Heat treatment to obtain workpieces with different properties by changing their internal microstructure or surface chemical composition

    6. Cylindrical degree can be controlled within 0.03mm and the surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm and longest length: 12000mm

    7. Machining processes to obtain high precision parts with complex shapes strictly according to the detailed drawings

    8. Electroplating production processfulfillsthe functional and ornamental requirements for coating workpieces of different dimensions according to specific application requirements.

    9. Cleaning all the parts by automatic cleaning machine in the special solution and under specific temperature control effectively

    10. All the parts are assembledinto complete cylinders according to the strict assemblyinstructions by skillful workers in dust-free workshop.

    11. Do proof pressure and performance tests to check whether the cylinders can operate smoothly and stably under the specified pressurewith no leakage and deformation

    12. Do the painting including high quality primer and topcoat to obtain beautiful appearanceand protect the cylinders against the anticorrosion.

    13. Wooden palletor boxes packing with plastic films wrapped on the surface, suitable for long-time sea transport



    Technical parameters:



    Model Item Bore Rod Stroke Retraction length
    150702φ70/38X530 Hydraulic cylinder for ultra-thin scissor lift 70 38 530 804



    FAQ:

    1. are you a manufacturer?
    Yes, we focus on the hydraulic cylinder.
    We are professional manufacturer in hydraulic cylinder. We will provide competitive price.



    2. Can I get samples to test before starting cooperation?
    Of course.We would like produce sample hydraulic cylinder for your confirmation.



    3. Have you been exported to overseas?
    We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

    4. How to ship your product?
    We are transported by sea, by air or by international express.According to your needs.

    5. Do you support OEM service?
    Yes. OEM service is available.
    we can make products according to your requirements. Please kindly send us your specifications and drawings.

    6. Is your design reasonable?
    We have professional R&D team with rich design experience.
    We also establish strict but scientific product testing system so that products have perfect performance.

    7. How to choose which model hydraulic cylinder to buy?
    Please kindly send us your drawings, models or providing us your parameters and
    specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.



    8. What is your warranty?
    Our products are all available for one year free warranty and product lifetime consulting service.

    9. How long it will take from ordering to delivering?
    It depends on the ordering quantity. Generally, we will take 15-30days. If there are any changes, we will inform you in time.
