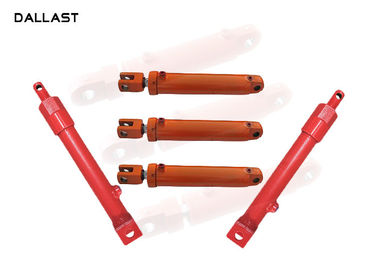

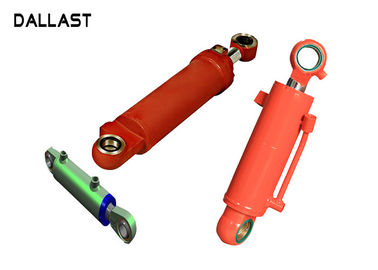

Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck

Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck

    • Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck
    • Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck
    • Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck
  • Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet or as to your needs
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Working Pressure: 16-32 Mpa Pressure Environment: Medium Pressure
    Material: Piston Cylinder Business Type: Manufacturer
    Piston Rod Chrome Plated: Cr, Ni, Or Ceramic Working Medium: Hydraulic Oil
    Delivery Time: 15-25 Days Color: Red
    High Light:

    double acting hydraulic lift cylinder

    ,

    hydraulic oil cylinder

    Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck





    Key Features:


    1. Provides low mounting height, no alteration of body crossmembers.
    2. Made from special high strength steel to reduce overall weight.
    3. Heavily chromed and polished cylinder piston rods for longer seal lift.
    4. Threaded head, welded cap design
    5. High accuracy and precision thanks to integrated guide
    6. Patented secured air bleed device to protect against injury
    7. Self-adjusting/adjustable end position cushioning
    8. Options for ductile iron or bronze inlaid steel rod glands
    9. Mounting alternatives include trunnion mount, clevis, pineyes, or lugs with spherical bearings
    10. Custom options for ports and integrated valves
    11. Diverse preferences for seals due to temperature or heavy duty usage
    12. Linear transducers, proximity switches, and sensors available
    13. Extensive pressure testing
    14. Finished cylinder is sandblasted and painted to customer specifications
    15. Hydrostatic testing data packets and material test reports available
    16. Seal kits available for quick shipment
    17. Short manufacturing lead times



    Parameters:





    Manufacturing Capabilities

    · ISO9001:2008 certified

    · Complete CNC Machining capabilities

    · Bore size from 40mm to 500mm

    · Stroke lengths Max. approach to 10m.

    · Working pressures 16-24Mpa

    · Up to 6 stages of multi-stage telescopic hydraulic cylinder experience



    Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck



    Tube inner diameter 80 to 1,050mm
    Piston rod diameter 45 to 600mm
    Plate Ni/Cr/ceramic
    Working pressure 70 to 700 bars
    Bearing LONGXI(china)or SKF
    Seal type Common stand or in accordance with client's requirement (we usually use Parker from USA or MERKER from Germany)
    Valves Parker/rexroth/atos/hydcom
    Certification DNV, ABS, Lloyds, BV, SGS, GL, and CCS
    Material Carbon, Alloy, Stainless Steel
      Detail manufacturing drawings to be submitted to buyer for approval before manufacture is commenced



    Visit our website to select standard cylinders, we will offer best
    price, for custom-made cylinders, feel free to send us drawings for pricing



    Customized Hydraulic Cylinder

    For many years of R&D and manufacture,we have rich experience and unique advantages in supply custom hydraulic cylinders with provided drawings or samples,or if you could provide following specifications:

    1. Bore diameter

    2. Piston Rod Diameter

    3. Stroke Length

    4. Mounting Distance & Methods

    5. Working Pressure

    6. Oil Port

    7. Paint color requirement


    Applications:
    This hydraulic cylinder is mainly widely used in tractors, harvester, farm truck, log splitter, trailer, etc.

    Packing and shipping:
    With standard export carton /wooden case packing, or as customer’s requirements.

    Our services:
    All our hydraulic cylinder products with 1 year warranty period
    If happened problems in the usage of warranty time, send the damaged spare parts pictures for us, we will send the new one freely for you via express or by air and urgent questions, make an call for us.

    Our advantages:
    1. Customization and OEM service is acceptable for us.
    2. All of our hydraulic cylinders and accessories obtained ISO 9001:2008 certification.
    3. Samples can be provide to you before starting cooperation.
    4. We are factory and can assure the prompt delivery time.
    5. Packing can be customized, often using standard export wooden case packing.

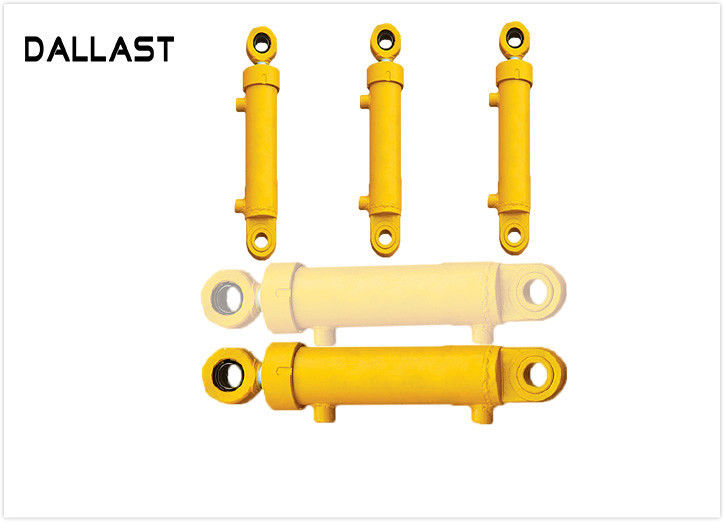

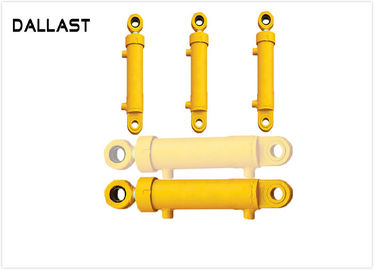

    Product Show :



    Double Acting Hydraulic Power Cylinders for Agricultural Farm Truck
