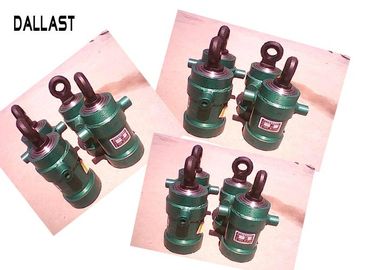

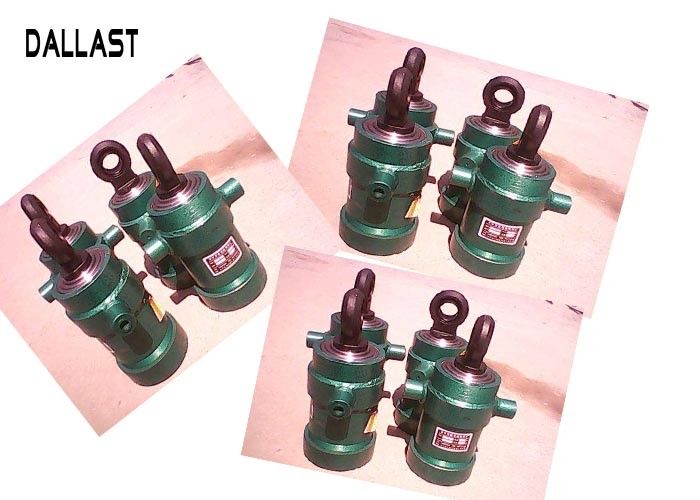

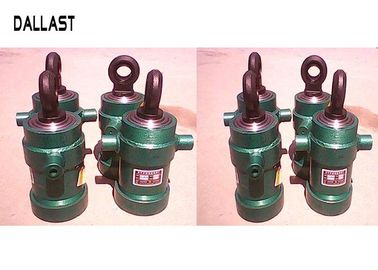

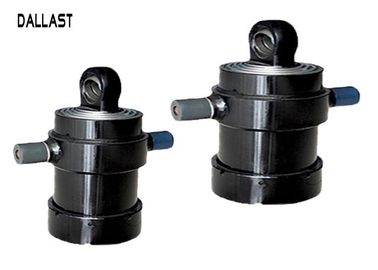

Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer

Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer

    • Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer
    • Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer
    • Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer
  • Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer

    Product Details:

    Place of Origin: shandong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Brand: Hyva, Or Customized Stroke: 200-12000mm
    Temperature: Normal Temperature Pressure: Medium Pressure
    Power: Hydraulic Pressure Direction: Single Acting Cylinder
    High Light:

    dump truck hydraulic ram

    ,

    dump trailer hydraulic cylinder

    Hydraulic Cylinder Single Acting Telescopic FE Series for Dump Truck / Trailer



    Application:

    It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements.



    Introduction:
     A hydraulic cylinder consists of a piston sliding within a hollow tube, moved by the pressure of a liquid. The piston, or rod is usually machined. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank. Telescopic cylinders normally extend from the largest stage to the smallest. This means the largest stage — with all the smaller stages nested inside it — will move first, and complete its stroke before the next stage begins to move.



    model stage

    pressure

    (Bar)

    stroke

    (mm)

    diatance

    length

    (mm)

    3TG-E150*3830EZ 3 160 3830 1635
    3TG-E150*3360EZ 3 160 3360 1370
    4TG-E150*4400EZ 4 160 4400 1390
    4TG-E180*4595EZ 4 160 4595 1500
    4TG-E180*5000EZ 4 160 5000 1575



    Any model could be customized, please note that the regularly stocked telescopic cylinders above.

    Feel free to contact our office to place an order for quick delivery.









    Features:

    • There are many benefits to using a single acting dump truck cylinder. It’s the ideal choice for applications where gravity, weight or other assisting forces are present to move the cylinder in one direction. It could be mounted in any position so that it could be used in a wide range of mobile and industrial applications.
    Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.



    Mounting option:
    It has FC, FE, FEE.

    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.


    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details


    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    7. We offer 12 months warranty.
