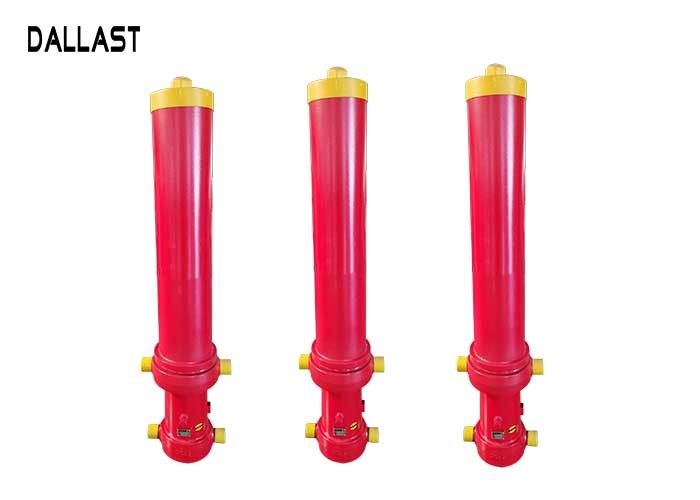

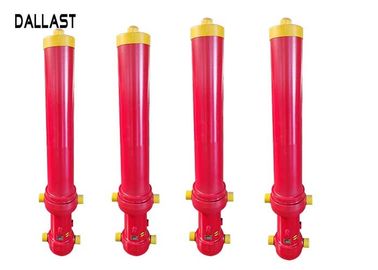

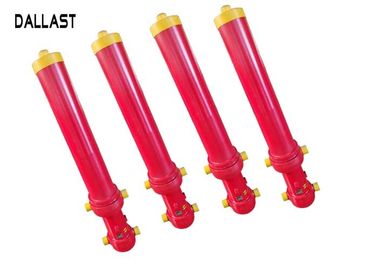

Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic

Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic

    • Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic
    • Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic
    • Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic
  • Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Temperature: Normal Temperature Pressure: 16-35MPa
    Action Type: Single Acting Piston Rod: Customized
    Installation Type: FC Stroke: 3200-12000mm
    High Light:

    dump truck telescopic cylinder

    ,

    dump trailer hydraulic cylinder

    Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic

    Introduction&Application:
    1. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.

    2. It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements.

    Features:
    Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.



    Mounting option:
    It has FC, FE, FEE.

    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    model

    pressure

    (MPa)

    stroke

    (mm)

    diatance

    length

    (mm)

    4TG-E180*5390ZZ 16 5390 425
    3TG-E180*3850ZZ 16 3850 425
    4TG-E180*5390ZZ 16 5390 325
    3TG-E150*3830ZZ 16 3830 343
    3TG-E150*3360ZZ 16 3360 343
    4TG-E150*4400ZZ 16 4400 343
    4TG-E180*4595ZZ 16 4595 343
    4TG-E180*5000ZZ 16 5000 343



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.


    Warranty:
    We offer 12 months warranty.


    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details


    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic


     Hydraulic Dump Truck Front Lifting Cylinder Sleeve Telescopic
