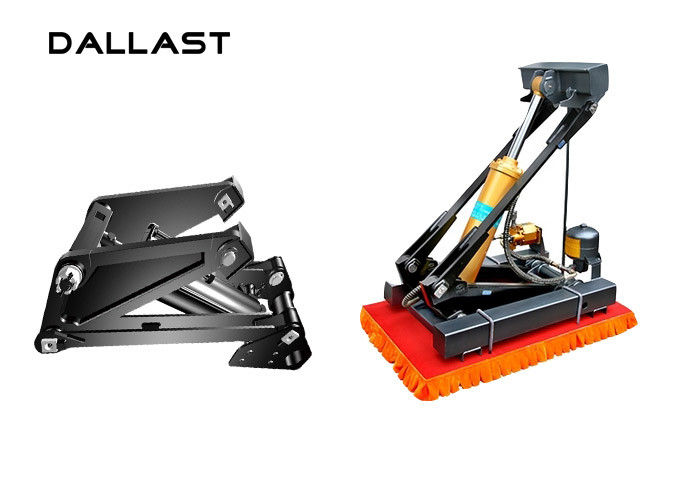

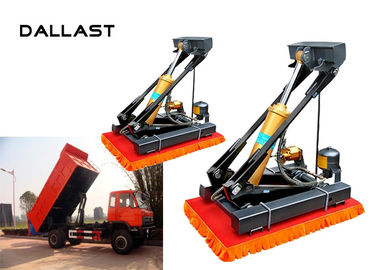

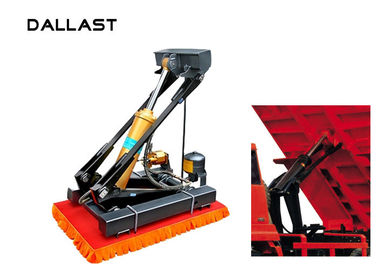

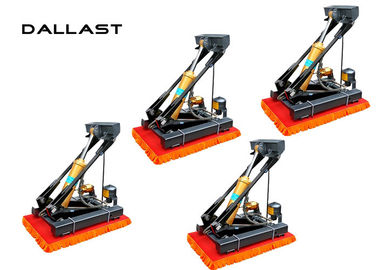

Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder

Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder

    • Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder
    • Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder
    • Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder
    • Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder
  • Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Certificate: ISO9001:2008 Rod Clevis: Ductile Iron
    Adjusted Form: Regulated Type Capacity: OEM,ODM,Sample
    Heat Treatment: Quenching Acting Way: Double Acting
    High Light:

    dump truck hoist cylinder

    ,

    engine hoist hydraulic cylinder

    Horizontal Hydraulic Mechanism Of Dump Truck Engine Hydraulic Hoist Cylinder









    Models

    Hoist cylinder



    Working pressure

    (MPa)(kgf/cm²)



    Inner diameter



    Stroke(mm)

    Min close distance(mm)



    Piston rod diameter



    Max pressure (MPa)(kgf/cm²)

    KEM-92 dump hoist 6.4 / 65 160 405 666 45 14.7/ 150
    KRM-143 dump hoist 6.4/65 140 504 727 60 14.7/150
    KRM-160S dump hoist 6.9/70 160 561 914 70 15.7/160
    KRM-183 dump hoist 11.8/120 180 832 1108 80 20.6/210
    KRM-201 dump hoist 10.3/105 200 878 1211 100 20.6/210
    KRM-220 42’’ dump hoist 9.8/100 220 865 1197 100 20.6/210
    KRM-220 62’’dump hoist 9.8/100 220 1338 1696 100 20.6/210












































    Product Description
    Product: Car Lift Hydraulic Cylinder



    Order Instruction:
    1. Customer can select cylinder model and bore according to the load size and mounting mode.
    2. The stroke can be selected from the range in the table at your choice.



    PARAMETER
    Max Cylinder Bore 280mm
    Min Cylinder Bore 10mm
    Max Piston Rod Dia. 280mm
    Min Piston Rod Dia. 10mm
    Max Retract Length 3500mm
    Min Retract Length 50mm
    Max Stretch Length Single stage cylinder 6500mm
    Dual stage cylinder 12500mm
    Min Stretch Length 60mm
    Max Working Pressure 4500PSI
    Min Working Pressure 1000PSI
    Working Pressure of Heavy-duty Cylinder 7500PSI

    Intended Use: Lifting machinery.


    Service and Quality Assurance: OEM service is offered too.
    Our design Dept. and strict QC Dept. can control the quality in steady.
    1. Clevis End Mounting
    2. 2320 PSI Working Pressure, 3"Bore, 70" -72.5"Stroke, 1"Rod Diameter
    3. Black, double Acting Application



    Our companies can customize the design, the production of all types of excavator’s hydraulic cylinder. We have sets of advanced cylinder production equipment. The cylinder liners are made of cold drawn seamless steel tubes with strong honing technique. The cylinder length can reach up to 7m with diameters from φ40 to φ500. The piston rods are made of chrome steel with special heat treatment. The diiron sing technique is applied to the surface, with makes it high in smooth finish with tough inside and hard outside. The piston rod’s diameters are from φ5 to φ180, equipped with high quality seals. The quality of our cylinders is guaranteed by the test of high-pressure test bed. We can serve you with our quality products, reasonable price, and timely delivery.



    Horizontal Hydraulic Mechanism Of Dump Truck Engine Hoist Cylinder
