Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer

Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer

    • Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer
    • Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer
    • Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer
  • Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Model No.: Customized Acting Way: Single Acting
    Delivery Time: 15-25 Days Available Temperature: -40 ℃ To 80 ℃
    Hardness: HRC 45-55 Power: Hydraulic
    Usage: Automation And Control Warranty: 12 Months
    High Light:

    telescopic hydraulic ram

    ,

    custom hydraulic cylinders



    Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer

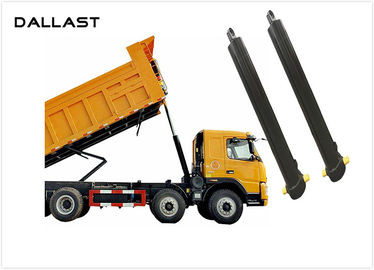

    hydraulic cylinder for dump truck , trail truck,garbage truck,crane

    1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

    2. Underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

    hydraulic cylinder for coal mine dump truck

    3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.

    4. Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.

    5. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.


    Product description:


    FC series telescopic cylinder are suitable for the machine which requires long stroke and short length.
    1. Including single acting and double acting.
    2. Small size and high intensity
    3. Sealing systems seal rings of NOK from Japan and Parker from the US that have good lifetime.
    4. Cylinder body, the thickness of cylinder body and flange can be changed, the cylinder inner surfaces manufactured as per appropriate intensity and dimensions
    have excellent roughness and rigidity and better wearing capacity after roll finishing. They have 100% nondestructive test.
    5. Piston rod high frequency quenching followed by hard chrome plating to improve rust proofing and wear and scar resisting performance


    Parameters:


    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

    Model Lifting. (T) Pressure
    (Mpa)
    Seal height
    (mm)
    Cylinder capacity
    (L)
    Suitable container length (mm) Rear overhang
    (mm)
    3TG-E152×3830 29 16 1618 59 5200-5400 800
    3TG-E152×4000 29 16 1675 62 5400-5600 800
    4TG-E152×4270 29 16 1414 58 5600-5800 800
    4TG-E152×4270 29 16 1509 63 5800-6200 800
    4TG-E152×4270 29 16 1598 66 6200-6400 800




    Company Profile:

    The company Dallast with over 15 years of experience in hydraulics is a leading manufacturer of hydraulic cylinders and components.
    The wide range of standard products in stock and the competence to support its customers by manufacturing custom-made cylinders makes the company a versatile and reliable partner.



    FAQ:

    Q1. What are the same aspects of your cylinder with Hyva cylinder?
    1. Same inside structure.
    2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's.

    Q2. Compared with Hyva cylinder, what are your cylinder advantages?
    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.
    3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
    4. Good quality yet lower price.

    Q3. How long is the production time?
    Generally the production time is 15-25 days.

    Q4. Can we design our own package or print our own logo?
    Yes! Package and logo will be made according to your requirements.

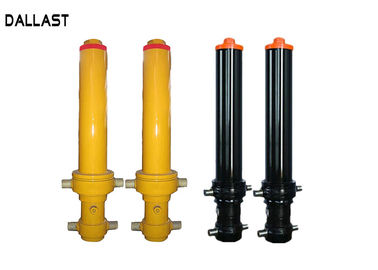

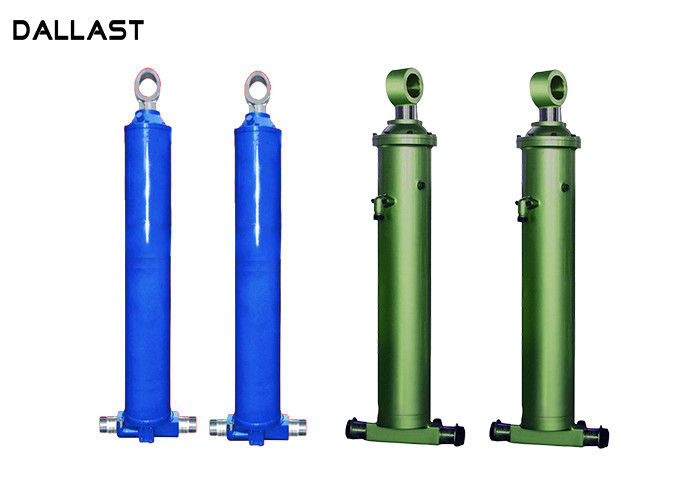

    Product Show:

    Customized FC Telescopic Hydraulic Cylinder for Dump Truck / Dumper Trailer
