| Place of Origin: | Shandong |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Model No.: | Customized | Acting Way: | Single Acting |
|---|---|---|---|
| Material: | Alloy Steel | Means Of Transport: | Shipping |
| Delivery Time: | 15-25 Days | Stroke: | Long Stroke |
| Hardness: | HRC 45-55 | Power: | Hydraulic |
| High Light: | custom hydraulic cylinders,hydraulic ram cylinder |
||

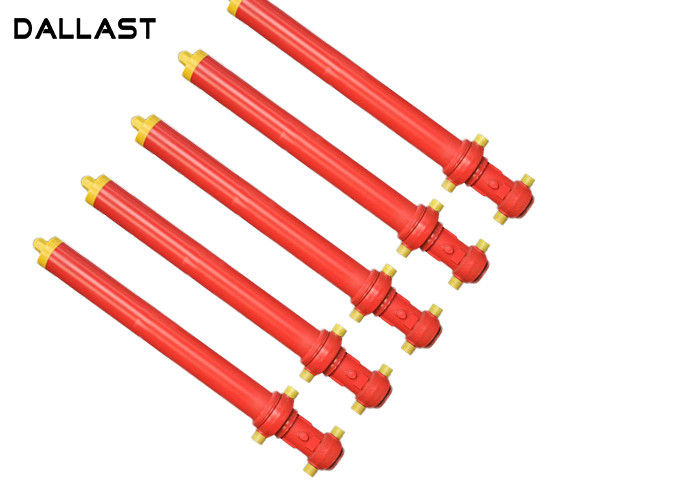

Customized Agricultural Hydraulic Cylinders 8412210000 HS Code , Agricultural Hydraulic Rams

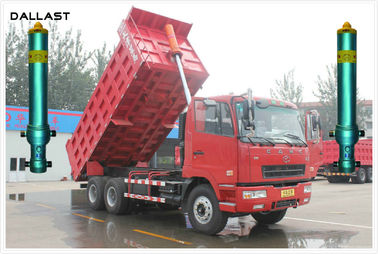

Hydraulic cylinder for dump truck, trail truck,garbage truck, crane
1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.
2. Underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

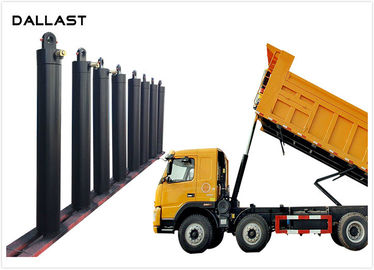

hydraulic cylinder for coal mine dump truck
3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.
4. Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.
5. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.
Parameter:
|
Customized Agricultural Hydraulic Cylinders 8412210000 HS Code , Agricultural Hydraulic Rams
|
||||||
| MODEL NO. | Stage | First Stage Diameter | Stroke | Largest Sleeve OD | Closed length | Mounting distance |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| FC-3-107-2855 | 3 | 107 | 2855 | 152 | 1268 | 311 |
| FC-3-107-3115 | 3 | 107 | 3115 | 152 | 1368 | 311 |
| FC-3-107-3265 | 3 | 107 | 3265 | 152 | 1418 | 311 |
| FC-3-107-3415 | 3 | 107 | 3415 | 152 | 1468 | 311 |
| FC-3-107-3715 | 3 | 107 | 3715 | 152 | 1568 | 311 |
| FC-3-126-3230 | 3 | 126 | 3230 | 219 | 1403 | 343 |
| FC-3-126-3680 | 3 | 126 | 3680 | 219 | 1553 | 343 |
| FC-3-126-3830 | 3 | 126 | 3830 | 219 | 1603 | 343 |
| FC-3-126-4400 | 3 | 126 | 4400 | 219 | 1803 | 343 |
| FC-4-126-4145 | 4 | 126 | 4145 | 219 | 1357 | 343 |
| FC-4-126-4345 | 4 | 126 | 4345 | 219 | 1407 | 343 |
| FC-4-126-4545 | 4 | 126 | 4545 | 219 | 1457 | 343 |
| FC-4-126-4745 | 4 | 126 | 4745 | 219 | 1507 | 343 |
| FC-4-126-4945 | 4 | 126 | 4945 | 219 | 1557 | 343 |
| FC-4-126-5145 | 4 | 126 | 5145 | 219 | 1607 | 343 |
| FC-3-145-3230 | 3 | 145 | 3230 | 219 | 1403 | 343 |
| FC-3-145-3680 | 3 | 145 | 3680 | 219 | 1553 | 343 |
| FC-3-145-3830 | 3 | 145 | 3830 | 219 | 1603 | 343 |
| FC-4-145-4110 | 4 | 145 | 4110 | 219 | 1357 | 343 |
| FC-4-145-4310 | 4 | 145 | 4310 | 219 | 1407 | 343 |
| FC-4-145-4510 | 4 | 145 | 4510 | 219 | 1457 | 343 |
| FC-4-145-4710 | 4 | 145 | 4710 | 219 | 1507 | 343 |
| FC-4-145-4910 | 4 | 145 | 4910 | 219 | 1557 | 343 |
| FC-4-145-5110 | 4 | 145 | 5110 | 219 | 1607 | 343 |
| FC-4-145-5310 | 4 | 145 | 5310 | 219 | 1657 | 343 |
| FC-4-145-5865 | 4 | 145 | 5865 | 219 | 1807 | 343 |
| FC-5-145-4310 | 5 | 145 | 4310 | 219 | 1161 | 343 |
| FC-4-165-4110 | 4 | 165 | 4110 | 244 | 1347 | 343 |
| FC-4-165-4510 | 4 | 165 | 4510 | 244 | 1447 | 343 |
| FC-4-165-4710 | 4 | 165 | 4710 | 244 | 1497 | 343 |
| FC-4-165-4910 | 4 | 165 | 4910 | 244 | 1547 | 343 |
| FC-4-165-5110 | 4 | 165 | 5110 | 244 | 1597 | 343 |
| FC-4-165-5310 | 4 | 165 | 5310 | 244 | 1647 | 343 |
| FC-4-165-5865 | 4 | 165 | 5865 | 244 | 1797 | 343 |
| FC-5-165-5135 | 5 | 165 | 5135 | 244 | 1351 | 343 |
| FC-5-165-5385 | 5 | 165 | 5385 | 244 | 1401 | 343 |
| FC-5-165-5635 | 5 | 165 | 5635 | 244 | 1451 | 343 |
| FC-5-165-6135 | 5 | 165 | 6135 | 244 | 1551 | 343 |
| FC-5-165-6385 | 5 | 165 | 6385 | 244 | 1601 | 343 |
| FC-5-165-6825 | 5 | 165 | 6825 | 244 | 1701 | 343 |
| FC-5-165-7075 | 5 | 165 | 7075 | 244 | 1751 | 343 |
| FC-5-165-7325 | 5 | 165 | 7325 | 244 | 1801 | 343 |
| FC-5-165-7575 | 5 | 165 | 7575 | 244 | 1851 | 343 |
| FC-5-165-7825 | 5 | 165 | 7825 | 244 | 1901 | 343 |
| FC-5-165-8185 | 5 | 165 | 8185 | 244 | 2001 | 343 |
| FC-5-165-8435 | 5 | 165 | 8435 | 244 | 2051 | 343 |
| FC-5-187-5135 | 5 | 187 | 5135 | 244 | 1351 | 343 |
| FC-5-187-5385 | 5 | 187 | 5385 | 244 | 1401 | 343 |
| FC-5-187-5635 | 5 | 187 | 5635 | 244 | 1451 | 343 |
| FC-5-187-6135 | 5 | 187 | 6135 | 244 | 1551 | 343 |
| FC-5-187-6385 | 5 | 187 | 6385 | 244 | 1601 | 343 |
| FC-5-187-6825 | 5 | 187 | 6825 | 244 | 1701 | 343 |
| FC-5-187-7075 | 5 | 187 | 7075 | 244 | 1751 | 343 |
| FC-5-187-7325 | 5 | 187 | 7325 | 244 | 1801 | 343 |
| FC-5-187-7825 | 5 | 187 | 7825 | 244 | 1901 | 343 |
| FC-5-187-8185 | 5 | 187 | 8185 | 244 | 2001 | 343 |
| FC-5-187-8435 | 5 | 187 | 8435 | 244 | 2051 | 343 |
| FC-5-187-8935 | 5 | 187 | 8935 | 244 | 2151 | 343 |
| FC-5-187-9185 | 5 | 187 | 9185 | 244 | 2201 | 343 |
| FC-6-187-8790 | 6 | 187 | 8790 | 244 | 1805 | 843 |
| FC-6-187-9085 | 6 | 187 | 9085 | 244 | 1855 | 343 |
| FC-7-187-8535 | 7 | 187 | 8535 | 244 | 1559 | 343 |
| FC-5-210-6135 | 5 | 210 | 6135 | 273 | 1551 | 343 |
| FC-5-210-6825 | 5 | 210 | 6825 | 273 | 1701 | 343 |
| FC-5-210-7075 | 5 | 210 | 7075 | 273 | 1751 | 343 |
| FC-5-210-7325 | 5 | 210 | 7325 | 273 | 1801 | 343 |
| FC-5-210-7825 | 5 | 210 | 7825 | 273 | 1901 | 343 |
| FC-5-210-9185 | 5 | 210 | 9185 | 273 | 2201 | 343 |
Characteristics:
Front tipping telescopic hydraulic cylinder for dump truck combined with its many years of experience in global markets, using its proprietary design and processing technology, the front hydraulic cylinder structure performance improvements:
1. A new generation of series products, hydraulic cylinder diameter larger, stronger lifting force ;
2. Through special processing, dedicated high-quality, high-precision steel pipe material, the maximum working pressure of 3000 psi, the flexural capacity is stronger ;
3. New guide ring structure with advanced sliding material, make the hydraulic cylinder lifting more smooth, long service life.
FAQ:
| Questions: | Answers: |
| 1. Does your products come with a warranty? | Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem. |
| 2. Can I customize our products from your factory? | Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings. |
| 3. Can I get samples to test before starting cooperation? | Of course, we would like to produce sample hydraulic cylinder for your confirmation. |
| 4. How many days will samples be finished? | Generally, 5-7 days for samples making. |
| 5. I want to see your hydraulic cylinders, where is your factory? | Our factory located in Qingdao City, Shandong Province. |
Product Show:
