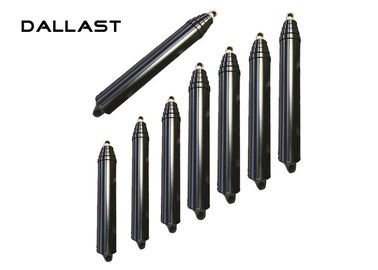

Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery

Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery

    • Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery
    • Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery
    • Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery
  • Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Pressure Environment: Medium Pressure Model No.: Customized
    Acting Way: Single Acting Material: Stainless Steel
    Working Method: Straight Trip Working Pressure: 16-32 Mpa
    Stroke: Long Stroke Test: 100% Test
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder



    Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery



    Single acting hydraulic cylinder inner workings and uses

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    We have technology terms and can design drawing according to provided information for your review.

    We are solding our products to nearly the whole global.

    Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got

    your inquiry.Thank you!



    Parameters:



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    220-5E-7130 5 16-19 220 7130 65-100 7.8-8.5
    220-5E-9030 5 16-19 220 9030 65-100 10.0-11.0
    Customization is also available according to your requirements.





    Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery



    Model Type Industrial Machinery
    Certificate ISO9001&TS16949:2009
    Body Material Alloy Steel,Stainless Steel
    Stage 1-5 stages or As required
    Pressure 16Mpa-22Mpa
    Total Stroke 300-9093MM
    Surface Treatment Chrome Plating
    Service Range Interchangeable with Hyva,Penta,Edbro
    Vehical Body Length 500-12000
    Package Shrink Film,Pallet,Plywood case and carton
    Warranty One year
    Payment Terms T/T, Western Union, D/P, L/C
    Delivery Time 15-25 Days
    Color Red, Black, Blue, etc.



    Key specifications:

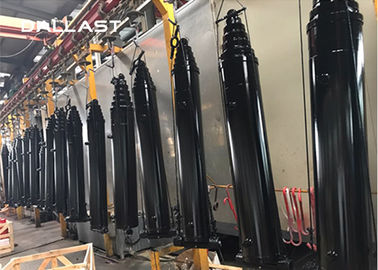

    Dallast has a strong commitment to supply the world-class quality products, our factory has strict control system, advanced production equipment, including Kuka robots, friction welding machine and advanced CNC processing center and more.

    Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.

    Dallast has a complete range of front-end cylinders: with cover (FC), top eye (FE), top and bottom eye(FEE) with max. Lifting capacity up to 120 tons.

    Characteristics:


    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    The information about our company:

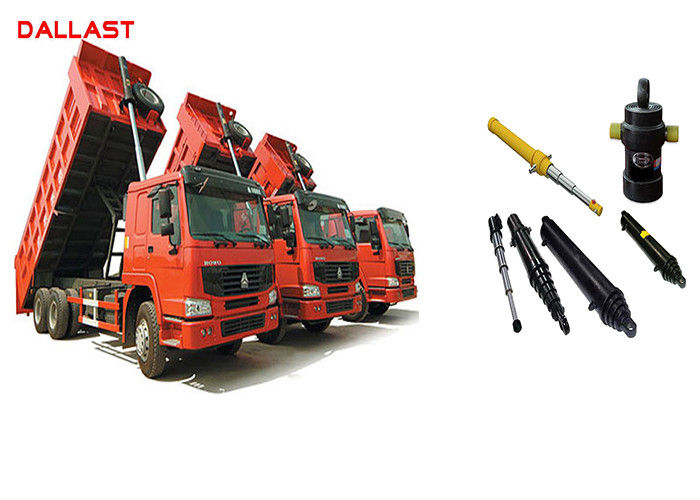

    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    FAQ:



    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer with Exporting License.



    Q2: How long have you been in Hydraulic Cylinder industry?

    A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.



    Q3: How long is your warranty period?

    A3: We offer 13 months warranty period after on board.



    Q4: How long does it take to process orders?

    A4: It usually takes 15-25 days to process. We don’t have stock.



    Q5: What’s your cylinder PPM?

    A5: 5000 PPM. We do 100% inspection before delivery.



    Q6: Have you been exported to overseas?

    A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.





    Product Show:



    Single Acting Hydraulic Ram Telescopic Hydraulic Lift Cylinder for Industrial Machinery
