Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery

Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery

    • Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery
    • Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery
    • Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery
  • Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Test: 100% Test Business Type: Manufacturer
    Acting Way: Single Acting Material: Stainless Steel
    Origin: Shandong, China Working Method: Straight Trip
    Delivery Time: 15-25 Days Specification: Customized
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder

    Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery



    Single Acting Hydraulic Cylinder Inner Workings and Uses

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    We have technology terms and can design drawing according to provided information for your review.

    We are solding our products to nearly the whole global.

    Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got your inquiry.Thank you!



    Key Specifications/Special Features:



    Dallast has a strong commitment to supply the world-class quality products, our factory has strict control system, advanced production equipment, including Kuka robots, friction welding machine and advanced CNC processing center and more.

    Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.

    Dallast has a complete range of front-end cylinders: with cover (FC), top eye (FE), top and bottom eye(FEE) with max. Lifting capacity up to 120 tons.

    Characteristics:


    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    The information about our company:

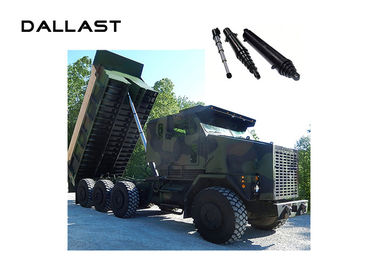

    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    Parameters:


    Dallast Technology Co., Ltd hopes to work together with you, developing in parallel!

    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.

    To get an immediate quotation,please provide us with the following necessary parameters:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    169-4E-5000 4 16-19 169 5000 32-60 6.2-6.8
    169-4E-5460 4 16-19 169 5460 32-60 6.5-7.3
    185-4E-4280 4 16-19 185 4280 25-45 5.6
    185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    220-5E-7130 5 16-19 220 7130 65-100 7.8-8.5
    220-5E-9030 5 16-19 220 9030 65-100 10.0-11.0
    Customization is also available according to your requirements.



    FAQ:



    1. Are you a manufacturer?

    Yes, we have been in this sector for nearly 15 years.



    2. Do your products come with a warranty?

    Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.



    3. Can I customize our products from your factory?

    Yes, we can make products according to your requirements. Please kindly send me your specifications and drawings.



    4. Can you help me to install or give me advice about what kind of hydraulic

    cylinder or power pack should I use for specific machine?

    Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.



    5. How do you deliver the products?

    --By sea

    --By plane

    --By couriers. L/C, D/P, TNT and so on.



    6. How many days the samples can be finished, And how about the mass production?

    --Generally 5-7 days for samples making.

    --The lead time of mass production will depend on quality, production art and so on. Generally15-25 days

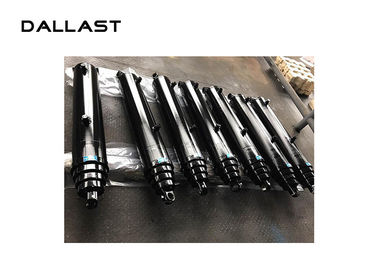

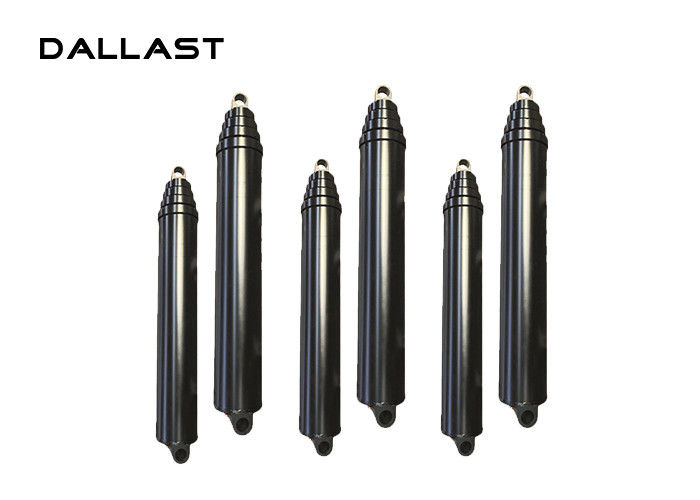

    Product Show:



    Single Acting Sleeve Hydraulic Oil Cylinder for Industrial Machinery
