Place of Origin: | shangdong |
Brand Name: | DALLAST |
Certification: | ISO9001-2009 ,TS16949 |
Model Number: | Customized |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | shrink film, pallet, plywood case and carton |
Delivery Time: | 20- 25 days after down payment |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 50000PCS per year |
Size Customized: | Yes | Stroke: | 3000mm-12000mm |
---|---|---|---|
Structure: | Multi Stage Cylinder | Power: | Hydraulic Oil |
Coating: | All Tubes Are Chrome Plated | Standard: | Nonstandard |
High Light: | dump truck telescopic cylinder,dump trailer hydraulic cylinder |

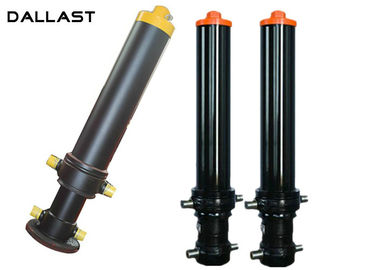

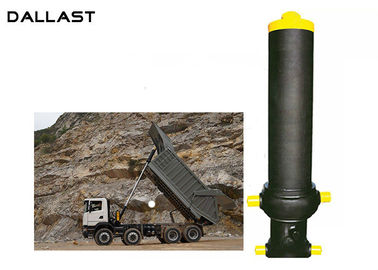

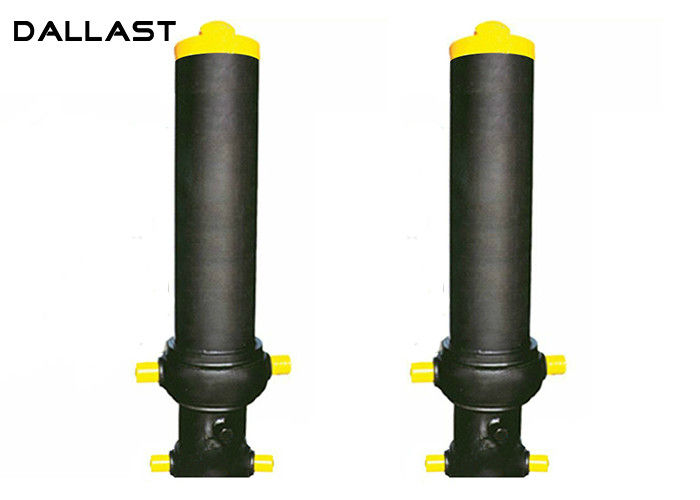

Customized Heavy Duty Long Stroke Tipper Dump Truck Hydraulic Cylinder
HS Code | 8412210000 | Application | Dump truck, Tipper, Trailer |
Working pressure | 16-32MPa | Color | Red black blue gray,or according to customer's requirements |
Material | Alloy Steel,Carbon steel,27SiMn | Seal | Hallite,SKF,NOK,Guarnitec,Parker |
Warranty | 1 year from you receive the goods | Delivery time | 20- 25 days after payment |
Transport Package | Wooden Pallet and Seal Film | Mounting Type | Earring-trunnion, double trunnion, double earring |
An experienced engineer in the design of hydraulic cylinder,we need the following parameters: Bore diameter,rod diameter,working pressure,lifting capacity,open length,closed length....... |
|||||
FC Type Hydraulic Cylinder | |||||
MODEL NO. | Stage | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
(mm) | (mm) | (mm) | (mm) | ||
FC-3-110-3205 | 3 | 110 | 3205 | 168 | 343 |
FC-3-110-3460 | 3 | 110 | 3460 | 168 | 343 |
FC-3-129-2980 | 3 | 129 | 2980 | 218 | 343 |
FC-3-129-3205 | 3 | 129 | 3205 | 218 | 343 |
FC-3-129-3460 | 3 | 129 | 3460 | 218 | 343 |
FC-3-129-3880 | 3 | 129 | 3880 | 218 | 343 |
FC-3-129-4270 | 3 | 129 | 4270 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-4280 | 4 | 129 | 4280 | 218 | 343 |
FC-4-129-5180 | 4 | 129 | 5180 | 218 | 343 |
FC-4-149-3680 | 4 | 149 | 3680 | 218 | 343 |
FC-4-149-3980 | 4 | 149 | 3980 | 218 | 343 |
FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |
These models is our common types,just for you reference . we can customized any size as your request. |
For the selection of hydraulic cylinders, we generally use the hydraulic cylinder in the process of which will be in accordance with the diameter, stroke, the use of pressure, the type of installation to select the hydraulic cylinder, in addition to these in addition to the following points is worth our attention to, first of all hydraulic cylinder After the load speed reaches a certain standard above, you must use the hydraulic cylinder with a buffer device. Or to reach higher speeds must be in the hydraulic cylinder, the installation of deceleration valve. Followed by carefully selected hydraulic oil and seal. Different hydraulic oil droplets with different seals, to ensure the life of the hydraulic cylinder.
Because the hydraulic cylinder to withstand a lot of pressure, the heavier the load, the greater its pressure, therefore, do a good job of hydraulic cylinder maintenance is the most important part of the entire hydraulic system maintenance.
First of all, to rust. Because the hydraulic cylinder piston part of the working state is to stick out of the cylinder, will naturally be oxide, acid gas erosion, which requires us to apply it with the right amount of grease to protect, as a load-bearing parts of the piston Eroded and broken at work.
Second, to open the box to change oil. Because of prolonged use, will inevitably have foreign matter into the hydraulic cylinder, so that friction occurs in use will occur, in addition, the hydraulic oil is also a certain service life, long time do not change the oil will damage or erosion of the hydraulic cylinder.
Therefore, in the work of the hydraulic cylinder to control the speed appropriate, not more than 2m / s, so you can extend the life of the hydraulic cylinder, in addition to the protection of institutions and safety reasons, the internal installation of buffer device for hydraulic cylinder protection is very Effective.
