| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 50000PCS per year |
| Material: | Alloy Steel,Carbon Steel,27SiMn | Mounting Type: | Earring-trunnion, Double Trunnion, Double Earring |
|---|---|---|---|
| Stroke: | 3000mm-12000mm | Transport Package: | Wooden Pallet And Seal Film |
| Structure: | Telescopic Cylinder | ||
| High Light: | telescopic hydraulic ram,hydraulic ram cylinder |
||

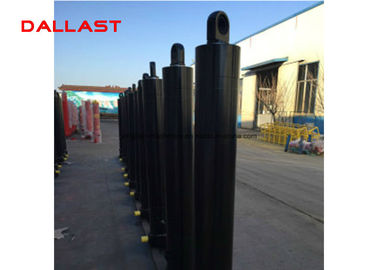

Retractable Stages Heavy Dump Truck Hydraulic RAM Hydraulic Cylinder
HS Code:8412210000
Application:Dump truck, Tipper, Trailer
Material:Alloy Steel,Carbon steel,27SiMn
Power:Hydraulic
Seal:Hallite,SKF,NOK,Guarnitec,Parker
Coating:All tubes are chrome plated
Working pressure:16-32MPa
Color:Red black blue gray,or according to customer's requirements
Warranty:1 year
Delivery time:20- 25 days after payment
An experienced engineer in the design of hydraulic cylinder,we need the following parameters:
| This form is our common types,just for you reference . we can customized any size as your request. | ||||
|

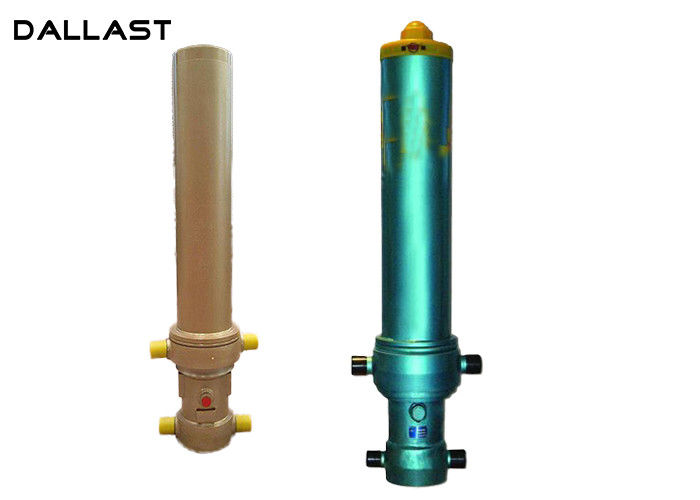

FC Type Hydraulic Cylinder
|
||||
| MODEL NO. | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
| (mm) | (mm) | (mm) | (mm) | |
| FC-3-110-3205 | 110 | 3205 | 168 | 343 |
| FC-3-110-3460 | 110 | 3460 | 168 | 343 |
| FC-3-129-2980 | 129 | 2980 | 218 | 343 |
| FC-3-129-3205 | 129 | 3205 | 218 | 343 |
| FC-3-129-3460 | 129 | 3460 | 218 | 343 |
| FC-3-129-3880 | 129 | 3880 | 218 | 343 |
| FC-3-129-4270 | 129 | 4270 | 218 | 343 |
| FC-4-129-4280 | 129 | 4280 | 218 | 343 |
| FC-4-129-4280 | 129 | 4280 | 218 | 343 |
| FC-4-129-5180 | 129 | 5180 | 218 | 343 |
| FC-4-149-3680 | 149 | 3680 | 218 | 343 |
| FC-4-149-3980 | 149 | 3980 | 218 | 343 |
| FC-4-149-4280 | 149 | 4280 | 244 | 343 |
| FC-4-149-4620 | 149 | 4620 | 244 | 343 |
| FC-4-149-4940 | 149 | 4940 | 244 | 343 |
| FC-4-149-5180 | 149 | 5180 | 244 | 343 |
| FC-4-149-5460 | 149 | 5460 | 244 | 343 |
| FC-4-169-4280 | 169 | 4280 | 244 | 343 |
| FC-4-169-4620 | 169 | 4620 | 244 | 343 |
| FC-4-169-4940 | 169 | 4940 | 244 | 343 |
| FC-4-169-5180 | 169 | 5180 | 244 | 343 |
| FC-4-169-5460 | 169 | 5460 | 244 | 343 |
| FC-5-169-5355 | 169 | 5355 | 244 | 343 |
| FC-5-169-5780 | 169 | 5780 | 244 | 343 |
| FC-5-169-6180 | 169 | 6180 | 244 | 343 |
| FC-5-169-6830 | 169 | 6830 | 244 | 343 |
| FC-5-169-7130 | 169 | 7130 | 244 | 343 |
| FC-5-169-7630 | 169 | 7630 | 244 | 343 |
| FC-5-169-8130 | 169 | 8130 | 244 | 343 |
| FC-5-169-9030 | 169 | 9030 | 244 | 343 |
| FC-5-169-9530 | 169 | 9530 | 244 | 343 |
| FC-4-191-5460 | 191 | 5460 | 274 | 343 |
| FC-5-191-5780 | 191 | 5780 | 274 | 343 |
| FC-5-191-6180 | 191 | 6180 | 274 | 343 |
| FC-5-191-7130 | 191 | 7130 | 274 | 343 |
| FC-5-191-7630 | 191 | 7630 | 274 | 343 |
| FC-5-191-8130 | 191 | 8130 | 274 | 343 |
| FC-5-191-9030 | 191 | 9030 | 274 | 343 |
| FC-5-191-9530 | 191 | 9530 | 274 | 343 |
| FC-5-214-7610 | 214 | 7610 | 274 | 343 |
| FC-5-214-9030 | 214 | 9030 | 274 | 343 |
|
FE Type hydraulic cylinder
|
||||
| Model | Stage | Largest Stage Diameter | Stroke | Mounting distance |
| (mm) | (mm) | (mm) | ||
| FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
| FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
| FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
| FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
| FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
| FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
| FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
| FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
| FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
| FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
| FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
| FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
| FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
| FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
| FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
| FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
| FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
| FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
| FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
| FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
| FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
| FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
| FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
| FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
| FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
| FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
| FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
| FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
