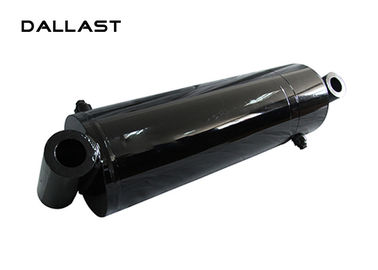

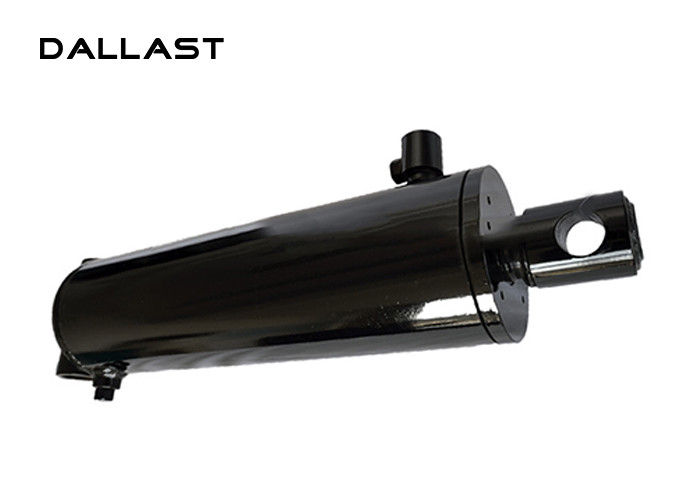

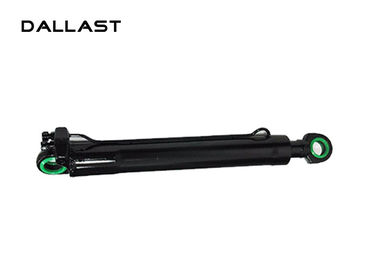

Piston Double Acting Hydraulic Cylinder for Agricultural Machine

Piston Double Acting Hydraulic Cylinder for Agricultural Machine

The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.

Characteristic:

- Modified seal structure, guarantee no oil leak under high pressure and bad

working environments.

- New model stop collar combined with new model guide ring, maximum

limit improve the working security and stability.

- Equiped with maintenance-free support, longer working life, bring you more benefit.

- Adopt "Less component integration" design philosophy, easy to maintain.

- Cylinder is tested 100%, guarantee high quality.

Dallast was established in 1999 as a manufacturer for hydraulic cylinder, offering superior quality of any styles and sizes. ODM and OEM orders are welcomed. With an uncompromising commitment to innovation and excellence, Dallast has earned solid reputation for the effectiveness and reliability. Dallast’s success can be attributed to continuous development and testing of new hydraulic solutions designed to solve your problems of hydraulic equipment.

FAQ

Q: What is the price of the product?
A: Our prices are based on the size ,special treatment and type of mounting style, if you can give me the information,
then we can give you an estimated price is for reference only. We can do any size and any color.

Q: How many years do you warrant?
A: 12 months warranty.

Q: How many years have you done hydraulic cylinders?
A:  More than 10 years.
