Place of Origin: | shangdong |
Brand Name: | DALLAST |
Certification: | ISO9001-2009 ,TS16949 |
Model Number: | Customized |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | shrink film, pallet, plywood case and carton |
Delivery Time: | 20- 25 days after down payment |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 50000PCS per year |
Standard: | Nonstandard | Color: | Can Customized For You |
---|---|---|---|
Coating: | Chrome Plated | Application: | Dump Truck, Tipper, Trailer |
Warranty: | One Year After Receive Goods | Type: | Multi - Stage |
High Light: | telescopic hydraulic ram,hydraulic ram cylinder |

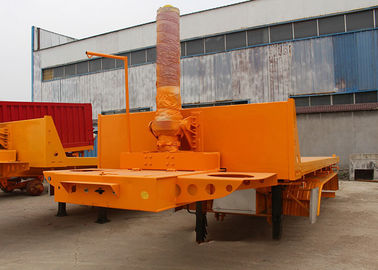

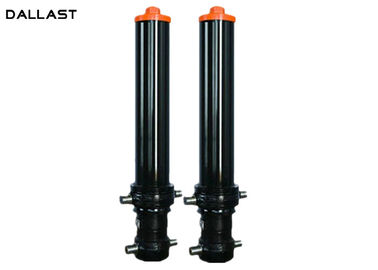

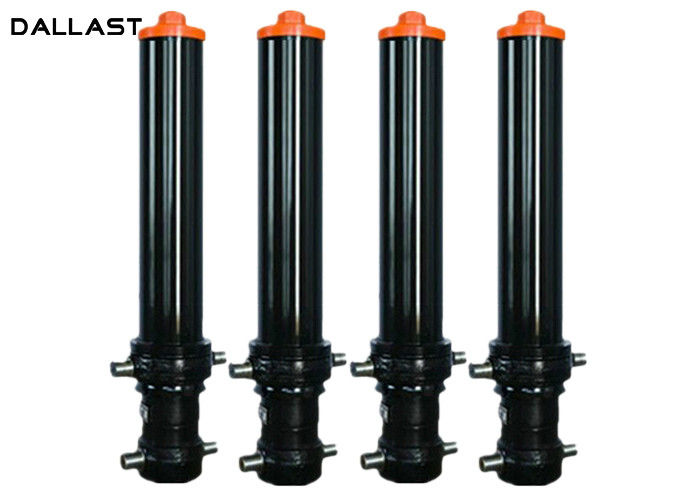

Single Acting 4 / 5 Stage Lifting Tipper Truck Telescopic Hydraulic Cylinder
The front lifting hydraulic cylinder at all levels of the sleeve are unique structural design, lifting the boss limit, heat treatment process and advanced process, with advanced sealing structure and sealing kits to ensure that the high pressure under bad conditions will not cylinder Leakage, coupled with the innovative design of the limit ring, combined with a new type of advanced sliding guide ring, to maximize the safety and stability of the dump truck so that the cylinder lift more smooth, longer service life, more users to use rest assured.
Single acting hydraulics cylinders for dump truck is belong to automotive cylinder series.
The Hydraulic cylinder Featuers:
1. Big lifting force:
Adopt high strength imported materials, work under pressure up to 22 MPa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.
2. High security:
excellent structural design ensure the oil cylinder lift smoothly, improve safety operation and create the most valuable security guarantee for the user;
3. Stronger weather resistance:
The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
4. Best performance:
excellent performance product and longer lifetime brings visible benefit and no worries
HS Code | 8412210000 |
Material of cylinder tube | Alloy Steel,Carbon steel,27SiMn |
Temperature | -30ºC~100ºC |
Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Plunger | 20#, 45# steel ,27Simn |
Seal | Hallite,SKF,NOK,Guarnitec,Parker |
Warranty | One year after shipping arrival |
Delivery time | 20- 25 days after down payment |
Model | Pressure | Bore Dia | A | B | C | D | E | F | L | G | H |
(Mpa) | (mm) | (mm) | (mm) | (mm) | (mm) | mm) | (mm) | (mm) | (mm) | (mm) | |
FC-4TG-E158x4280 | 16 | 158/136/115/95 | 245 | 385 | 360 | 490 | 335 | 272 | 1450 | 195±10 | 420±10 |
FC-5TG-E158x4280 | 16 | 158/136/115/95/75 | 245 | 385 | 360 | 490 | 335 | 272 | 1195 | 195±10 | 420±10 |
FC-4TG-E166x4280 | 16 | 166/141/115/95/75 | 245 | 385 | 360 | 490 | 335 | 272 | 1450 | 195±10 | 420±10 |
FC-4TG-E166x5390 | 16 | 166/141/115/95/75 | 245 | 385 | 360 | 490 | 335 | 272 | 1725 | 195±10 | 420±10 |
FC-4TG-F181x4280 | 20 | 181/158/136/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1460 | 195±10 | 420±10 |
FC-4TG-F181x4650 | 20 | 181/158/136/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1555 | 195±10 | 420±10 |
FC-4TG-F181x5000 | 20 | 181/158/136/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1645 | 195±10 | 420±10 |
FC-4TG-F181x5390 | 20 | 181/158/136/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1740 | 195±10 | 420±10 |
FC-4TG-F181x5790 | 20 | 181/158/136/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1820 | 195±10 | 420±10 |
FC-5TG-F181x4280 | 20 | 181/158/136/115/95 | 245 | 385 | 360 | 490 | 335 | 272 | 1195 | 195±10 | 420±10 |
FC-5TG-F181x5000 | 20 | 181/158/136/115/95 | 245 | 385 | 360 | 490 | 335 | 272 | 1355 | 195±10 | 420±10 |
FC-5TG-F181x5390 | 20 | 181/158/136/115/95 | 245 | 385 | 360 | 490 | 335 | 272 | 1455 | 195±10 | 420±10 |
FC-5TG-F181x5700 | 20 | 181/158/136/115/95 | 245 | 385 | 360 | 490 | 335 | 272 | 1500 | 195±10 | 420±10 |
FC-4TG-F191x4650 | 20 | 191/166/141/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1560 | 195±10 | 420±10 |
FC-4TG-F191x5000 | 20 | 191/166/141/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1645 | 195±10 | 420±10 |
FC-4TG-F191x5390 | 20 | 191/166/141/115 | 245 | 385 | 360 | 490 | 335 | 272 | 1740 | 195±10 | 420±10 |
FC-4TG-F191x6000 | 20 | 191/166/141/115 | 260 | 405 | 340 | 470 | 325 | 244 | 1890 | 215±10 | 420±10 |
FC-4TG-F191x4650 | 20 | 191/166/141/115 | 265 | 405 | 360 | 490 | 345 | 260 | 1555 | 215±10 | 420±10 |
FC-4TG-F206x6000 | 20 | 206/181/158/136 | 280 | 420 | 360 | 490 | 345 | 272 | 1900 | 230±10 | 420±10 |
FC-5TG-F206x6180 | 20 | 206/181/158/136/115 | 270 | 410 | 360 | 490 | 325 | 272 | 1630 | 220±10 | 420±10 |
FE Type hydraulic cylinder
|
||||
Model | Stage | Largest Stage Diameter | Stroke | Mounting distance |
(mm) | (mm) | (mm) | ||
FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
