|Place of Origin:||Shandong China|
|Certification:||GS CE ISO9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Part:||Hydraulic Cylinder||Installation:||Front End Loader|
|Certificate:||ISO9001:2008||Work Temperature:||Normal Temperature|

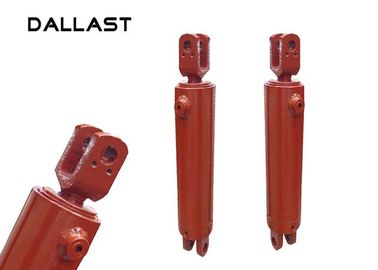

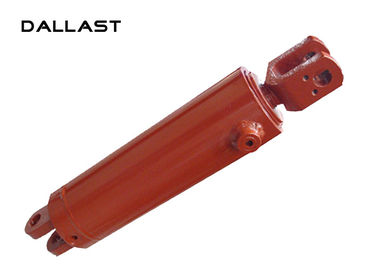

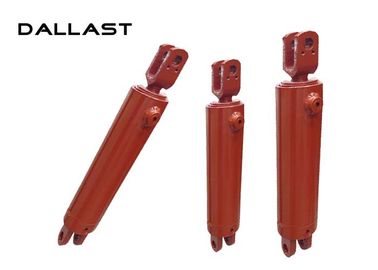

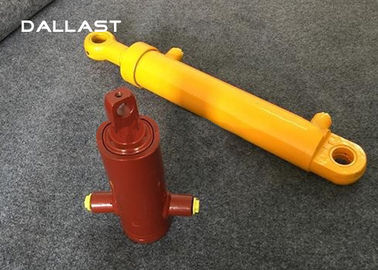

CE Industrial Hydraulic Cylinder Crawler Loaders Earring Telescopic Sleeve
|Application:||Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.|
|Stroke:||50mm to 16000mm|
|Bore:||40mm to 1000mm|
|Shaft:||12mm to 500mm|
|Work pressure:||16Mpa to 70Mpa|
|Seal:||Hallite, Parker, Merkel,|
|Paint:||Red, Grey, Yellow, Black, etc.|
|Material:||St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.|
|Certificate:||ABS, Lloyds, SGS, etc.|
|Package:||Bubble-wrap packing, then in wooden case.|
OEM service provided.
We also can design by ourselves.
We also produce hydraulic system, hydraulic power units.
Not only we could manufacture all kinds of hydraulic cylinders according to the drawing from our customers, but also we could make a design according to customer's requirements. If you
require our engineer to make a design,pls advise us the following specification:
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness ,
Surface hardness etc .
11. Painting and other spare parts requirements .
How to order our products?
We will recommend the most suitable machines for you after informed by your
We will supply you detail quotation according to the products you consulted,
with the best quality and most competitive price.
(3) Process Evaluation
Both sides carefully evaluate and discuss all the details (including technical parameters,
specifications and business items) of the order to exclude any misunderstanding.
(4) Placing Order
If without any doubt, we will send you the PI( Proforma Invoice), and then both sides
will sign a sales contract.
We will arrange the production as soon as receiving your signed sales contract and
prepayment.The latest news about production will be updated and informed to the
buyer during the production.
(6) Quality Control
The whole production procedure will be under regular inspection and strict quality
The complete machine will be tested to make sure they can work very well before
being out of factory.
We will arrange the delivery as the terms we both agreed with and after the confirmation
by the buyer.
(8) Custom Clearance
We will supply and deliver all the necessary shipping documents to the buyer and
ensure a smooth customs clearance.
Contact Person: Sherry Yang
