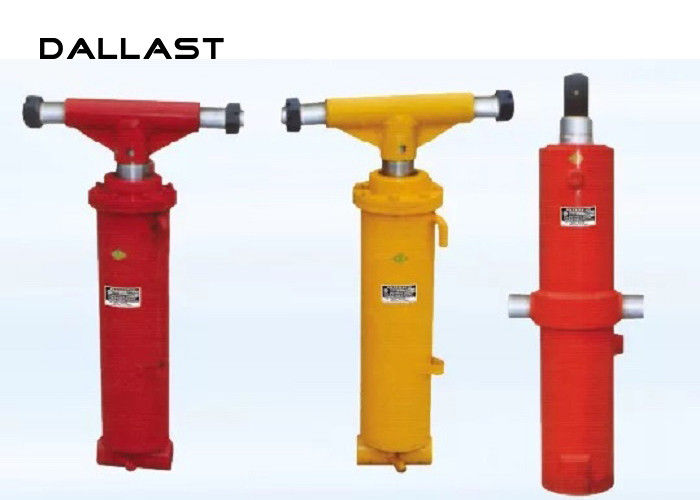

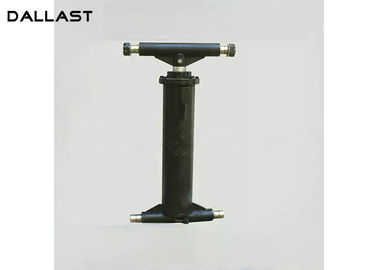

Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder

Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder

    • Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder
    • Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder
  • Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 3000PCS per year
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Pressure Direction: Double-acting Cylinder
    Stroke: 630mm Length: 965mm
    Standard: Nonstandard Cylinder Diameter: 160mm
    HS Code: 8412210000 Warranty: One Year After Shipping Arrival
    High Light:

    custom hydraulic cylinders

    ,

    hydraulic ram cylinder

    Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder



          We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:

    • Construction Machinery cylinders : loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.
    • Metallurgical Machinery cylinders : decelerator, tile press etc.
    • Mining Machinery cylinders : crasher, coal cutter etc.
    • Agricultural & forestry machinery cylinders : soil preparation machine, harvester, weeder etc.

    Manufacturing capability

    • Complete CNC Machining capabilities
    • Bore size from 40mm to 800mm,
    • Stroke lengths to 12000mm or longer
    • Working pressures to 42Mpa
    • Customized your needed hydraulic cylinder

    How do we ensure product quality?

          piston rod:

         1: hard chrome plating
         2: thickness of 0.03-0.05mm;
         3: in-house salt spray test

         cylinder tube:

         1: standard material-#45, SAE1045, CK45
         2. surface roughness: Ra0.4-0.08micron

         Seals:NOK, Hallite, Parker etc.

         Welding:mannual & machine welding



    Application Dump truck, Tipper, Dump Trailer
    Material of cylinder tube Alloy steel,Carbon steel,27SiMn
    Seal Hallite,SKF,NOK,Guarnitec,Parker
    Coating chrome plated
    Working pressure 16MP, 18MP or 22MP for your selection
    Stroke 630mm, 735mmm,750mm,900mm or per your requirements
    Color Red black blue gray,or according to customer's requirements
    Mounting type Earring-trunnion, double trunnion, double earring,or per customer's request
    Package Shrink film, wooden pallet and carton
    Delivery time 30 days after payment receiving

    Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder

    General model as below:



    Type

    Strock

    (mm)

    SizeA

    (mm)

    SizeB

    (mm)

    SizeC

    (mm)

    SizeD

    (mm)

    SizeE

    (mm)

    SizeF

    (mm)

    SizeG

    (mm)

    Theoretical pull
    HG-F220*900RZ 900 1217 75 100 53 28 365 485 76.026
    HG-F220*750RZ 750 1075 70 100 45 25 300 450 62.831
    HG-F220*750RZ 750 1075 60 50 45 25 335 450 40.715
    HG-F220*735RZ 735 1075 70 50 45 25 335 450 40.715
    HG-F220*630RZ 630 965 60 70 45 25 335 450 32.170





    Under Body Dumper Hoist with Piston Telescopic Hydraulic Cylinder
