Place of Origin: | shangdong |
Brand Name: | DALLAST |
Certification: | ISO9001-2009 ,TS16949 |
Model Number: | Customized |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | shrink film, pallet, plywood case and carton |
Delivery Time: | 20- 25 days after down payment |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 3000PCS per year |
Standard: | Nonstandard | Special Cylinder Type: | Piston Cylinder |
---|---|---|---|
Type: | YHG1 | Surface Coating: | Sandblasting, Primer Paint, Middle Paint, Finish |
Cylinder Case: | Carbon Steel, Alloy Steel, Stainless Steel | HS Code: | 8412210000 |
High Light: | excavator hydraulic cylinder,horizontal hydraulic cylinder |

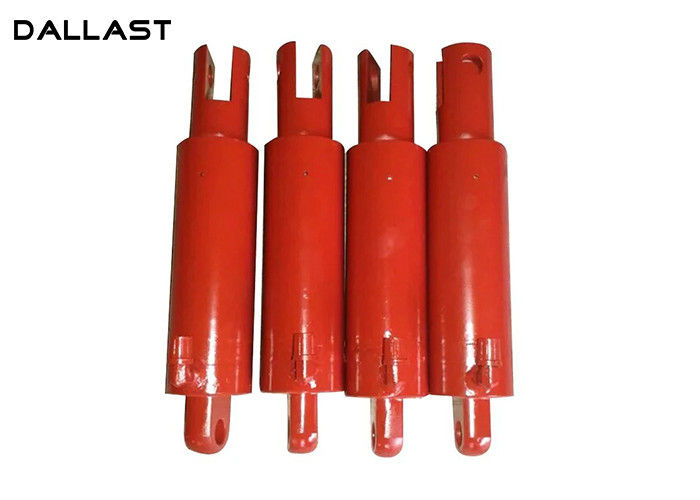

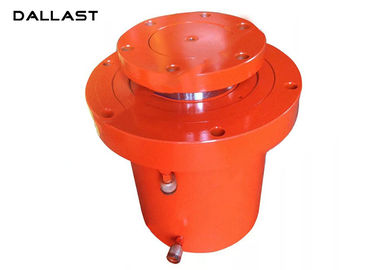

Product Features:
For metallurgy, mining equipment and other hydraulic systems
Bore Diameter:100mm
Piston Rod Diameter:55mm
Stroke:600mm
According to user requirements, design and manufacture of this series of derivative products.
Bore Diameter (mm) | Rod Diameter (mm) | Working pressure 16MPa
| Max. Stroke (mm)
| ||||
speed | Thrust F1(KN) | Pull F2(KN) | Normal Dia | Connection thread | |||
1.46 | 2 | 1.46 | 2 | ||||
40 | 22 | 28 | 20.11 | 14.02 | 10.25 | 10 | M18x1.5 |
50 | 28 | 36 | 31.42 | 21.56 | 15.13 | 10 | M18x1.5 |
63 | 36 | 45 | 49.88 | 33.59 | 24.43 | 15 | M27x2 |
80 | 45 | 56 | 80.42 | 54.98 | 40.99 | 15 | M27x2 |
90 | 50 | 63 | 101.79 | 70.37 | 51.91 | 15 | M27x2 |
100 | 56 | 70 | 125.66 | 86.21 | 64.08 | 20 | M33x2 |
110 | 63 | 80 | 152.05 | 102.18 | 71.63 | 20 | M33x2 |
125 | 70 | 90 | 196.35 | 134.77 | 94.56 | 20 | M33x2 |
140 | 80 | 100 | 246.30 | 165.88 | 120.64 | 25 | M42x2 |
150 | 85 | 105 | 282.74 | 191.95 | 144.20 | 25 | M42x2 |
160 | 90 | 110 | 321.70 | 219.91 | 169.65 | 25 | M42x2 |
180 | 100 | 125 | 407.15 | 281.49 | 210.80 | 32 | M48x2 |
200 | 110 | 140 | 502.65 | 350.60 | 256.53 | 32 | M48x2 |
220 | 125 | 160 | 608.21 | 411.86 | 286.51 | 32 | M48x2 |
250 | 140 | 180 | 785.40 | 539.10 | 378.25 | 40 | ø40 |
280 | 160 | 200 | 985.20 | 663.50 | 482.55 | 40 | ø40 |
320 | 180 | 220 | 1286.80 | 879.65 | 678.58 | 40 | ø40 |
