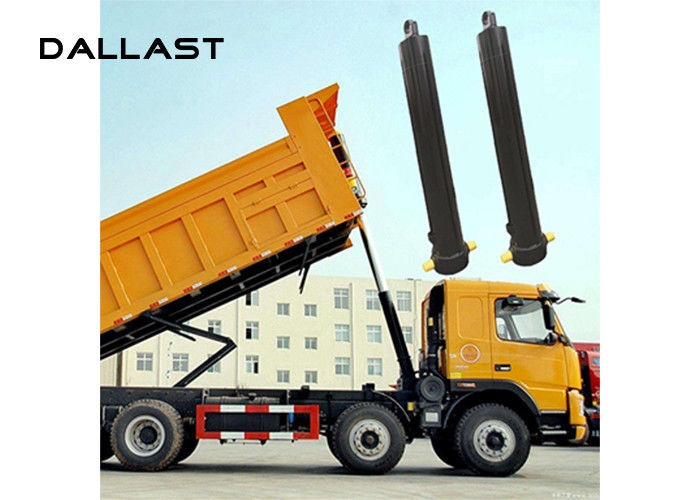

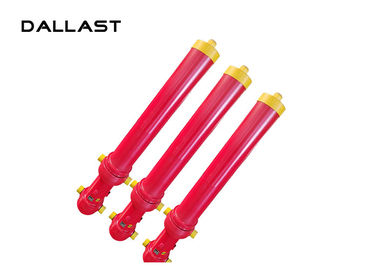

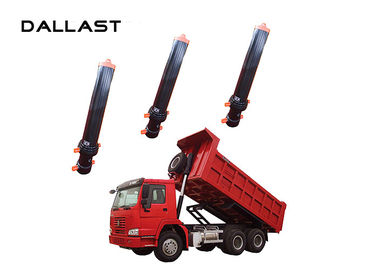

Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder

Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder

    • Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder
    • Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder
    • Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder
    • Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder
  • Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Structure: Telescopic Sleeve Cylinder Acting Way: Single Acting
    Color: Client's Request Model Number: Customzed
    Structure: General Cylinder Seals: Hallite, NOK
    Capacity: OEM, ODM, Sample Service: After-sale Service
    Type: Single Acting Hydraulic Cylinder Rod Seal: Polyurethane U-Cup
    High Light:

    telescopic hydraulic ram

    ,

    custom hydraulic cylinders



    Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder





    Why can you rely on Dallast.

    Our principles: Sincerity; Professional; Diligence; Persistance.

    As a professional team, our company Dallast has been delivering and exporting assorted of hatch cover accessories and marine equipment over 10 years and we grows gradually and steadily.

    As a sincere team, our company looks forward to long term and mutual benefit cooperation with our clients.

    Quality and prices are our focus because we know what you will care at most.

    Quality and service will be your reason to trust us because we believe they're our life.

    You can get competitive prices from us because we possess big manufacturing relationship in China.



    color Client's Request
    product material high manganese steel  27Simn  45# steel
    working pressure 5-36MPa
    min order 1 piece
    supply ability according to customers/ request produce
    delivery time within 15-25 days after contract establish
    warranty time  one year
    main markets south Asia/ Mid East/ Africa/ Southeast Asia/ North America/ South America
    application dump truck
    stroke 300-10000



    Information:

    FC type

    no Models Extension Bore Dia Stroke Top trunnion Bottom trunnion Lug dia Closed length Pressure
    ID OD ID OD
    1 4TG-F172*4280ZZ-00 4 172 4280 340 470 245 385 60 343 20
    2 4TG-F182*4280ZZ-00 4 182 4280 340 470 245 385 60 343 20
    3 5TG-F196*6180ZZ-00 5 196 6180 360 490 270 400 60 343 20
    4 5TG-F206*7300ZZ-00 5 206 7300 360 490 270 400 65 343 20

























    FE type

    Model Stage Largest Stage Diameter

    Stroke

    Mounting distance
    DALLAST FE-3-110-3205 3 110mm 3205mm 1449mm
    DALLAST FE-3-110-3460 3 110mm 3460mm 1609mm
    DALLAST FE-3-129-3460 3 129mm 3460mm 1449mm
    DALLAST FE-3-129-3880 3 129mm 3880mm 1609mm
    DALLAST FE-3-149-2900 3 149mm 2900mm 1320mm
    DALLAST FE-3-149-3200 3 149mm 3200mm 1420mm
    DALLAST FE-3-149-3500 3 149mm 3500mm 1520mm
    DALLAST FE-3-149-3880 3 149mm 3880mm 1644mm
    DALLAST FE-4-149-4280 4 149mm 4280mm 1450mm
    DALLAST FE-4-149-4940 4 149mm 4940mm 1529mm
    DALLAST FE-4-149-4620 4 149mm 4620mm 1484mm
    DALLAST FE-4-169-4280 4 169mm 4280mm 1394mm
    DALLAST FE-4-169-4450 4 169mm 4450mm 1437mm
    DALLAST FE-4-169-4620 4 169mm 4620mm 1479mm





    Good choice for our hydraulic cylinder
    1. With Rolling technology, the cylinder are straighter, the surface are harder and its quality are more durable.



    2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid.



    3. Using imported materials for seal kits.



    4. The structure kits are made by high-strength Manganese plate



    5. Advanced surface treatment:
    A. Environmental automatically pipelined painting
    B. Cleaning with automatic washing machine
    C. Assembling in seal clean workshop





    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example chromating film thickness ,
    Surface hardness etc .
    11. Painting and other spare parts requirements .



    Multi Stage Telescopic Hydraulic Cylinder , Single Acting Dumper Hydraulic Lift Cylinder
