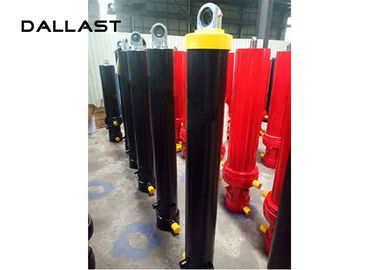

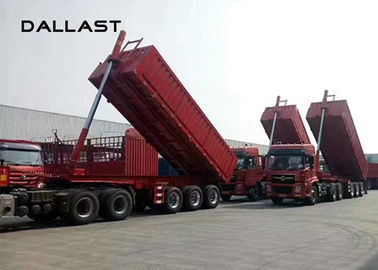

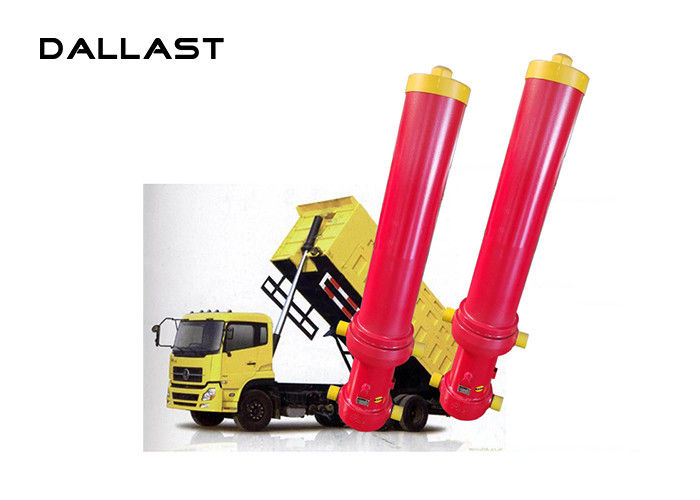

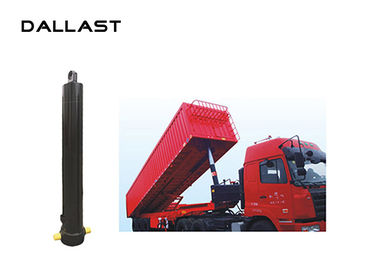

Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston

Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston

    • Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston
    • Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston
    • Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston
    • Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston
  • Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Structure: Telescopic Sleeve Cylinder Acting Way: Single Acting
    Color: Any Color Hydraulic System: Multi-Stage
    Body Material: Stainless Steel Seals: Hallite, NOK
    High Light:

    custom hydraulic cylinders

    ,

    hydraulic ram cylinder



    Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston





    Product advance

    1. ST52,16Mn,45#,20# tube

    2. Chrome plated thickness >25 mircron

    3. Single/double acting

    4. 3~5 stages cylinder

    5. Working Pressure:16~22Mpa or more high pressure

    6. Various mounting type

    7. Easy installation

    8. High quality guarantee

    9. Low friction seals

    10. Constant speed and force





    Color more color
    Product material high manganese steel
    Working pressure 5-36MPa
    Min order 1 piece
    Supply ability according to customers/ request produce
    Delivery time within 15-25 days after contract establish
    Warranty time  one year
    Main markets south Asia/ Mid East/ Africa/ Southeast Asia/ North America/ South America







    FE Type hydraulic cylinder
    No Model Stage Largest Stage Diameter Stroke Mounting distance
    1 FE-4-169-5000 4 169 5000 1574
    2 FE-4-169-5180 4 169 5180 1604
    3 FE-5-169-5355 5 169 5355 1394
    4 FE-5-169-5780 5 169 5780 1559
    5 FE-5-169-6180 5 169 6180 1527
    6 FE-5-169-6480 5 169 6480 1604
    7 FE-5-169-6830 5 169 6830 1674
    8 FE-5-169-7130 5 169 7130 1769
    9 FE-5-191-6180 5 191 6180 1527
    10 FE-5-191-9030 5 191 9030 2177
    11 FE-6-191-7420 6 191 7420 1677
    12 FE-5-214-6830 5 214 6830 1662
    13 FE-5-214-7130 5 214 7130 1722





    FC Type hydraulic cylinder
    MODEL NO. Stage Largest Moving Stage Diameter(mm) Stroke
    (mm)
    The largest sleeve OD(mm) Mounting distance(mm)
    FC-3-110-3205 3 110 3205 168 343
    FC-3-110-3460 3 110 3460 168 343
    FC-3-129-2980 3 129 2980 218 343
    FC-3-129-3205 3 129 3205 218 343
    FC-3-129-3460 3 129 3460 218 343
    FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-5180 4 129 5180 218 343
    FC-3-149-4270 3 149 4270 244 343



    QC:

    1. With Rolling technology,the cylinder are straighter ,the surface are harder and its quality are more durable .



    2. All piston rod have to go through comprehensive processing : Heating →Vehicle processing→ Grinding→Polishing→Plating hard chrome→Polishing , this comprehensive processing make the cylinder harder ,wearable and acid .



    3. Using imported materials for seal kits .

    4. The structure kits are made by high-strength manganese plate



    5. Andvanced surface treatment :

    a. Environmental automatically pipelined painting

    b. Cleaning with automatic washing machine

    c.  Assembling in seal clean workshop



    Future:


    Hydraulic cylinder
    1. Seals:Parker/Nok/Hallite
    2. Rod : Chrome plated and quenched. Has good mechanical properties, long service life;
    3. Cylinder: honing machining /boring /rolling;
    4. Ballblast for paint ;
    5. Short Delivery Time ;
    6. Warranty: One year;



    Mounting way:
    1. Front and end of earring;
    2. head fixed with flange;
    3. end fixed with flange;
    4. vertical to axis foot type;
    5. middle fixed with pendulum shift;
    6. end with single earring;
    7. according to your demand.


    Price and technical solutions :
    In order for you to get a better price and technical solutions. Please provide the following required parameters:
    1. bore diameter;
    2. rod diameter;
    3. stroke;
    4. working pressure;
    5. front and back end mount type;
    6. using frequency;
    7.Work Environment;
    Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.







    FAQ:
    1: What Terms of Payment?
    A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted



    2: What certificates are available in Machinery?
    A: For the certificate, we have CE, ISO, EPA(USA)CCC



    3: What about the delivery time?
    A: 15 days after receiving the payment.



    4: What about the warranty time?
    A: 1 year



    5. What about the Minimum Order Quantity?
    A: The MOQ is 1 pcs



    Dump Tipper Multi Stage Hydraulic Ram Telescopic Standard Chrome Hydraulic Cylinder Piston
