| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Material: | 45# Steel, 27# SiMn | Color: | Can Custom According Request |
|---|---|---|---|
| Size: | Customized | Working Pressure Pressure: | 16 - 18Mpa |
| Warranty: | One Year | Temperature: | -30ºC~100ºC |
| Usage: | Garbage Truck , Sanitation Station | Structure: | Piston Cylinder |
| High Light: | double acting hydraulic lift cylinder,hydraulic ram cylinder |
||

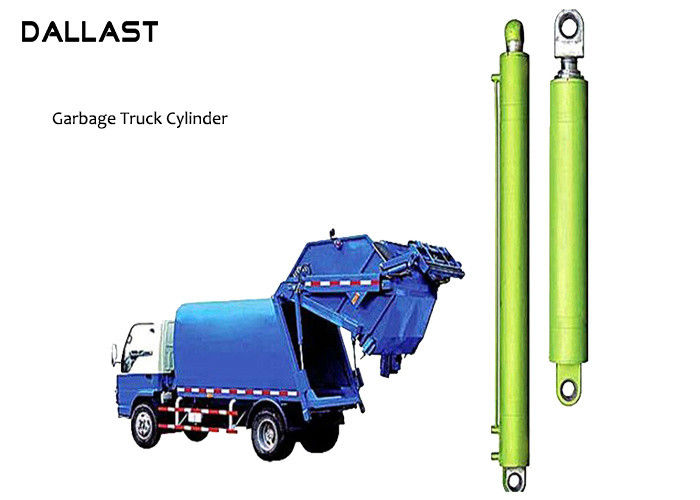

Double Acting Telescopic Sanitation Station Garbage Truck Hydraulic Cylinders
Product Advantage:
Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Push-push cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.
According your request to design and manufacture .
| Model | Name |
Pressure MPa |
Stroke mm |
Bore/Rod mm |
| HSG63/35-110*470 | Flip cylinder |
16 |
110 | 63(35) |
| HSG100/45*800 | Lift cylinder(L / R) | 800 | 100(45) | |
| HSG90/45*485 | Lift cylinder(L / R) | 485 | 90(45) | |
| HSG40/20-400*700 | Lock pin cylinder |
18 |
400 | 40(20) |
| HSG80/40*430 | Scraper cylinder(L / R) | 18 | 430 | 80(40) |
| 3HSTG150-1935A*1000 | Multistage double action push plate cylinder |
16 |
1935 |
150/120/90 (135/105/75) |
| 4HSTG180*5500 | Multistage double action sanitation station push plate cylinder | 5500 |
180/150/120/90 (165/135/105/75) |
