| Place of Origin: | Shandong |
| Brand Name: | DALLAST |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Working Method: | Straight Trip | Usage: | Automation And Control |
|---|---|---|---|
| Surfce Coating: | Sandblasting, Primer Paint, Middle Paint, Finish | Color: | Red, Black |
| Material: | Stainless / Alloy Steel | Certification: | Gs, RoHS, Ce, ISO9001 |
| Transport Package: | Plywood Box Or Pallet | Origin: | Shandong, China |
| High Light: | agricultural hydraulic rams,hydraulic ram cylinder |
||

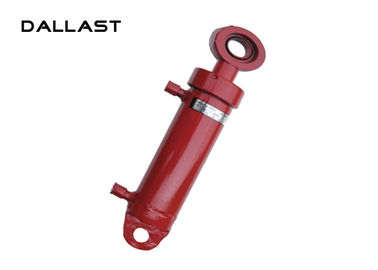

Agricultural Hydraulic Rams for Dump Truck Tipper Truck , Telescopic Hydraulic Ram
How to choose:
1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.
Three advantages for hydraulic cylinder :
1. Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pressure
fluctuations and pressure shock, extend the service life of the parts of the lifting hydraulic system!
2. More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
3. Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
We can design according to user requirements, manufacturing various types of standards, non-standard hydraulic cylinders,long stroke hydraulic cylinder
We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders.
Industrial hydraulic cylinder used for vehicle, machinary, Ship building, metallurgy industry, hydropower station
Maximum Stroke 16m max.
Shaft Diameter 1200mm max.
Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.
|
Agricultural Hydraulic Rams for Dump Truck Tipper Truck , Telescopic Hydraulic Ram
|
||||||
| Model |
Pressure (MPa) |
Strock (mm) |
Bore Diameter (mm) |
Rod Diamter (mm) |
Push(KN) | Pull(KN) |
| HSGK01-160/90 | 16 | 715 | 160 | 90 | 321.7 | 219.9 |
| HSGL01-100/60 | 16 | 1200 | 100 | 60 | 125.66 | 87.65 |
| HSGK01-80/50 | 16 | 700 | 80 | 50 | 101.79 | 70.37 |
| HSGL01-80/50 | 16 | 500 | 80 | 50 | 80.43 | 54.98 |
| HSGL01-63/35 | 16 | 300 | 63 | 35 | 50 | 34.5 |
| HSGL01-50/28 | 16 | 140 | 50 | 28 | 31.42 | 21.56 |
FAQ :
| Questions: | Answers: |
| 1. Does your products come with a warranty? | Yes, we have one-year warranty. During the period, we can send you replacement free of charge if there is quality problem. |
| 2. Can I customize our products from your factory? | Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings. |
| 3. Can I get samples to test before starting cooperation? | Of course, we would like to produce sample hydraulic cylinder for your confirmation. |
| 4. How many days will samples be finished? | Generally, 5-7 days for samples making. |
| 5. I want to see your hydraulic cylinders, where is your factory? | Our factory located in Qingdao City, Shandong Province. |
Company Profile :
Dallast Technology Co., Ltd focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Metallurgy, Truck, etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team, advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. In order to create real benefit for clients, Dallast Technology Co., Ltd will offer a full set of services, such as consulting solutions, products installation, technical support, etc.

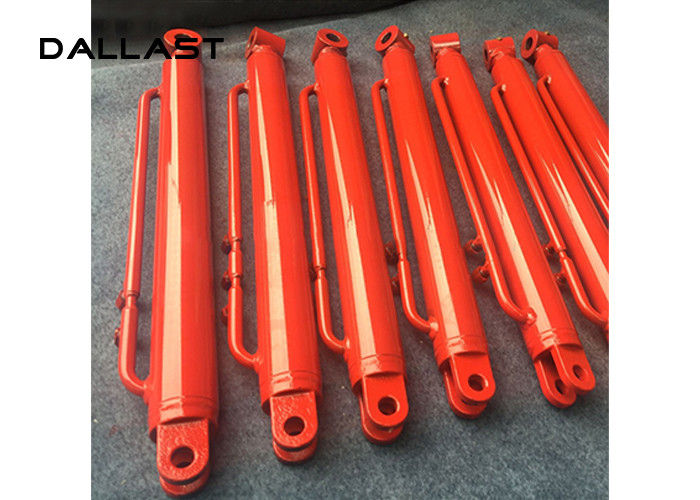

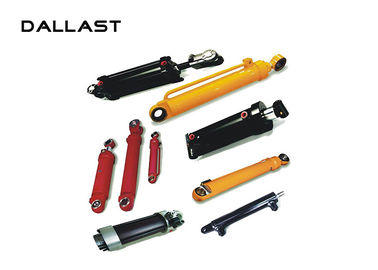

Product Show :
