Home ProductsDouble Acting Hydraulic Cylinder

Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure

Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure

    • Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure
    • Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure
    • Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure
  • Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure

    Product Details:

    Place of Origin: Shandong
    Brand Name: DALLAST
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Pressure Environment: Medium Pressure Color: Any Color
    Standard: Standard, Nonstandard Hardness: HRC 45-55
    Working Method: Straight Trip Delivery Time: 15-25 Days
    Acting Way: Double Acting Work Temperature: Normal Temperature
    High Light:

    double rod hydraulic cylinder

    ,

    double ended hydraulic ram



    Double Acting Welded boom Agricultural Dump Truck Hydraulic Cylinders​​







    How is pressure calculated in a hydraulic cylinder?​



    If you are calculating the pressure you are probably at the design stage of the development of an hydraulic mechanism. You must have already determined, by one means or another, the force acting on the mechanism. Since pressure is, by definition, force divided by area, if the force in Newtons divided by the area of the piston in the hydraulic cylinder being considered, in square millimetres. this will be the pressure required (in Megapascals) to resist that force. It would then be normal for a pressure in excess of that determined to cover contingencies or other known requirements.



    Good Choice for Our Hydraulic Cylinder:



    1. With Rolling technology, the cylinders are straighter, the surface is harder, and its quality is more durable.

    2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing, making the cylinder harder, wearable and acid-proof.

    3. Using imported materials for seal kits.

    4. The structure kits are made by high-strength Manganese plate.

    5. Advanced surface treatment:

    A. Environmental automatically pipeline painting.

    B. Cleaning with automatic washing machine.

    C. Assembling in seal clean workshop.



    Parameter:



    Bore: Φ45mm, Rod: Φ25mm, Stroke: Φ95.25mm

    Working pressure: 16Mpa

    Test pressure: 24Mpa

    Temperature: -10℃- +80℃

    Transmission media: mineral hydraulic oil

    Seals: Parker



    Double Acting Hydraulic Cylinder, High Quality welded hydraulic cylinders series. Professional, and thorough analysis and design to all kinds of oil cylinder through High-tech means
    B.Unique production process and management methods
    C.Imported cushion, sealing element, oil pipe and other components
    D.Holds Many Patents, High quality, high reliability, high service life.



    Double Acting Welded boom Agricultural Dump Truck Hydraulic Cylinders



    Application: Agricultural Machinery, Agricultural Trucks
    Stroke: 200mm to 13000mm
    Bore: 40mm to 800mm
    Shaft: 12mm to 500mm
    Work pressure: 16Mpa to 62Mpa (2250 PSI – 10150 PSI)
    Seal: Hallite, Parker, Merkel, DingZing, etc.
    Paint: Red, Grey, Yellow, Black, etc.
    Material: Stainless Steel
    Certificate: Gs, RoHS, Ce, ISO9001
    Package: Plywood Box or Pallet
    W.P. 160bar

    Tips:

    OEM service provided.

    We also can design by ourselves.



    FAQ:



    1.Are you a manufacturer?

    Yes, we have been in this sector for nearly 15 years. We produce hydraulic cylinder hydraulic power unit for nearly 15 years.



    2.Do your products come with a warranty?

    Yes, we have one-year warranty. In this year, if the quality has any problems we will free repair for you.



    3. Can I customize our products from your factory?

    Yes, we can make products according to your requirements. Please send me your specifications and drawings.



    4. Can you help me to install or give me advice about what kind of hydraulic

    cylinder or power pack should I use for specific machine?

    Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.



    5. How do you deliver the products?

    --By sea.

    --By plane.

    --By couriers.



    6. How many days the samples can be finished, And how about the mass production?

    --Generally, 5-7 days for samples making.

    --The lead time of mass production will depend on quality, production art and so on. Generally 15-25 days.



    Product Show :

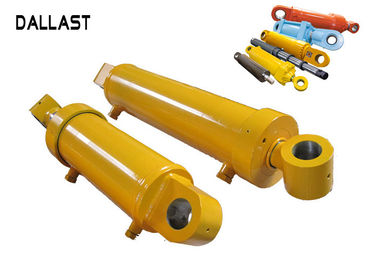

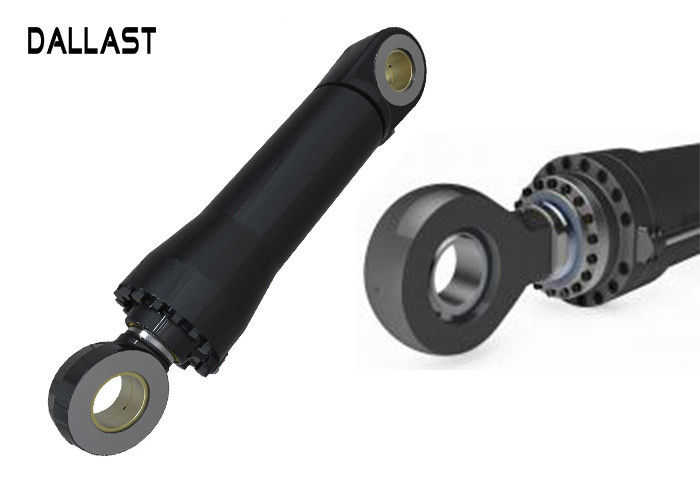

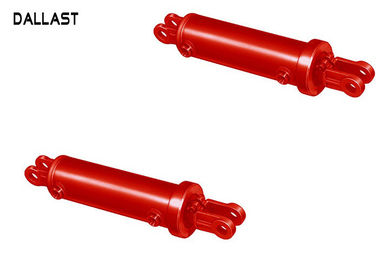

    Welded Boom Agricultural Dump Truck Double Acting Hydraulic Ram Medium Pressure
