Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Condition: | New | Installation Distance: | 550-1500 Mm |
---|---|---|---|
OEM Service: | Available | Mounts: | Standard Female Clevis |
Trademark: | Dallast | Work Pressure: | 16 Mpa, 20 Mpa, 31 Mpa |
Color: | Red, Black | ||
High Light: | double acting hydraulic ram,double rod hydraulic cylinder |

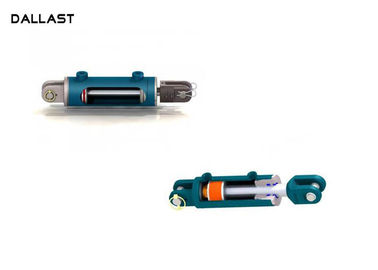

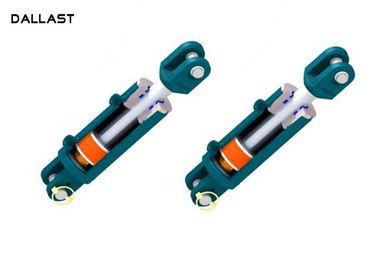

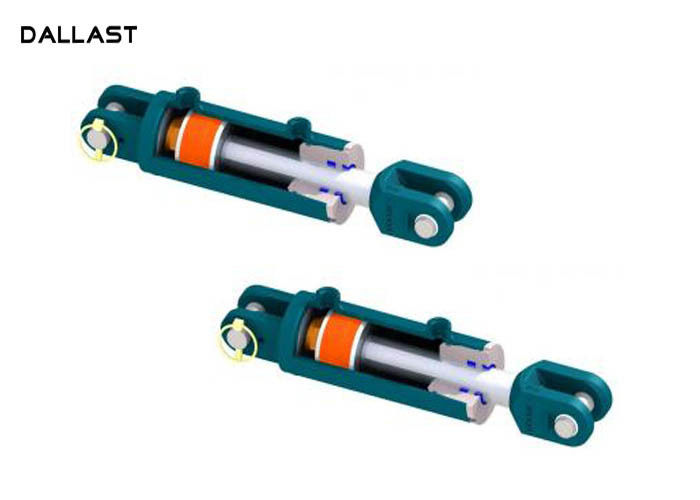

Hydraulic Ram Components Double Acting Hydraulic Cylinder Cat Hydraulic Cylinder
Nominal pressure:25 MPa (250 bar 3625 psi) Static test pressure: 37 MPa (370 bar 5440 psi) Cylinders are designed for normal or high pressure |
|||
Mounting position | Bore size | Stroke | |
Optional | Several bore sizes and in varying strokes; Many of these sizes are available | Depend on the applicatio | |
Operating temperature | Hydraulic fluid | Rod material | |
-30 to +80 degrees Celsius, but the unit should not be used when oil is frozen. | Custom |
All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available.
|
|
Seal | Rod diameter | Certification | |
Parker/Nok/Hallite etc. | Larger diameters vary between 50,000 and 75,000 PSI minimum yield material | ISO9001:2008, SGS, TS16949 |
DALLAST Cylinder is proud of its heritage, with millions of products installed around the world and product lines which are more than twenty-five years old.
In Hydraulic Cylinder section, we manufacture of; Hydraulic Telescopic Cylinders, Double Acting Hydraulic Cylinders, Side Type Hydraulic Cylinders, Front Type Hydraulic Cylinders, Under BDALLAST Cylinder manufacture plants available for Special Size Different Telescopic Cylinder or Hydraulic Cylinder Production. Only you can send us an e-mail about your requests and our professional sales team will help you soon...
Characteristics:
Larger diameter, more lifting capacity. | Maintenance-free support, longer working life. |
Integrated design, easy to maintain. | 100% tested, guarantee high quality. |
Max working pressure reaches 190 bars, better anti-pressure ability. | Special material with high quality, high-precision, better anti-bending ability. |
New model guide ring combined with lubricating material, guarantee smooth lifting. | Modified seal structure, guarantee no oil leak under high pressure and bad working environments. |
Flanges, trunnions, clevises, lugs are common hydraulic cylinder mounting options. The piston rod also has mounting attachments to connect the cylinder to the object or machine component that it is pulling/pushing |
A double-acting cylinder is used in applications where:
Even with applications where gravity (or weight) can assist retraction, hydraulic pressure is often applied to double-acting cylinders to control acceleration, change the rate of travel and cushion the stoppage. Travel in one direction always differs from travel in the other, all things being equal; the push action requires more force and is slower, but more work output is generated. The pulling action is faster, but less work output is created.
Double-acting cylinders also act as a reservoir because fluid flows under pressure to the piston side to extend the hydraulic cylinder. On the return stroke, the fluid flows under pressure to the rod side of the cylinder to retract it. The cylinder is therefore holding most of the fluid, so if you have a limited amount of space in your application, e.g. with DC hydraulic power units, you can effectively use a much smaller reservoir or tank to hold the oil.
