|Place of Origin:||Shandong China|
|Certification:||GS CE ISO9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Shaft Diameter:||0.5" - 4"||Body Material:||Steel,Stainless Steel|
|Duty:||Heavy||Mounts:||Standard Female Clevis|
|OEM Service:||Available||Structure:||Piston Cylinder|
|Certificate:||CE, ISO9001:2008||Color:||Red, Black|
double acting hydraulic ram,
double rod hydraulic cylinder

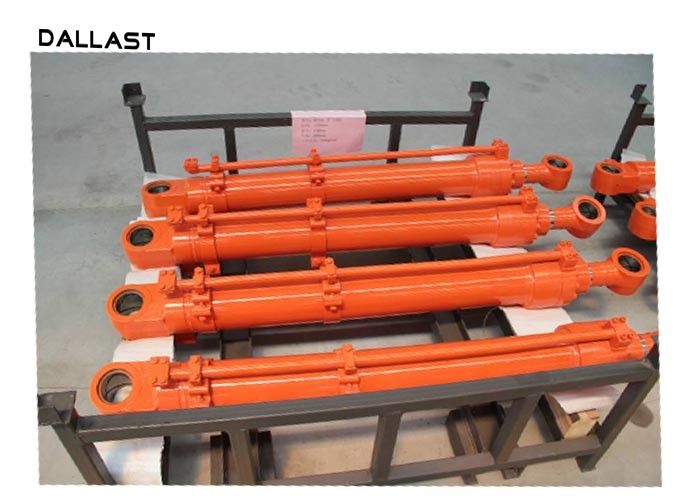

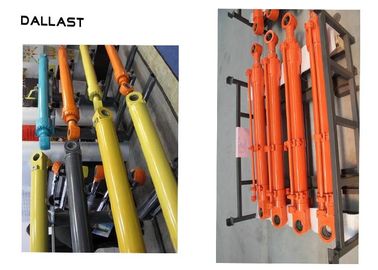

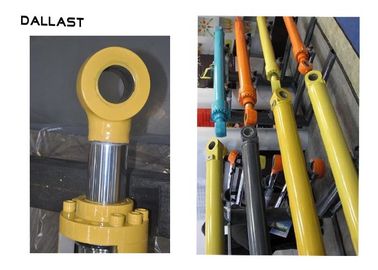

HSG High Pressure 30 Ton Truck Double Acting Ram Hydraulic Cylinder
Agricultural Equipment, Mobile Equipment, Construction Equipment, Forestry Equipment, Lift gate & Snow plow, Material Handling Equipment, On-Highway Trucks, Grounds Care Equipment, Aerial Lifts and Trailers, Medical Chairs and Tables, Trash Compactors, Recycling Bailers, Logsplitters and Many More.
|Type||Double/Single action designs|
Precision Honed cylinder barrels
Specification from 1 inch (25.4 mm) to 9 inch (228.6 mm)
Hard chrome plated ,stainless bar or nitrided steel bar.
Diameter from o.5 inch (12.7 mm) to 4 inch (101.6 mm)
|Stroke||up to 90 inch (2.29 m)|
|End Mounts||Ductile iron, cast steel, steel cross tube,....|
|Mounting style||Female clevises, spherical, flange, bearing, foot mounting,...|
Piston Seal: Hallite, Parker, Aston or domestic seals
ROD Seal: U-cup seals, Hallite, Aston or domestic seals and urethane rod wiper:
Tube Seals: O-ring and backup static seals
Ports: SAE or NPTF
|Paint||Black or red. Custom colors are available.|
Types of Hydraulic Cylinders
Double acting hydraulic cylinders use hydraulic pressure to actuate the rod to extend and retract in both directions.
High pressure hydraulic cylinders have significantly smaller and lighter designs than standard cylinders, which saves substantial weight and space in equipment. High pressure hydraulic cylinders are used in applications that need high forces and short or medium strokes, such as material testing and material transforming.
Hydraulic pistons are short, cylinder shaped discs housed within cylinder barrels to compartmentalize the enclosed space within hydraulic cylinders.
Hydraulic rams are the large output pistons.
Mobile hydraulic cylinders are used in many applications, such as snowplows, construction equipment, personnel lifts and material handling equipment.
Single-acting cylinders use hydraulic pressure to actuate the rod in only one direction.
Telescopic cylinders have multiple stages which enable longer strokes to be achieved, while utilizing less space.
Thread cap cylinders have their head gland threaded on and the threads are protected by an O-ring.
Tie rod hydraulic cylinders use one or more steel rods, which are installed on the outside diameter of the cylinder housing, to provide extra stability. Cylinder tie-rods commonly bear a large portion of the applied load.
Welded hydraulic cylinders are made of a heavy duty, smooth welded housing for increased stability. Most housings of hydraulic cylinders are made of multiple parts, but not in the case of welded cylinders.
We purchase the raw material and spare parts with first class quality and to guarantee that we work long-term suppliers and inspect each batch to make sure all the material and components with high quality.
We spot check for each steps:cutting, lathe, drilling, CNC, welding, grinding, assemble, painting.
100% cylinders finished hydro-pressure test before painting.
Our test content mainly including samples test,performance test,reliability test,disassemble test,endurance test.
