| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Special Cylinder Type: | Piston Cylinder | Type: | YHG1 |
|---|---|---|---|
| Material: | Carbon Steel, Alloy Steel, Stainless Steel | HS Code: | 8412210000 |
| Working Medium: | Hydraulic Oil | Specification: | Custom Made |
| High Light: | telescopic double acting cylinder,hydraulic oil cylinder |
||

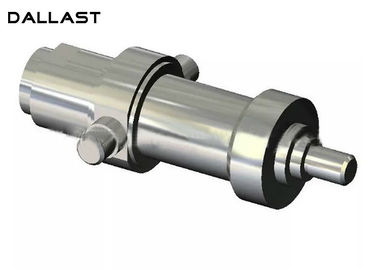

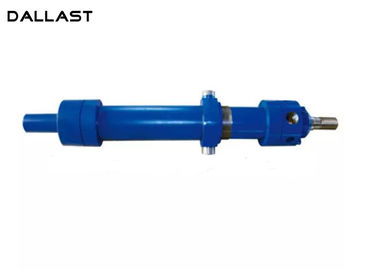

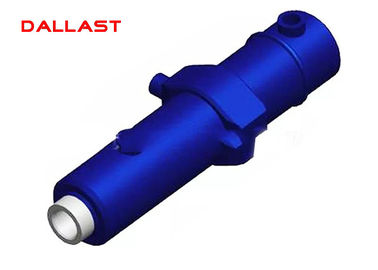

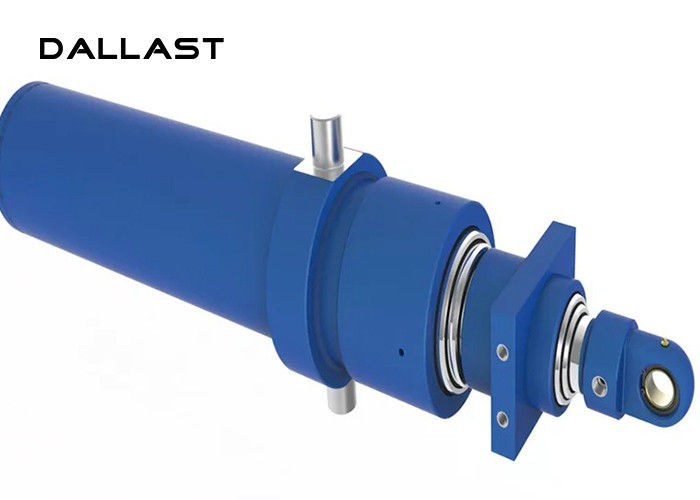

Heavy Duty High Tonnage Metallurgy Industrial Hydraulic Cylinder
Product Features:
Metallurgical equipment standard hydraulic cylinder with a variety of specifications and varieties, bore diameter is generally in the 40-320mm range, working pressure ≤ 16MPa, available hydraulic oil mechanical system loss of oil and emulsion working medium, the use of temperature range of -40 ~ 80 ℃ , The installation of a flange, earrings, pins and other forms and in line with ISO6020 / 1-1981 standards, in addition to tripod (base) type.
Wide range of uses: This series of hydraulic cylinders is suitable for a variety of industrial sectors, such as metallurgy, mining, lifting, transportation, shipping, forging, casting, machine tools, coal, petroleum, chemical, scientific research, military and so on.
According to user requirements, design and manufacture of this series hydraulic cylinders.
Bore Diameter (mm) | Rod Diameter (mm) | Working pressure 16MPa
| Max. Stroke (mm)
| ||||
| speed | Push F1(KN) | Pull F2(KN) | Normal Dia | Connection thread | |||
| 1.46 | 2 | 1.46 | 2 | ||||
| 40 | 22 | 28 | 20.11 | 14.02 | 10.25 | 10 | M18x1.5 |
| 50 | 28 | 36 | 31.42 | 21.56 | 15.13 | 10 | M18x1.5 |
| 63 | 36 | 45 | 49.88 | 33.59 | 24.43 | 15 | M27x2 |
| 80 | 45 | 56 | 80.42 | 54.98 | 40.99 | 15 | M27x2 |
| 90 | 50 | 63 | 101.79 | 70.37 | 51.91 | 15 | M27x2 |
| 100 | 56 | 70 | 125.66 | 86.21 | 64.08 | 20 | M33x2 |
| 110 | 63 | 80 | 152.05 | 102.18 | 71.63 | 20 | M33x2 |
| 125 | 70 | 90 | 196.35 | 134.77 | 94.56 | 20 | M33x2 |
| 140 | 80 | 100 | 246.30 | 165.88 | 120.64 | 25 | M42x2 |
| 150 | 85 | 105 | 282.74 | 191.95 | 144.20 | 25 | M42x2 |
| 160 | 90 | 110 | 321.70 | 219.91 | 169.65 | 25 | M42x2 |
| 180 | 100 | 125 | 407.15 | 281.49 | 210.80 | 32 | M48x2 |
| 200 | 110 | 140 | 502.65 | 350.60 | 256.53 | 32 | M48x2 |
| 220 | 125 | 160 | 608.21 | 411.86 | 286.51 | 32 | M48x2 |
| 250 | 140 | 180 | 785.40 | 539.10 | 378.25 | 40 | ø40 |
| 280 | 160 | 200 | 985.20 | 663.50 | 482.55 | 40 | ø40 |
| 320 | 180 | 220 | 1286.80 | 879.65 | 678.58 | 40 | ø40 |
