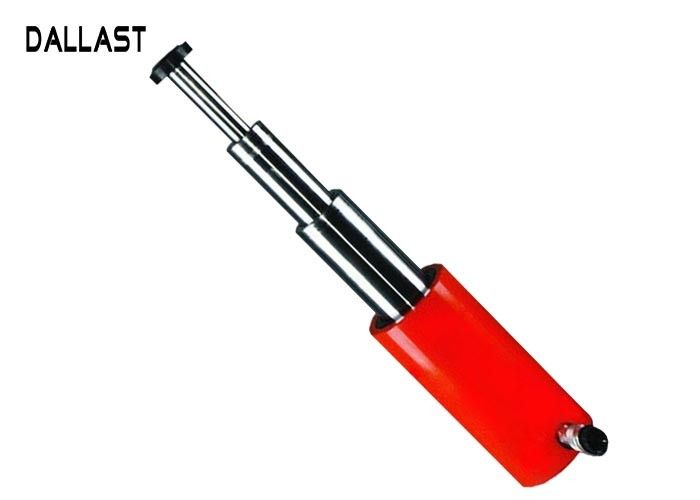

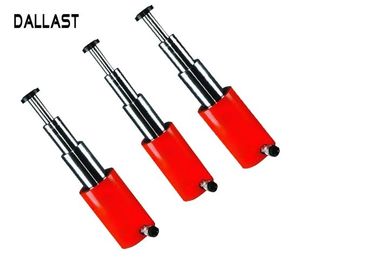

Side Dumper / Tipper Telescopic Hydraulic Cylinder 800-1000 mm Stroke

Side Dumper / Tipper Telescopic Hydraulic Cylinder 800-1000 mm Stroke

    • Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke
    • Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke
    • Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke
  • Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Pressure: 16-35MPa Temperature: Normal Temperature
    Painted: Customized Struction: Telescopic Single Acting
    Stroke: 800-1000mm, Or More Color: Black, Or Customized
    High Light:

    telescopic hydraulic ram

    ,

    hydraulic ram cylinder



    Side Dumper / Tipper Telescopic Hydraulic Cylinder 800-1000 mm Stroke





    Telescopic hydraulic cylinder consists of two or more piston-cylinder assembly, the piston is a cylinder piston cylinder after the cylinder, can get a long working stroke.



    Key features:

    1. Diverse preferences for seals due to temperature or heavy duty usage

    2. Extensive pressure testing

    3. Finished cylinder is sandblasted and painted to customer specifications

    4. Total weights of telescopic cylinders can often reach nearly 100 pounds



    Telescopic hydraulic cylinder working principle:

    Out: From coarse to fine (piston rod);          back: from fine to coarse.

    Reason: According to the size of the piston area, when launched, the coarser piston force area of the largest thrust is also large, naturally it first out. When retracted (external force), the smaller the piston area (or force area) the smaller the resistance, the first retraction.



    Details:

    If you are interested in our products, contact us and send us the drawings:

    The drawing details are as follows.

    A. The drawing details are as follows.
    Bore size

    Stroke length

    Rod diameter

    Mounting type

    Mounting length

    Paint color requirement

    B. The product application description details

    1. Type of machine(loader, steer loader, excavator, and etc.)

    2. Type of function(hoist, swing, steering, and etc.)

    3. Type of structure(piston, telescopic)

    4. Single or double acting
    5. Operating pressure



    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    Warranty:

    We offer 12 months warranty.


    How to choose:
    1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
    2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
    3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
    4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.



    Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke

    Side Dumper / Tipper  Telescopic Hydraulic Cylinder 800-1000 mm Stroke
