| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Usage: | Excavator Construction Machinery | Sructure: | Piston Cylinder |
|---|---|---|---|
| Warranty: | One Year | Delivery Time: | 20- 25 Days After Payment |
| Seal: | Hallite,SKF,NOK,Guarnitec,Parker | Mounting Type: | Double Earring |
| High Light: | hydraulic ram cylinder,hydraulic oil cylinder |
||

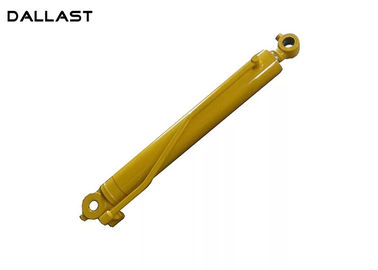

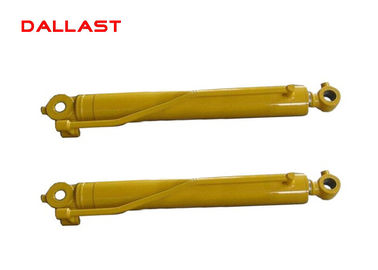

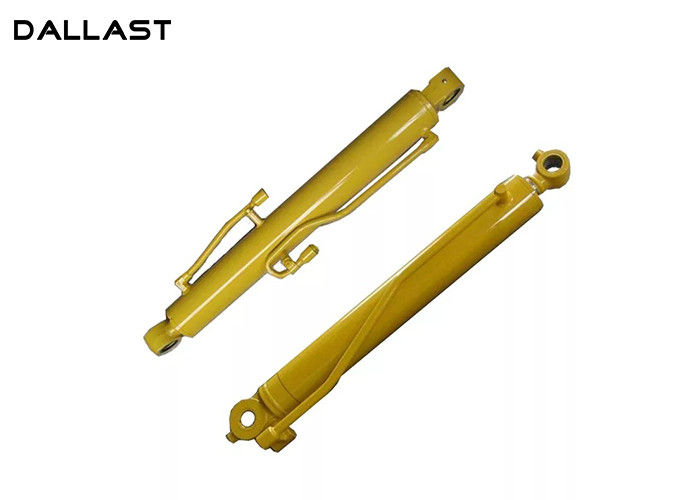

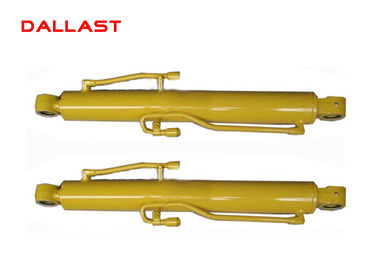

Double Acting Piston Excavator Construction Machinery Hydraulic Cylinder
Features:
1. Easy to operate, easy to maintain
2. Reliable work, high efficiency
3. Solid structure, handsome in appearance
Application:
Large and medium-sized mining, metallurgy, forging, casting, engineering transportation, hydraulic machinery, food processing machinery, machine tools, civil engineering, construction machinery, chemical machinery, medical machinery, injection molding machinery, automated assembly line, Light industry machinery industry.
Terms and Conditions:
1. Everywhere should be kept clean, the piston rod should be regularly cleaned of dust;
2. Working fluid 46 # hydraulic oil, can not use alcohol, diesel, gasoline, etc ;
3. Working fluid application 120 mesh filter, and keep clean, regular inspection replacement;
| Excavator construction machinery hydraulic cylinder | ||||||||||||||
| Bore ofcylinder/mm | Piston rod /mm | Workingpressure 16MPa | Stroke/mm | |||||||||||
| Speed ratio | Push/KN | Pull/KN | ||||||||||||
| 1.33 | 1.46 | 2 | Ratio1.33 | ratio1.46 | ratio2 | |||||||||
| 40 | 25 | 22 | 25 | 20.11 | 15.08 | 14.02 | 12.25 | 500 | ||||||
| 50 | 25 | 28 | 32 | 31.42 | 23.56 | 21.56 | 18.55 | 600 | ||||||
| 63 | 32 | 35 | 45 | 49.88 | 37.01 | 34.48 | 24.43 | 800 | ||||||
| 80 | 40 | 45 | 55 | 80.42 | 60.32 | 54.98 | 42.41 | 2000 | ||||||
| 90 | 45 | 50 | 63 | 101.79 | 76.34 | 70.47 | 51.91 | 2000 | ||||||
| 100 | 50 | 55 | 70 | 125.66 | 94.25 | 87.65 | 64.08 | 4000 | ||||||
| 100 | 55 | 63 | 80 | 152.05 | 114.04 | 102.18 | 71.63 | 4000 | ||||||
| 125 | 63 | 70 | 90 | 196.35 | 146.47 | 134.77 | 94.56 | 4000 | ||||||
| 140 | 70 | 80 | 100 | 246.30 | 184.73 | 165.88 | 120.64 | 4000 | ||||||
| 150 | 75 | 85 | 105 | 284.74 | 212.06 | 191.95 | 144.20 | 4000 | ||||||
| 160 | 80 | 90 | 110 | 321.70 | 241.27 | 219.91 | 169.65 | 4000 | ||||||
| 180 | 90 | 100 | 125 | 407.15 | 305.36 | 181.49 | 210.80 | 4000 | ||||||
| 200 | 100 | 110 | 140 | 502.65 | 376.99 | 350.60 | 256.35 | 4000 | ||||||
| 220 | 110 | 125 | 160 | 608.21 | 456.16 | 411.86 | 286.51 | 4000 | ||||||
| 250 | 125 | 140 | 180 | 785.40 | 589.05 | 539.10 | 378.25 | 4000 | ||||||
Main Products
Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.
