Place of Origin: | Shandong |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union, D/P, L/C |
Supply Ability: | 50,000 Pieces/Year |
Acting Way: | Single Acting | Means Of Transport: | Shipping |
---|---|---|---|
Working Method: | Straight Trip | Hardness: | HRC 45-55 |
Available Temperature: | -40℃ To 80℃ | Usage: | Automation And Control |
Warranty: | One Year | Material: | 20#, 45# Steel, 21#, 27# SiMn |
High Light: | single acting hydraulic ram,hydraulic oil cylinder |

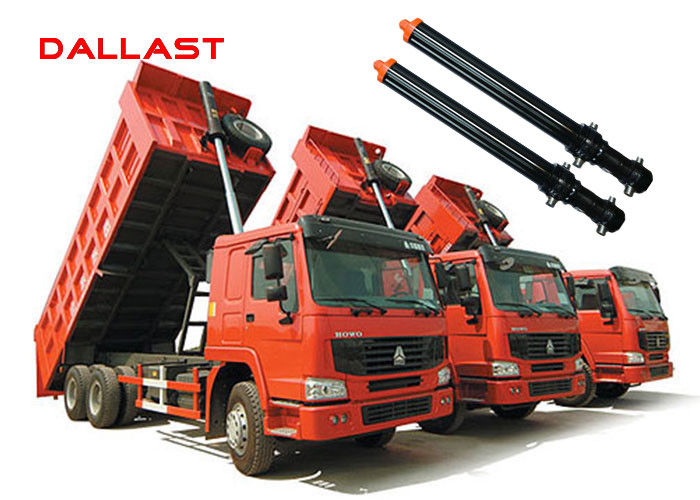

Hyva Type Single Acting Lift Telescopic Hydraulic Cylinders for Dump Truck
Specifications:
Single - acting Telescopic Hydraulic Cylinders for Dump Trucks
Max Lifting: 29T
Pressure: 16 Mpa
Seal height: 1675mm
Tanker: 58 - 67L
Compartment: 5200 - 6400mm
Rear overhang: 800mm
Lifting angle: 48° - 52°
We are manufacturing various kinds of hydraulic cylinders like:
1. Double Acting Hydraulic cylinders
2. Telescopic Cylinders
3. Piston Hydraulic cylinders
4. Single-acting cylinder
This product is used in numerous application including:
1. Dump truck,
2. Pump trucks,
3. Truck mounted crane,
4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders.
The information about our company:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.
We have technology terms and can design drawing according to provided information for your review.
We are solding our products to nearly the whole global.
Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
your inquiry.Thank you!
Parameters:
Hyva Type Single Acting Lift Telescopic Hydraulic Cylinders for Dump Truck | |
To get an immediate quotation,please provide us with the following necessary parameters: |
1) Bore diameter 2) Piston rod diameter 3) Stroke length 4) Working pressure 5) Mounting method |
Features | Single Acting Telescopic Hydraulic Cylinder |
Bore Diameter | 2'-60'/50 -1500mm |
Rod Diameter | 1' - 60'/25 -1500 mm |
Wall Thickness | 0.1'- 4'/3 -100 mm |
Max Stroke | 366'/10000 mm |
Max Pressure | 9600 psi/600 bar |
Test Pressure | 14500 psi/1000 bar |
Material | 20#,40#,45#,16Mn,27SiMn,etc |
Seal Kits | Hallite,Parker,NOK,SKF,DICHTOMATIK,Trelleborg,Merkel,etc |
Diamensional Accuracy | H7-H11 |
Bore Roughness | Ra 0.4 -1.6mm |
Coating | Hard chrome |
Purpose | Construction,metallurgical,mining,agricultural,forestry machinery,etc |
OEM | Yes |
MOQ | 1 Piece |
Certificates |
Gs, RoHS, Ce, ISO9001 |
Origin | Shandong, China |
Color | Any Color |
FAQ:
1. Does your products come with a warranty?
Yes, we have one year warranty. During the period,we can send you replacement free of charge if there is quality problem.
2. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.
3. Can I get samples to test before starting cooperation?
Of course.We would like produce sample hydraulic cylinder for your confirmation.
4. How many days will samples be finished?
Generally 5-7 days for samples making.
5. I want to see your hydraulic cylinders,where is your factory?
Our factory is located in Qingdao City,Shandong Province.
6. What’s your cylinder PPM?
5000 PPM. We do 100% inspection before delivery.

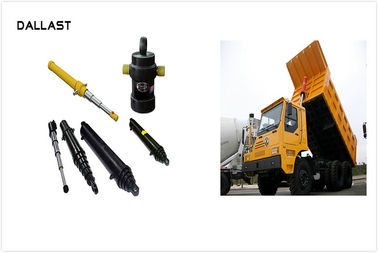

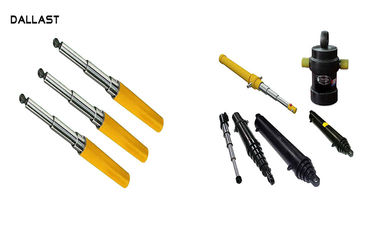

Product Show:
