| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Material: | Alloy Steel,Carbon Steel,27SiMn | Mounting Type: | Middle Trunnion |
|---|---|---|---|
| Usage: | Agricultural Vehicles ,Tricycle ,Dump Truck,Sanitation Car | Bore Diameter: | 110mm |
| Working Pressure: | 16-21MPa | Size: | Customized |
| High Light: | telescopic hydraulic ram,custom hydraulic cylinders |
||

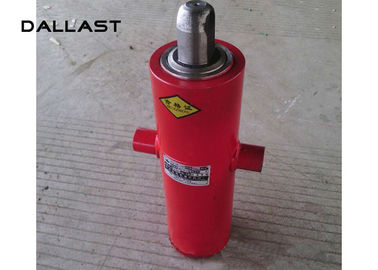

Name:Rollover cylinder telescopic hydraulic cylinder for side dumper truck
DALLAST specializing in the product hydraulic cylinder of various vehicles and equipment, and all kinds of piston hydraulic cylinder. TG Vehicle sleeve cylinder main 110 series, with the following specifications:

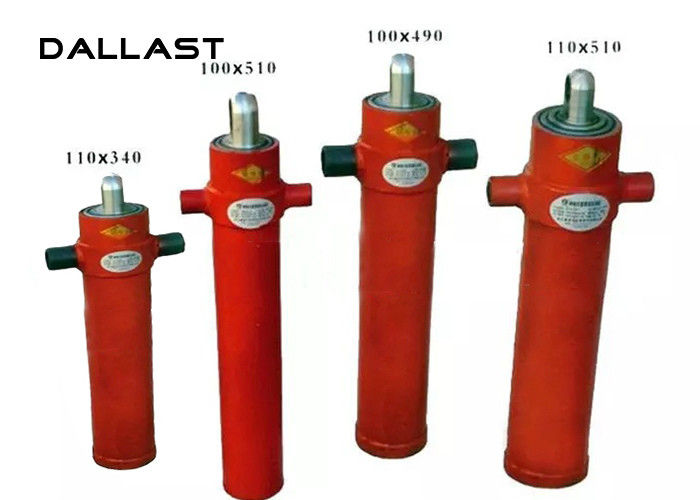

110 * 550,110 * 510,110 * 500,110 * 475,110 * 450,110 * 420,110 * 375,110 * 340,110 * 300 , 90 * 450.
110 * 375 is two stage sleeve car cylinder, it is matching with garbage truck . The total length of 750MM, trunnion diameter of 50,the installation from the center of trunnion to pin hole center is150mm, the inlet port in the trunnion, the thread size M20 * 1.5. Latching hole 30mm.
Cylinder custom-made parameters
| Model | Pressure(MPa) | Bore Diameter(mm) | Stroke(mm) |
| 110mmx550mm | 16 | 110 | 550 |
| 110mmx510mm | 16 | 110 | 510 |
| 110mmx500mm | 16 | 110 | 500 |
| 110mmx475mm | 16 | 110 | 475 |
| 110mmx450mm | 16 | 110 | 450 |
| 110mmx420mm | 16 | 110 | 420 |
| 110mmx375mm | 16 | 110 | 375 |
| 110mmx340mm | 16 | 110 | 340 |
| 110mmx300mm | 16 | 110 | 300 |
| 90mmx450mm | 16 | 90 | 450 |
