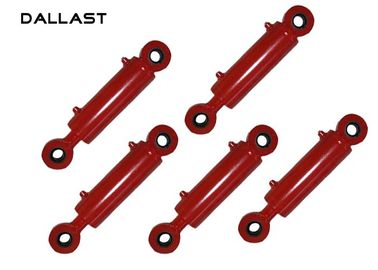

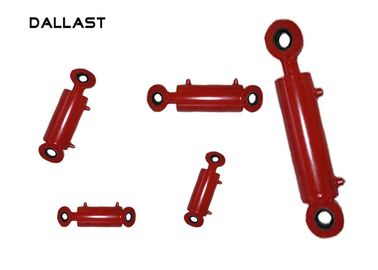

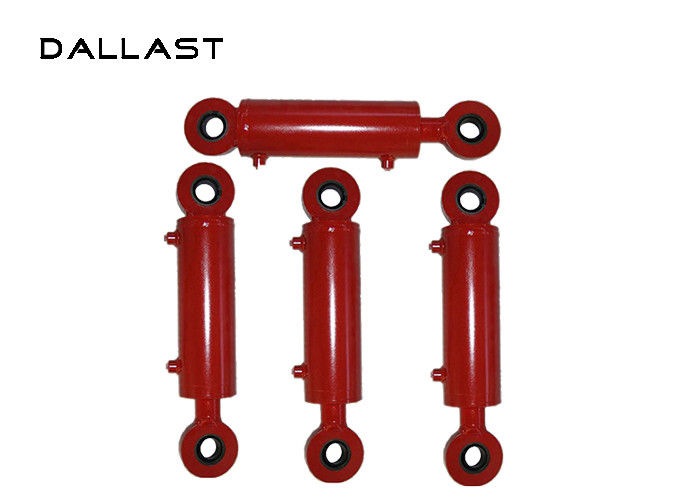

Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn

Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn

    • Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn
    • Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn
    • Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn
  • Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Service: After-sale Service Maximum Stroke: Requirements
    Shaft Diameter: 20-400 Mm Place Of Origin: Shandong
    Rod Clevis: Ductile Iron Seals: Hallite, NOK
    High Light:

    double acting hydraulic ram

    ,

    double rod hydraulic cylinder



    Double Acting Hydraulic Ram Garbage Truck Station With Piston 27 Simn



    Garbage truck cylinder is widely used in various types of compression sanitation garbage truck hydraulic system. The series of hydraulic cylinders include push plate oil cylinder, slide oil cylinder, scraper cylinder, lifting oil cylinder, etc. The push plate oil cylinder is a double action multi-stage telescopic sleeve hydraulic cylinder, and the oil inlet and outlet are all arranged in the rod end. The series oil cylinder is reasonable in structure, reliable in operation, convenient in assembly and disassembly, and easy in maintenance. According to the special needs of users and technical parameters for special design.





    Name Description
    Barrel Seamless forged tube
    Base Welded, screwed, bolts, tie rod
    Head Connected by threading, bolts, tie rod
    Piston Machined with grooves, can be single acting or double acting
    Piston rod High telerance, hard chrome plated, cold rolled steel
    Seals Hallite, NOK, Parker, Merkel



    Sanitation vehicles hydraulic cylinder are widely used in various types of compression sanitation garbage truck hydraulic system. This series of cylinders include push plate cylinder, sliding cylinder, scraper cylinder, lifting cylinder and so on. Pull-push cylinder which is a double-acting multi-stage telescopic sleeve hydraulic cylinder, out of the oil ports are located in the rod end. The series cylinder structure is reasonable, reliable, easy assembly and disassembly, easy maintenance. Another special requirements according to user needs and technical parameters for special design.

    According to user requirements, design and manufacture of this series of derivative products.

    The special designs are also available according to the user requirement and special technical parameters.



    Product Range details:

    Tube Seal—O-Ring with anti-exthusion backup washer

    Tie Rod—High tensile steel

    Piston Rod—Chrome Plated C1045 Steel

    Rod Clevi—Ductile iron

    End Caps—High Grade Iron/ Casting Seel

    Piston—High grade ductile iron, precision machined

    Piston Wear Ring—Glass filled nylon Wear Ring/ Urethane Seal

    Rod Wiper—Metal encased nitrile rubber/Polyurethane Snap In

    Rod Seal—Urethane/Customers Specified

    Ports—Nptf for 2T, SAE ORB 3T

    Paint Color--- Seni-gloss black, Grey, Red or other customized colors

    Mounting Style—Pins And Clips Included/ Pin eye mounting on both ends/ Cross Tube



    Hydraulic cylinder common problem:

    1. User improper operation caused by cylinder deformation. Cabin in the lifting or lowering work violently shaking or overturning, so that the cylinder was a strong impact, causing the cylinder deformation or bending

    2. Barrel strain.

    3. due to unreasonable design, so that the top of the cylinder work, and the carriage interference caused by the cylinder strain

    4. Cylinder trunnion and bracket hole with the gap is too large (2 mm) caused by the top cylinder partial load caused by bar strain.

    5. Cylinder head nut loose caused by the top cylinder cover scratches the barrel caused by strain.
