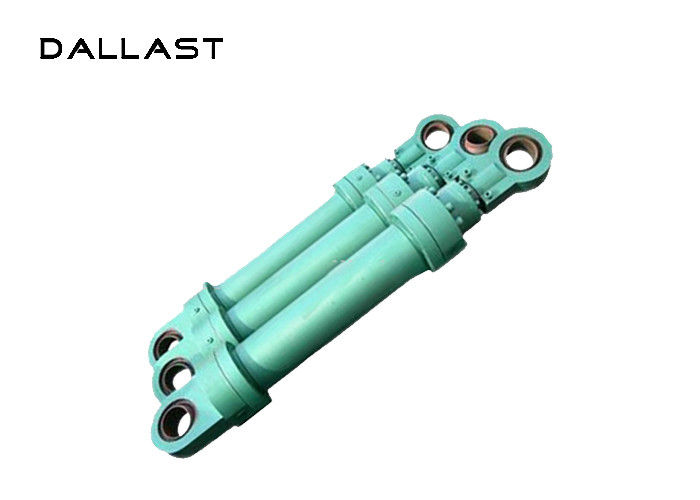

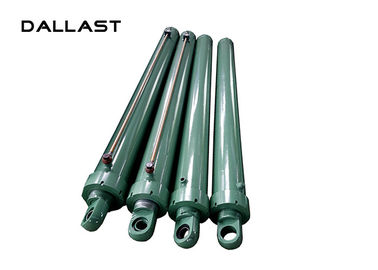

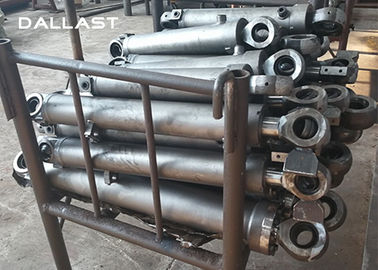

High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder

High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder

    • High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder
    • High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder
    • High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder
  • High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Body Material: Stainless Steel Model Number: OEM
    Factory Visit: Available Service: After-sale Service
    Maximum Stroke: Requirements Shaft Diameter: 20-400 Mm
    High Light:

    double acting hydraulic ram

    ,

    double rod hydraulic cylinder



    High Press High Pressure Hydraulic Cylinder , Heavy Duty Hydraulic Cylinder





    Double Acting Hydrulic Cylinder
    ( we produce as per client’s drawing or design with technical requirements.)



    Application: Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
    Stroke: 50mm to 16000mm
    structure piston cylinder
    Bore: 40mm to 1000mm ( 1 ½’’ – 40’’)
    warranty time 1 year
    Shaft: 12mm to 500mm ( ½’’ -20’’)
    Work pressure: 16Mpa to 70Mpa
    Seal: Hallite, Parker, Merkel,
    Paint: customer
    Certificate: ABS, Lloyds, SGS, etc.
    Package: Bubble-wrap packing, then in wooden case.



    Processing and inspection:

    1. Cylinder Tube
    According to the work pressure,work temperature,work situation and other special requirements,different cylinder tube will be choosed.
    A. Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged tube.
    B. Tube Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc.
    C. Surface Roughness:R0.16-0.32μm
    D. Inside Chromating:If necessary,inside tube will be chromated.

    2. Piston Rod
    A. Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.
    B. Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre.

    3. Seal Kits
    According to customers' requirements and work condition,we will choose suitable seal kits,including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple repairing.

    4. Inspection and Testing
    A. We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector.
    B. Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .After hydraulic cylinder is assemblied , pressure test would be carried out one by one.We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.



    Not only we could manufacture all kinds of OEM hydraulic cylinders according to the drawing from our customers,but also we could make a design according to customer's requirements.If you require our engineer to make a design,pls advise us the following specification:

    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example chromating film thickness , Surface hardness etc .
    11. Painting and other spare parts requirements .
