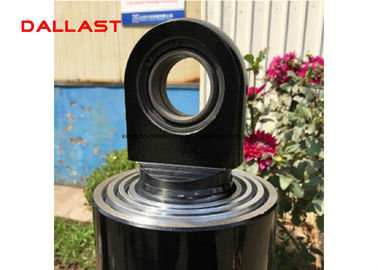

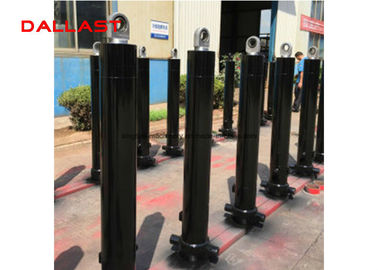

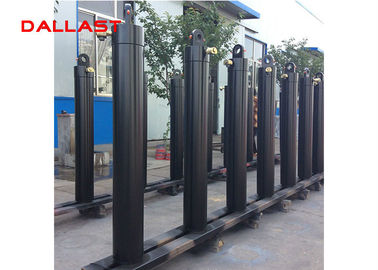

Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper

Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper

    • Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper
    • Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper
    • Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper
    • Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper
  • Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Application: Dump Truck, Tipper, Trailer Material: Alloy Steel,Carbon Steel,27SiMn
    Mounting Type: FC/FE/FEE Power: Hydraulic
    Transport Package: Wooden Pallet And Seal Film Structure: Telescopic Cylinder
    High Light:

    dump truck hydraulic ram

    ,

    dump trailer hydraulic cylinder

    Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper



    Single acting hydraulics cylinders for dump truck is belong to automotive cylinder series.



    We specialize in design and manufacture hydraulic cylinders that are used in a variety of fields including:

    1. Construction Machinery cylinders : loaders, excavator, forklift, bulldozer, dumper, roller, crane etc.
    2. Metallurgical Machinery cylinders : decelerator, tile press etc.
    3. Mining Machinery cylinders : crasher, coal cutter etc.
    4. Agricultural & forestry machinery cylinders : soil preparation machine, harvester, weeder etc.

    The Hydraulic cylinder Featuers:

    •  Big lifting force:Adopt high strength imported materials, work under pressure up to 22 MPa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.
    •  High security: excellent structural design ensure the oil cylinder lift smoothly, improve safety operation and create the most valuable security guarantee for the user;
    •  Stronger weather resistance:The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
    •  Best performance:excellent performance product and longer lifetime brings visible benefit and no worries



    HS Code 8412210000
    Seal Hallite,SKF,NOK,Guarnitec,Parker
    Coating All tubes are chrome plated
    Working pressure 16MP, 18MP or 22MP for your selection
    Stroke 3000mm-12000mm
    Color Red black blue gray,or according to customer's requirements

    Mounting type

    Earring-trunnion, double trunnion, double earring,or per customer's request

    Warranty One year after receive goods
    Delivery time 20- 25 days after payment



    Our Common Front End Hydraulic Cylinder List:

    FE Type hydraulic cylinder
    Model Stage Largest Stage Diameter Stroke Mounting distance
    (mm) (mm) (mm)
    FE-3-110-3205 3 110 3205 1449
    FE-3-110-3460 3 110 3460 1609
    FE-3-129-3460 3 129 3460 1449
    FE-3-129-3880 3 129 3880 1609
    FE-3-149-2900 3 149 2900 1320
    FE-3-149-3200 3 149 3200 1420
    FE-3-149-3500 3 149 3500 1520
    FE-3-149-3880 3 149 3880 1644
    FE-4-149-4280 4 149 4280 1450
    FE-4-149-4940 4 149 4940 1529
    FE-4-149-4620 4 149 4620 1484
    FE-4-169-4280 4 169 4280 1394
    FE-4-169-4450 4 169 4450 1437
    FE-4-169-4620 4 169 4620 1479
    FE-4-169-4940 4 169 4940 1529
    FE-4-169-5000 4 169 5000 1574
    FE-4-169-5180 4 169 5180 1604
    FE-5-169-5355 5 169 5355 1394
    FE-5-169-5780 5 169 5780 1559
    FE-5-169-6180 5 169 6180 1527
    FE-5-169-6480 5 169 6480 1604
    FE-5-169-6830 5 169 6830 1674
    FE-5-169-7130 5 169 7130 1769
    FE-5-191-6180 5 191 6180 1527
    FE-5-191-9030 5 191 9030 2177
    FE-6-191-7420 6 191 7420 1677
    FE-5-214-6830 5 214 6830 1662
    FE-5-214-7130 5 214 7130 1722
    FE Type Hydraulic Cylinder
    Model Lifting capacity Rated pressure Bore diameter
    (Ton) (MPa) (mm)
    FE-3-E158*3880 31.4 16 158/136/115
    FE-3-E158*4090 31.4 16 158/136/115
    FE-4-E158*4280 31.4 16 158/136/115/95
    FE-4-E158*4650 31.4 16 158/136/115/95
    FE-4-E158*4940 31.4 16 158/136/115/95
    FE-4-E175*4280 48 20 175/158/136/115
    FE-4-E175*4620 48 20 175/158/136/115
    FE-4-E175*5180 48 20 175/158/136/115
    FE-5-E175*5780 48 20 175/158/136/115/95
    FE-5-E175*6180 48 20 175/158/136/115/95
    FE-6-E175*6060 48 20 175/158/136/115/95/70
    FE-6-E175*6060 48 20 175/158/136/115/95/70
    FE-5-E200*6180 62.8 20 200/175/158/136/115
    FE-5-E200*6350 62.8 20 200/175/158/136/115

    Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper

    Telescopic 3 / 4 / 5 Stage Lifting Hydraulic Oil Cylinder for Dumper Tipper
