| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 50000PCS per year |
| Installation Form: | FC FE | Coating: | Chrome Plated |
|---|---|---|---|
| Material: | Alloy Steel,Carbon Steel,27SiMn | HS Code: | 8412210000 |
| Bore Size: | 40mm To 800mm | Stroke: | Max. 12000mm |
| High Light: | single acting hydraulic ram,single acting telescopic hydraulic cylinders |
||

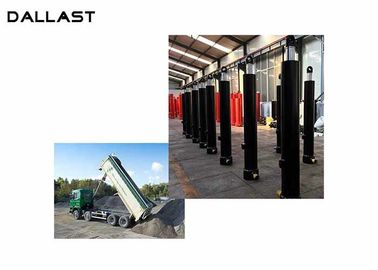

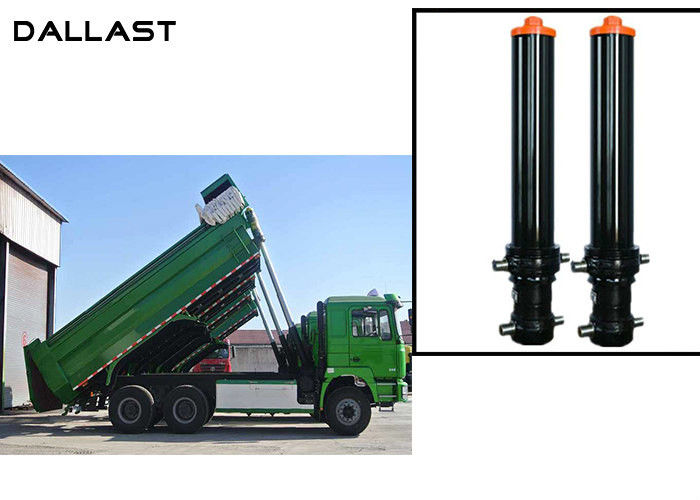

FC FE Single Acting Hydraulic Cylinder Telescopic Stages Heavy Lift Dump Truck
We being a quality driven company, makes sure that only the high grade range of Industrial Hydraulic Cylinder is manufactured, supplied, exported, wholesaled and distributed by us. Besides, we also offer effectual services for the same. Our range can be availed in 15 varied styles of mountings that are also customized on special demands of our clients.
We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders like Hydraulic Cylinder for Automotive, Hydraulic Cylinder for Heavy Machinery, Hydraulic Cylinder for Earthmoving Equipments, Telescopic Hydraulic Cylinder, Hydraulic Cylinder for Cement Plants and many more items with effective time delivery to our customers.
| Application | Dump truck, Tipper, Trailer |
| Seal | Hallite,SKF,NOK,Guarnitec,Parker |
| Temperature | -30ºC~100ºC |
| Working pressure | 16mpa-32mpa |
| Color | Any color you request |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Warranty | One year after shipping arrival |
| Delivery time | 20- 25 days after down payment |
| FE Type hydraulic cylinder | ||||
| Model | Stage | Largest Stage Diameter | Mounting distance | Stroke |
| (mm) | (mm) | (mm) | ||
| FE-3-110-3205 | 3 | 110 | 1449 | 3205 |
| FE-3-110-3460 | 3 | 110 | 1609 | 3460 |
| FE-3-129-3460 | 3 | 129 | 1449 | 3460 |
| FE-3-129-3880 | 3 | 129 | 1609 | 3880 |
| FE-3-149-2900 | 3 | 149 | 1320 | 2900 |
| FE-3-149-3200 | 3 | 149 | 1420 | 3200 |
| FE-3-149-3500 | 3 | 149 | 1520 | 3500 |
| FE-3-149-3880 | 3 | 149 | 1644 | 3880 |
| FE-4-149-4280 | 4 | 149 | 1450 | 4280 |
| FE-4-149-4940 | 4 | 149 | 1529 | 4940 |
| FE-4-149-4620 | 4 | 149 | 1484 | 4620 |
| FE-4-169-4280 | 4 | 169 | 1394 | 4280 |
| FE-4-169-4450 | 4 | 169 | 1437 | 4450 |
| FE-4-169-4620 | 4 | 169 | 1479 | 4620 |
| FE-4-169-4940 | 4 | 169 | 1529 | 4940 |
| FE-4-169-5000 | 4 | 169 | 1574 | 5000 |
| FE-4-169-5180 | 4 | 169 | 1604 | 5180 |
| FE-5-169-5355 | 5 | 169 | 1394 | 5355 |
| FE-5-169-5780 | 5 | 169 | 1559 | 5780 |
| FE-5-169-6180 | 5 | 169 | 1527 | 6180 |
| FE-5-169-6480 | 5 | 169 | 1604 | 6480 |
| FE-5-169-6830 | 5 | 169 | 1674 | 6830 |
| FE-5-169-7130 | 5 | 169 | 1769 | 7130 |
| FE-5-191-6180 | 5 | 191 | 1527 | 6180 |
| FE-5-191-9030 | 5 | 191 | 2177 | 9030 |
| FE-6-191-7420 | 6 | 191 | 1677 | 7420 |
| FE-5-214-6830 | 5 | 214 | 1662 | 6830 |
| FE-5-214-7130 | 5 | 214 | 1722 | 7130 |
| MODEL NO. | Stroke | First Stage Diameter | Largest Sleeve OD | Mounting distance | Closed length |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| FC-3-107-2855 | 2855 | 107 | 152 | 311 | 1268 |
| FC-3-107-3115 | 3115 | 107 | 152 | 311 | 1368 |
| FC-3-107-3265 | 3265 | 107 | 152 | 311 | 1418 |
| FC-3-107-3415 | 3415 | 107 | 152 | 311 | 1468 |
| FC-3-107-3715 | 3715 | 107 | 152 | 311 | 1568 |
| FC-3-126-3230 | 3230 | 126 | 219 | 343 | 1403 |
| FC-3-126-3680 | 3680 | 126 | 219 | 343 | 1553 |
| FC-3-126-3830 | 3830 | 126 | 219 | 343 | 1603 |
| FC-3-126-4400 | 4400 | 126 | 219 | 343 | 1803 |
| FC-4-126-4145 | 4145 | 126 | 219 | 343 | 1357 |
| FC-4-126-4345 | 4345 | 126 | 219 | 343 | 1407 |
| FC-4-126-4545 | 4545 | 126 | 219 | 343 | 1457 |
| FC-4-126-4745 | 4745 | 126 | 219 | 343 | 1507 |
| FC-4-126-4945 | 4945 | 126 | 219 | 343 | 1557 |
| FC-4-126-5145 | 5145 | 126 | 219 | 343 | 1607 |
| FC-3-145-3230 | 3230 | 145 | 219 | 343 | 1403 |
| FC-3-145-3680 | 3680 | 145 | 219 | 343 | 1553 |
| FC-3-145-3830 | 3830 | 145 | 219 | 343 | 1603 |
| FC-4-145-4110 | 4110 | 145 | 219 | 343 | 1357 |
| FC-4-145-4310 | 4310 | 145 | 219 | 343 | 1407 |
| FC-4-145-4510 | 4510 | 145 | 219 | 343 | 1457 |
| FC-4-145-4710 | 4710 | 145 | 219 | 343 | 1507 |
| FC-4-145-4910 | 4910 | 145 | 219 | 343 | 1557 |
| FC-4-145-5110 | 5110 | 145 | 219 | 343 | 1607 |
| FC-4-145-5310 | 5310 | 145 | 219 | 343 | 1657 |
| FC-4-145-5865 | 5865 | 145 | 219 | 343 | 1807 |
| FC-5-145-4310 | 4310 | 145 | 219 | 343 | 1161 |
| FC-4-165-4110 | 4110 | 165 | 244 | 343 | 1347 |
| FC-4-165-4510 | 4510 | 165 | 244 | 343 | 1447 |
| FC-4-165-4710 | 4710 | 165 | 244 | 343 | 1497 |
| FC-4-165-4910 | 4910 | 165 | 244 | 343 | 1547 |
| FC-4-165-5110 | 5110 | 165 | 244 | 343 | 1597 |
| FC-4-165-5310 | 5310 | 165 | 244 | 343 | 1647 |
| FC-4-165-5865 | 5865 | 165 | 244 | 343 | 1797 |
| FC-5-165-5135 | 5135 | 165 | 244 | 343 | 1351 |
| FC-5-165-5385 | 5385 | 165 | 244 | 343 | 1401 |
| FC-5-165-5635 | 5635 | 165 | 244 | 343 | 1451 |
| FC-5-165-6135 | 6135 | 165 | 244 | 343 | 1551 |
| FC-5-165-6385 | 6385 | 165 | 244 | 343 | 1601 |
| FC-5-165-6825 | 6825 | 165 | 244 | 343 | 1701 |
| FC-5-165-7075 | 7075 | 165 | 244 | 343 | 1751 |
| FC-5-165-7325 | 7325 | 165 | 244 | 343 | 1801 |
| FC-5-165-7575 | 7575 | 165 | 244 | 343 | 1851 |
| FC-5-165-7825 | 7825 | 165 | 244 | 343 | 1901 |
| FC-5-165-8185 | 8185 | 165 | 244 | 343 | 2001 |
| FC-5-165-8435 | 8435 | 165 | 244 | 343 | 2051 |
| FC-5-187-5135 | 5135 | 187 | 244 | 343 | 1351 |
| FC-5-187-5385 | 5385 | 187 | 244 | 343 | 1401 |
| FC-5-187-5635 | 5635 | 187 | 244 | 343 | 1451 |
| FC-5-187-6135 | 6135 | 187 | 244 | 343 | 1551 |
| FC-5-187-6385 | 6385 | 187 | 244 | 343 | 1601 |
| FC-5-187-6825 | 6825 | 187 | 244 | 343 | 1701 |
| FC-5-187-7075 | 7075 | 187 | 244 | 343 | 1751 |
| FC-5-187-7325 | 7325 | 187 | 244 | 343 | 1801 |
| FC-5-187-7825 | 7825 | 187 | 244 | 343 | 1901 |
| FC-5-187-8185 | 8185 | 187 | 244 | 343 | 2001 |
| FC-5-187-8435 | 8435 | 187 | 244 | 343 | 2051 |
| FC-5-187-8935 | 8935 | 187 | 244 | 343 | 2151 |
| FC-5-187-9185 | 9185 | 187 | 244 | 343 | 2201 |
| FC-6-187-8790 | 8790 | 187 | 244 | 843 | 1805 |
| FC-6-187-9085 | 9085 | 187 | 244 | 343 | 1855 |
| FC-7-187-8535 | 8535 | 187 | 244 | 343 | 1559 |
| FC-5-210-6135 | 6135 | 210 | 273 | 343 | 1551 |
| FC-5-210-6825 | 6825 | 210 | 273 | 343 | 1701 |
| FC-5-210-7075 | 7075 | 210 | 273 | 343 | 1751 |
| FC-5-210-7325 | 7325 | 210 | 273 | 343 | 1801 |
| FC-5-210-7825 | 7825 | 210 | 273 | 343 | 1901 |
| FC-5-210-9185 | 9185 | 210 | 273 | 343 | 2201 |
| FC Type Hydraulic Cylinder | |||||
| MODEL NO. | Largest Stage Diameter | The largest sleeve OD | Stage | Stroke | Mounting distance |
| (mm) | (mm) | (mm) | (mm) | ||
| FC-3-110-3205 | 110 | 168 | 3 | 3205 | 343 |
| FC-3-110-3460 | 110 | 168 | 3 | 3460 | 343 |
| FC-3-129-2980 | 129 | 218 | 3 | 2980 | 343 |
| FC-3-129-3205 | 129 | 218 | 3 | 3205 | 343 |
| FC-3-129-3460 | 129 | 218 | 3 | 3460 | 343 |
| FC-3-129-3880 | 129 | 218 | 3 | 3880 | 343 |
| FC-3-129-4270 | 129 | 218 | 3 | 4270 | 343 |
| FC-4-129-4280 | 129 | 218 | 4 | 4280 | 343 |
| FC-4-129-4280 | 129 | 218 | 4 | 4280 | 343 |
| FC-4-129-5180 | 129 | 218 | 4 | 5180 | 343 |
| FC-4-149-3680 | 149 | 218 | 4 | 3680 | 343 |
| FC-4-149-3980 | 149 | 218 | 4 | 3980 | 343 |
| FC-4-149-4280 | 149 | 244 | 4 | 4280 | 343 |
| FC-4-149-4620 | 149 | 244 | 4 | 4620 | 343 |
| FC-4-149-4940 | 149 | 244 | 4 | 4940 | 343 |
| FC-4-149-5180 | 149 | 244 | 4 | 5180 | 343 |
| FC-4-149-5460 | 149 | 244 | 4 | 5460 | 343 |
| FC-4-169-4280 | 169 | 244 | 4 | 4280 | 343 |
| FC-4-169-4620 | 169 | 244 | 4 | 4620 | 343 |
| FC-4-169-4940 | 169 | 244 | 4 | 4940 | 343 |
| FC-4-169-5180 | 169 | 244 | 4 | 5180 | 343 |
| FC-4-169-5460 | 169 | 244 | 4 | 5460 | 343 |
| FC-5-169-5355 | 169 | 244 | 5 | 5355 | 343 |
| FC-5-169-5780 | 169 | 244 | 5 | 5780 | 343 |
| FC-5-169-6180 | 169 | 244 | 5 | 6180 | 343 |
| FC-5-169-6830 | 169 | 244 | 5 | 6830 | 343 |
| FC-5-169-7130 | 169 | 244 | 5 | 7130 | 343 |
| FC-5-169-7630 | 169 | 244 | 5 | 7630 | 343 |
| FC-5-169-8130 | 169 | 244 | 5 | 8130 | 343 |
| FC-5-169-9030 | 169 | 244 | 5 | 9030 | 343 |
| FC-5-169-9530 | 169 | 244 | 5 | 9530 | 343 |
| FC-4-191-5460 | 191 | 274 | 4 | 5460 | 343 |
| FC-5-191-5780 | 191 | 274 | 5 | 5780 | 343 |
| FC-5-191-6180 | 191 | 274 | 5 | 6180 | 343 |
| FC-5-191-7130 | 191 | 274 | 5 | 7130 | 343 |
| FC-5-191-7630 | 191 | 274 | 5 | 7630 | 343 |
| FC-5-191-8130 | 191 | 274 | 5 | 8130 | 343 |
| FC-5-191-9030 | 191 | 274 | 5 | 9030 | 343 |
| FC-5-191-9530 | 191 | 274 | 5 | 9530 | 343 |
| FC-5-214-7610 | 214 | 274 | 5 | 7610 | 343 |
| FC-5-214-9030 | 214 | 274 | 5 | 9030 | 343 |
