With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder

With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder

    • With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder
    • With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder
    • With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder
  • With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Certification: GS, RoHS, CE, ISO9001 Structure: Telescopic Sleeve Cylinder
    Acting Way: Single Acting Model Number: OEM
    Maximum Stroke: Requirements Factory Visit: Available
    High Light:

    dump truck telescopic cylinder

    ,

    dump trailer hydraulic cylinder

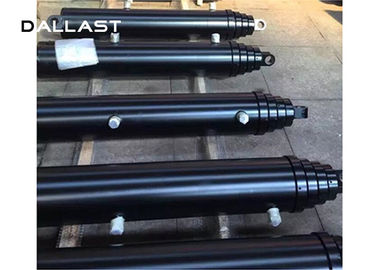

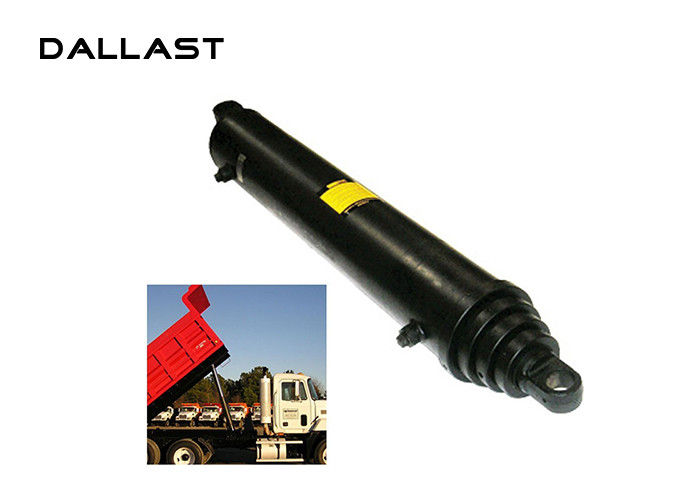

    With Piston Rod Single Acting Dump Truck Hydraulic Oil Cylinder



    Dallast series of products, larger bore, lifting stronger.

    Maximum working pressure M36PA, anti-high pressure capability.

    After special treatment of high-quality, high-precision 27SIMN seamless steel pipe, higher yield strength, unified procurement by the company to ensure product quality as one.

    Hinge up and down: the overall forging process.

    New sealing structure: high quality international famous brand seals to ensure that the cylinder will not leak oil under high pressure and harsh conditions.

    Parker and Custom Hoists Kind   3 Stage
    Model No. First Stage Diameter Stroke Closed Length Open Length
    3TG F5*72 5"

    72"

    (1829mm)

    37.19"

    (945mm)

    109.19"

    (2773mm)

    3TG F5*84 5''

    84"

    (2134mm)

    41.19"

    (1046mm)

    125.19"

    (3180mm)

    3TG F5*107 5"

    107.56"

    (2732mm)

    48.38"

    (1229mm)

    155.94"

    (3961mm)

    3TG F5*126 5"

    126.63"

    (3216mm)

    54.56"

    (1386mm)

    181.19"

    (4602mm)

    3TG F6*86 6"

    86.75"

    (2203mm)

    40.88"

    (1038mm)

    127.63"

    (3241mm)

    3TG F6*104 6"

    103.94"

    (2640mm)

    47"

    (1194mm)

    150.94"

    (3834mm)

    3TG F6*107 6"

    107.56"

    (2732mm)

    48.38"

    (1289mm)

    155.94"

    (3961mm)

    3TG F6*111 6''

    111"

    (2819mm)

    49.94"

    (1268mm)

    160.94"

    (4087mm)

    3TG F6*120 6''

    120"

    (3048mm)

    53.5"

    (1359mm)

    173.5"

    (4407mm)

    3TG F6*123 6''

    123"

    (3124mm)

    54.94"

    (1395mm)

    177.94"

    (4519mm)

    3TG F6*126 6''

    126.31"

    (3208mm)

    54.56"

    (1386mm)

    180.87"

    (4594mm)

    3TG F6*140 6''

    140.25"

    (3562mm)

    59.81"

    (1519mm)

    200.06"

    (5081mm)



    Specification

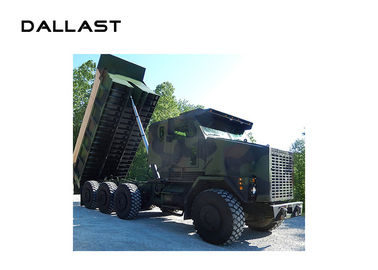

    Application: dump truck/tipprt/trailer/garbage truck

    Designed For: Single/double-acting

    Stage: 3~5 stage cylinder

    Max inner tube diameter: 170mm,180mm,195mm,200mm,210mm,etc.

    Mounting distance: 325mm/345mm/425mm

    Working Pressure: 16Mpa

    Stroke: 750mm~12000mm

    Tipping Weight: 35~68Ton

    Seal Type: Parker,NOK, BUSAK SHAMBAN or as customer's requirement

    Piston Rod: Chrome or nickel plated,ground & polished piston rod

    Tube: High tensile cold drawn tube, precision honed for extended seal life



    Type Max Min
    Cylinder bore 280 mm 10 mm
    Piston Rod Diameter 280 mm 10 mm
    Retract Length 3500 mm 50 mm
    Stretch Length(Single stage cylinder) 6500 mm 60 mm
    Stretch Length(Dual stage cylinder) 12500 mm 60 mm
    Working Pressure 36MPa 5Mpa
    Bore size 248mm 85mm



    Any interesting or inquiry, please feel free to contact, if you can provide the following information with your quotation, we will be very appreciated and offer you ASAP. Thanks for your cooperation.

    1. Hydraulic cylinder Data:

    a. Bore size:

    b. Stoke length:

    c. Rod Diameter:

    d. Mounting Type:

    e. Mounting length:

    d. paint color requirement:



    2. Application Data:

    a. Type of machine (loader, steer loader, excavator, etc.):

    b. Type of function (hoist, swing, steering, etc.):

    c. Type of structure (piston, telescopic):

    d. Single acting or double acting

    e. Operating Pressure:
