| Place of Origin: | Shandong China |
| Brand Name: | Dallast |
| Certification: | GS CE ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotation |
| Packaging Details: | Carton or According to Customer's Require |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability: | 50000 Pieces/Per year |
| Structure: | Telescopic Type | Body Material: | According To User Requirements |
|---|---|---|---|
| Model Number: | ODM | Heat Treatment: | Quenching |
| Acting Way: | Single Acting | Color: | Any Color |
| High Light: | telescopic hydraulic ram,custom hydraulic cylinders |
||

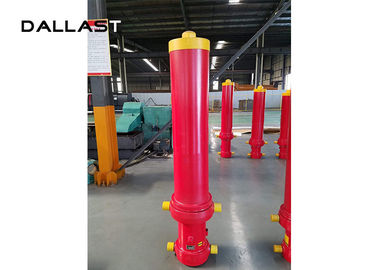

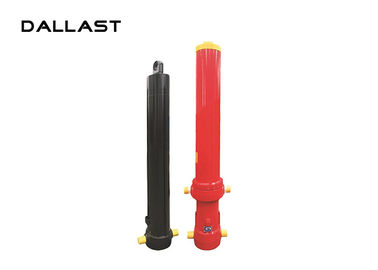

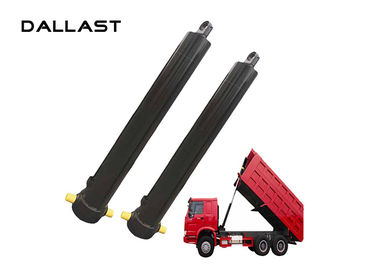

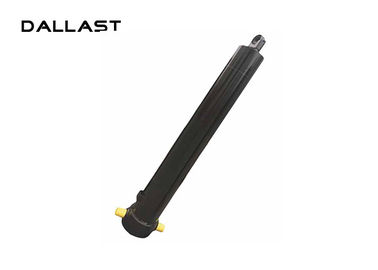

Heavy Telescopic Hydraulic Cylinder , Dump Trailer Hydraulic Cylinder Piston
Characteristics:
- Larger diameter, more lifting capacity.
- Max working pressure reaches 190 bar,better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.
- New model guide ring combined with lubricating material,guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.
| Designed For | Single-acting |
| Stage | 3~6stage cylinder |
| Max inner tube | 170mm,180mm,195mm,200mm,210mm,etc |
| Mounting distance | 325mm/345mm/425mm or as cutstomers’requirements |
| Working Pressure | 5Mpa-36Mpa |
| Stroke | 200mm-10000mm |
| Tipping Weight | 35-68Ton |
| Seal Type | as customer's requirement |
| Piston Rod | Chrome or nickel plated,ground & polished piston rod |
| Tube | High tensile cold drawn tube, precision honed for extended seal life |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
Specification:
| MODEL NO. | Stage | First Stage Diameter | Stroke | Closed length | Mounting distance |
| mm | mm | mm | mm | ||
| FC-3-107-2855 | 3 | 107 | 2855 | 1268 | 311 |
| FC-3-107-3115 | 3 | 107 | 3115 | 1368 | 311 |
| FC-3-107-3265 | 3 | 107 | 3265 | 1418 | 311 |
| FC-3-107-3415 | 3 | 107 | 3415 | 1468 | 311 |
| FC-3-107-3715 | 3 | 107 | 3715 | 1568 | 311 |
| FC-3-126-3230 | 3 | 126 | 3230 | 1403 | 343 |
| FC-3-126-3680 | 3 | 126 | 3680 | 1553 | 343 |
| FC-3-126-3830 | 3 | 126 | 3830 | 1603 | 343 |
| FC-3-126-4400 | 3 | 126 | 4400 | 1803 | 343 |
| FC-4-126-4145 | 4 | 126 | 4145 | 1357 | 343 |
| FC-4-126-4345 | 4 | 126 | 4345 | 1407 | 343 |
| FC-4-126-4545 | 4 | 126 | 4545 | 1457 | 343 |
| FC-4-126-4745 | 4 | 126 | 4745 | 1507 | 343 |
| FC-4-126-4945 | 4 | 126 | 4945 | 1557 | 343 |
| FC-4-126-5145 | 4 | 126 | 5145 | 1607 | 343 |
| FC-4-145-4110 | 4 | 145 | 4110 | 1357 | 343 |
| FC-4-145-4310 | 4 | 145 | 4310 | 1407 | 343 |
| FC-4-145-4510 | 4 | 145 | 4510 | 1457 | 343 |
| FC-4-145-4710 | 4 | 145 | 4710 | 1507 | 343 |
| FC-4-145-4910 | 4 | 145 | 4910 | 1557 | 343 |
| FC-4-145-5110 | 4 | 145 | 5110 | 1607 | 343 |
| FC-4-145-5310 | 4 | 145 | 5310 | 1657 | 343 |
| FC-4-145-5865 | 4 | 145 | 5865 | 1807 | 343 |
| FC-4-165-4110 | 4 | 165 | 4110 | 1347 | 343 |
| FC-4-165-4510 | 4 | 165 | 4510 | 1447 | 343 |
| FC-4-165-4710 | 4 | 165 | 4710 | 1497 | 343 |
| FC-4-165-4910 | 4 | 165 | 4910 | 1547 | 343 |
| FC-4-165-5110 | 4 | 165 | 5110 | 1597 | 343 |
| FC-4-165-5310 | 4 | 165 | 5310 | 1647 | 343 |
| FC-4-165-5865 | 4 | 165 | 5865 | 1797 | 343 |
| FC-5-165-5135 | 5 | 165 | 5135 | 1351 | 343 |
| FC-5-165-5385 | 5 | 165 | 5385 | 1401 | 343 |
| FC-5-165-5635 | 5 | 165 | 5635 | 1451 | 343 |
| FC-5-165-6135 | 5 | 165 | 6135 | 1551 | 343 |
| FC-5-165-6385 | 5 | 165 | 6385 | 1601 | 343 |
| FC-5-165-6825 | 5 | 165 | 6825 | 1701 | 343 |
| FC-5-165-7075 | 5 | 165 | 7075 | 1751 | 343 |
| FC-5-165-7325 | 5 | 165 | 7325 | 1801 | 343 |
| FC-5-165-7575 | 5 | 165 | 7575 | 1851 | 343 |
| FC-5-165-7825 | 5 | 165 | 7825 | 1901 | 343 |
| FC-5-165-8185 | 5 | 165 | 8185 | 2001 | 343 |
| FC-5-165-8435 | 5 | 165 | 8435 | 2051 | 343 |
| FC-5-187-5135 | 5 | 187 | 5135 | 1351 | 343 |
| FC-5-187-5385 | 5 | 187 | 5385 | 1401 | 343 |
| FC-5-187-5635 | 5 | 187 | 5635 | 1451 | 343 |
| FC-5-187-6135 | 5 | 187 | 6135 | 1551 | 343 |
| FC-5-187-6385 | 5 | 187 | 6385 | 1601 | 343 |
| FC-5-187-6825 | 5 | 187 | 6825 | 1701 | 343 |
| FC-5-187-7075 | 5 | 187 | 7075 | 1751 | 343 |
| FC-5-187-7325 | 5 | 187 | 7325 | 1801 | 343 |
| FC-5-187-7825 | 5 | 187 | 7825 | 1901 | 343 |
| FC-5-187-8185 | 5 | 187 | 8185 | 2001 | 343 |
| FC-5-187-8435 | 5 | 187 | 8435 | 2051 | 343 |
| FC-5-187-8935 | 5 | 187 | 8935 | 2151 | 343 |
| FC-5-187-9185 | 5 | 187 | 9185 | 2201 | 343 |
| FC-5-210-6135 | 5 | 210 | 6135 | 1551 | 343 |
| FC-5-210-6825 | 5 | 210 | 6825 | 1701 | 343 |
| FC-5-210-7075 | 5 | 210 | 7075 | 1751 | 343 |
| FC-5-210-7325 | 5 | 210 | 7325 | 1801 | 343 |
| FC-5-210-7825 | 5 | 210 | 7825 | 1901 | 343 |
| FC-5-210-9185 | 5 | 210 | 9185 | 2201 | 343 |
| Stage | Model | Largest Stage Diameter mm |
Stroke mm |
Mounting distance |
| 3 | FE-3-110-3205 | 110 | 3205 | 1449 |
| 3 | FE-3-110-3460 | 110 | 3460 | 1609 |
| 3 | FE-3-129-3460 | 129 | 3460 | 1449 |
| 3 | FE-3-129-3880 | 129 | 3880 | 1609 |
| 3 | FE-3-149-2900 | 149 | 2900 | 1320 |
| 3 | FE-3-149-3200 | 149 | 3200 | 1420 |
| 3 | FE-3-149-3500 | 149 | 3500 | 1520 |
| 3 | FE-3-149-3880 | 149 | 3880 | 1644 |
| 4 | FE-4-149-4280 | 149 | 4280 | 1450 |
| 4 | FE-4-149-4940 | 149 | 4940 | 1529 |
| 4 | FE-4-149-4620 | 149 | 4620 | 1484 |
| 4 | FE-4-169-4280 | 169 | 4280 | 1394 |
| 4 | FE-4-169-4450 | 169 | 4450 | 1437 |
| 4 | FE-4-169-4620 | 169 | 4620 | 1479 |
| 4 | FE-4-169-4940 | 169 | 4940 | 1529 |
| 4 | FE-4-169-5000 | 169 | 5000 | 1574 |
| 4 | FE-4-169-5180 | 169 | 5180 | 1604 |
| 5 | FE-5-169-5355 | 169 | 5355 | 1394 |
| 5 | FE-5-169-5780 | 169 | 5780 | 1559 |
| 5 | FE-5-169-6180 | 169 | 6180 | 1527 |
| 5 | FE-5-169-6480 | 169 | 6480 | 1604 |
| 5 | FE-5-169-6830 | 169 | 6830 | 1674 |
| 5 | FE-5-169-7130 | 169 | 7130 | 1769 |
| 5 | FE-5-191-6180 | 191 | 6180 | 1527 |
| 5 | FE-5-191-9030 | 191 | 9030 | 2177 |
| 5 | FE-5-214-6830 | 214 | 6830 | 1662 |
| 5 | FE-5-214-7130 | 214 | 7130 | 1722 |
Hydraulic cylinders are key to the movements of load handling equipment.
After a repeated number of cycles a certain amount of wear is to be expected, so we offer seal kits for maintenance of cylinders, giving your machine continued top performance and an extended life cycle.
Whether you need a replacement hydraulic cylinder to bring your machine back to life, or you simply need to replace a cylinder component we provide high quality and quick solutions. In case of accident replacement of complete cylinder is recommended over to guarantee cylinder performance which is comparable to a new cylinder. The replacement hydraulic cylinders are pressure tested to deliver constantly the highest quality spare parts
FAQ:
1. Q: How can I decide which model hydraulic cylinder to buy?
A: we can customize as per your requirements.
2. Q: Can I have a specification sheet of your hydraulic cylinder?
A: For sure.
3. Q: How long it will take from ordering to delivering?
A: Around 25 days, if any changes, we will inform you in advance.
4. Q: How about the warranty and after-sale service?
A: One year warranty, and we can offer you long-distance after-sale service 7*24h
5. Custom Hydraulic Cylinder
We can supply customized hydraulic cylinders with drawings or samples, or if you could provide following specification:
• diameter of bore & rod
• stroke
• mounting style
• mounting distance
• working pressure
• ports
• seals
