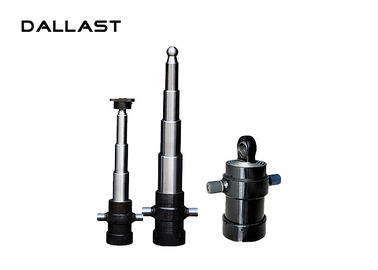

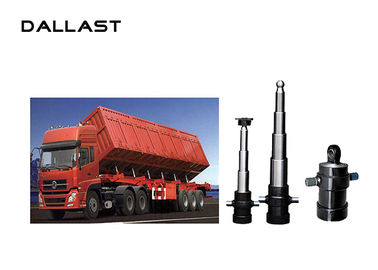

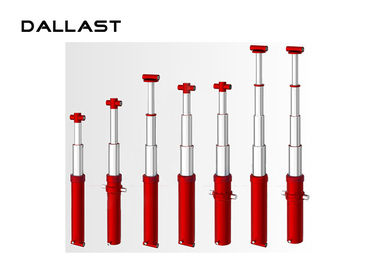

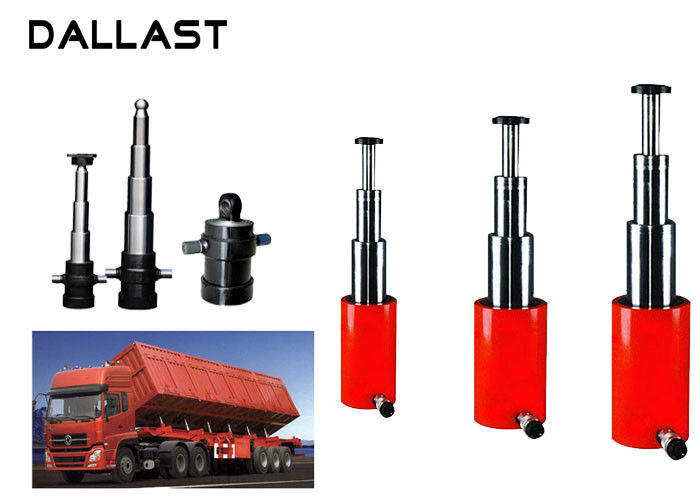

Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder

Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder

    • Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder
    • Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder
    • Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder
    • Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder
  • Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Usage: Side Dumper Working Medium: Hydraulic Oil
    Hardness: HRC 20-50 Seal: Parker Hallite Aston
    Body Material: Steel Color: As Customer's Requirement



    Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder







    The multi-stage hydraulic cylinder produced by our company has the advantages of compact layout, reasonable structure, reliable working, convenient assembly and disassembly, easy maintenance and is widely used in various construction machinery, mining machinery, hoisting and transport machinery, environmental protection machinery, traffic machinery (wrecker) ….

    The system hydraulic cylinder working pressure, working stroke, installation distance, the use of series, all levels of stroke and rod diameter and other parameters can be designed according to customer needs.



    Application Side dumper
    Material of cylinder tube Steel
    Working pressure 5MPa-36MPa
    Bore size 85mm-248mm
    capacity 7t-120t
    Stroke 300mm-8000mm
    Color As customer’s requirement
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 45# steel 27Simn
    Certification ISO9001
    Warranty 1 year



    Type:

    Model Rated pressure
    (MPa)
    Bore diameter
    (mm·)
    Installation distance
    (mm)
    Stroke
    (mm)
    Rated theoretical thrust
    First class Last class
    3TG-E110*300 16 110 260 900 150 60
    2TG-E110*510 16 110 140 1020 150 100
    3TG-E90*385 16 90 140 1155 100 30
    3TG-E90*340 16 90 140 1020 100 30
    3TG-E90*300 16 90 260 900 100 30
    3TG-E90*250 16 90 140 750 100 30
    2TG-E90*450 16 90 140 900 100 60
    2TG-E90*300 16 90 260 600 100 60
    2TG-E90*250 16 90 260 500 100 60
    3TG-E70*250 16 70 140 750 60 20



    QC:

    Good choice for our hydraulic cylinder
    1. With Rolling technology, the cylinder are straighter, the surface are harder and its quality are more durable.
    2. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid.
    3. Using imported materials for seal kits.
    4. The structure kits are made by high-strength Manganese plate
    5. Advanced surface treatment:
    A. Environmental automatically pipelined painting
    B. Cleaning with automatic washing machine
    C. Assembling in seal clean workshop





    FQA:

    1. Is your design reasonable?
    We have professional R&D team with rich design experience.
    We also establish strict but scientific product testing system so that products have perfect performance.

    2. How to choose which model hydraulic cylinder to buy?
    Please kindly send us your drawings, models or providing us your parameters and
    specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.

    3. How long it will take from ordering to delivering?
    It depends on the ordering quantity. Generally, we will take 15-30days. If there are any changes, we will inform you in time.



    4. Custom Hydraulic Cylinder

    We can supply customized hydraulic cylinders with drawings or samples, or if you could provide following specification:

    • diameter of bore & rod

    • stroke

    • mounting style

    • mounting distance

    • working pressure

    • ports

    • seals

    • special modifications

    Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder



    Multi stage Telescopic Hydraulic Cylinder For Press Side Dumper Hydraulic Chrome Cylinder
